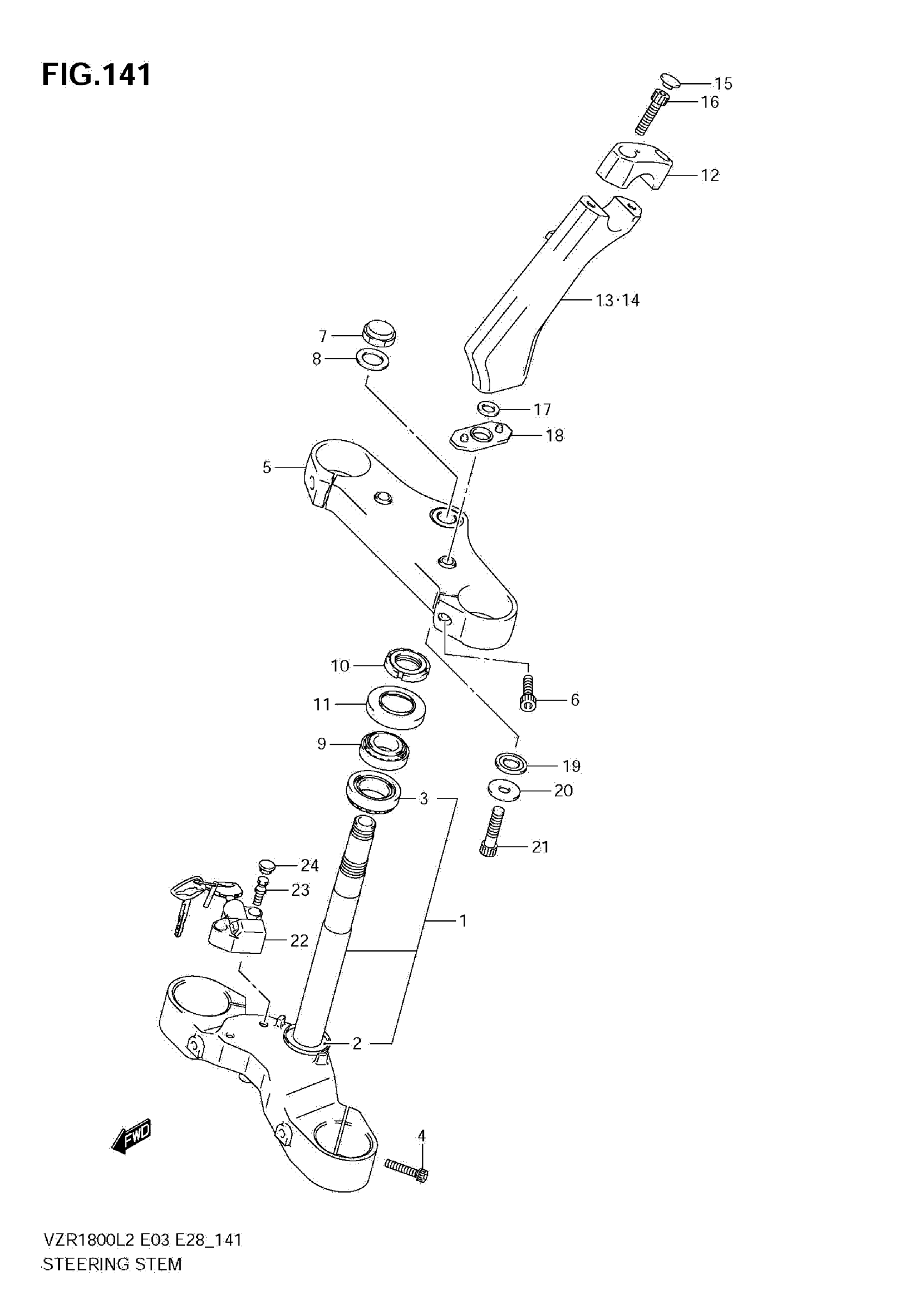

Suzuki VZR1800L2 (2012) STEERING STEM Diagram

#

Description
Price

1

BRACKET, UNDER

51410-48G00

Unavailable

2

SEAL, STEERING LOWER

51644-12C00

$9.44

3

BEARING (30X55X17)

09265-30020

$44.41

4

BOLT (8X40)

51328-44G10

$5.58

5

BRACKET, UPPER

51311-48G20

$625.47

6

BOLT

51321-44G10

Unavailable

7

NUT, STEM

51353-24B00

$30.67

8

WASHER, STEM

51356-10D03

$7.50

9

BEARING (25X47X15)

09265-25038

$45.57

10

NUT, STEERING STEM

51631-31F00

$19.87

11

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15

12

HOLDER, HANDLE

56211-48G10

$164.38

13

HOLDER, HANDLE RH

56224-48G20

$332.17

14

HOLDER, HANDLE LH

56225-48G20

$340.48

15

CAP (OD:14.5)

09250-06009

$3.42

16

BOLT (8X40)

51328-44G10

$5.58

17

WASHER

51354-48G00

$5.99

18

RUBBER, HANDLE HOLDER

56245-48G00

$9.42

19

RUBBER, HANDLE HOLDER

56245-39G20

$9.42

20

WASHER

51355-48G00

$9.67

21

BOLT

51226-48G00

$20.23

22

LOCK SET, STEERING

51900-48810

$175.18

23

SCREW, STEERING LOCK

51925-48G00

$8.05

24

PLUG, STEERING LOCK

51926-48G00

$4.68
