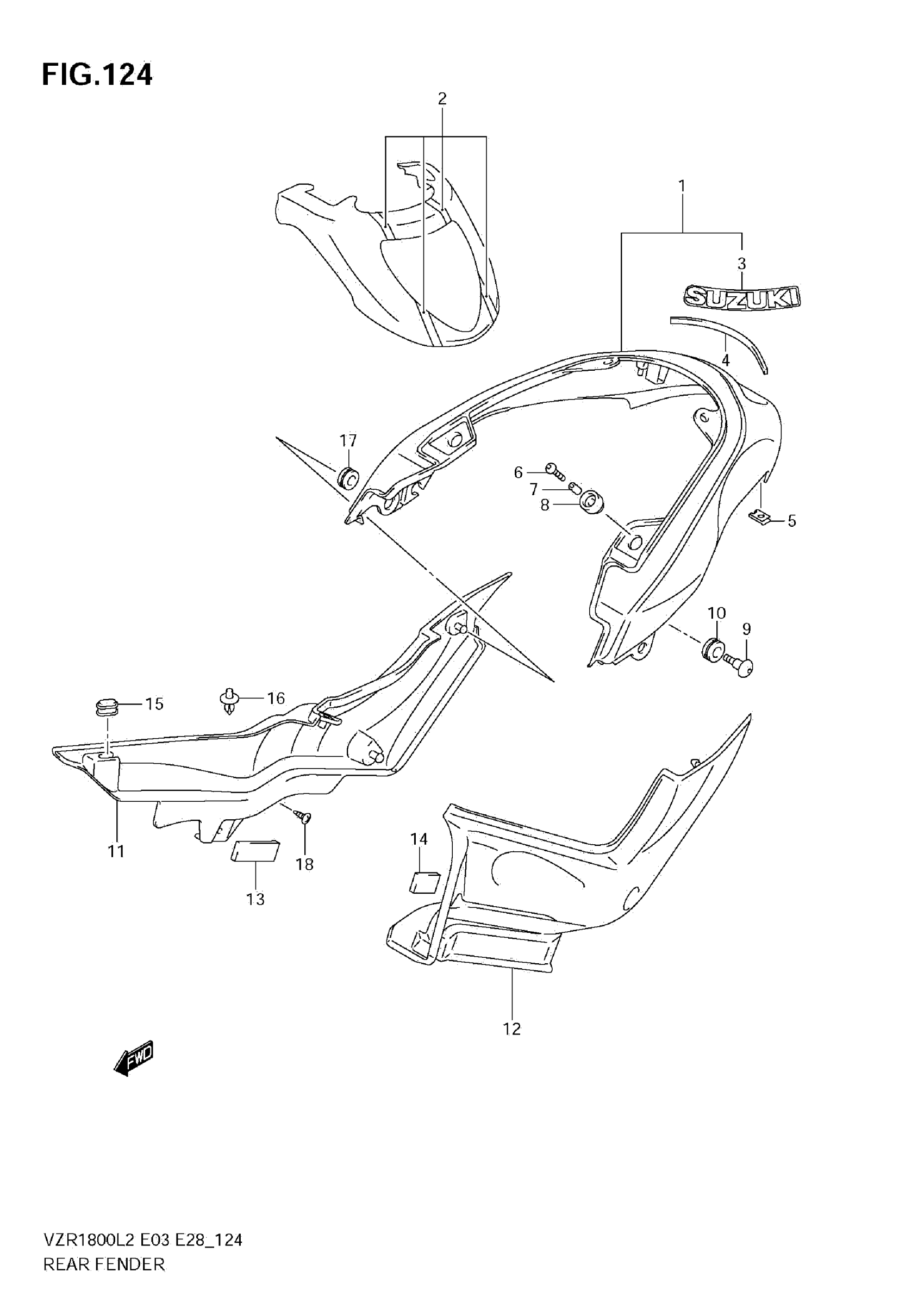

Suzuki VZR1800L2 (2012) REAR FENDER (VZR1800Z L2 E33) Diagram

#

Description
Price

1

FENDER, REAR (BLACK/ORANGE)

63110-48G50-JBA

$2,124.71

1

FENDER, REAR (BLUE/WHITE)

63110-48G50-GLR

Unavailable

2

TAPE SET (BLACK/ORANGE)

68170-48G50-JBA

$51.22

2

TAPE SET (BLUE/WHITE)

68170-48G50-GLR

Unavailable

3

EMBLEM (BLACK/ORANGE) | FOR JBA

68161-44GA0-JBA

Unavailable

3

EMBLEM (WHITE/GRAY) | FOR GLR

68161-44GA0-EGU

Unavailable

4

CUSHION

63117-39G00

$5.27

5

NUT COWL

94484-24F00

$3.63

6

SCREW (6X16)

09139-06139

$2.92

7

SPACER (6.5X10X9.4)

09180-06286

$2.53

8

CUSHION

09320-10045

$3.38

9

BOLT (6X20)

09139-06190

$3.77

10

CUSHION

09320-09016

$1.97

11

COVER, REAR FENDER RH (BLACK) | FOR JBA

63171-48G51-YVB

$278.97

11

COVER, REAR FENDER RH (BLUE) | FOR GLR

63171-48G51-YSF

Unavailable

12

COVER, REAR FENDER LH (BLACK) | FOR JBA

63181-48G51-YVB

$278.97

12

COVER, REAR FENDER LH (BLUE) | FOR GLR

63181-48G51-YSF

Unavailable

13

CUSHION, RH

15439-70G10

$4.90

14

CUSHION, LH

47161-19C00

$3.42

15

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.35

16

CLIP (BLACK)

09409-06314-5PK

$2.80

17

CUSHION

09320-08028

$2.80

18

SCREW

03541-0516A

$1.37
