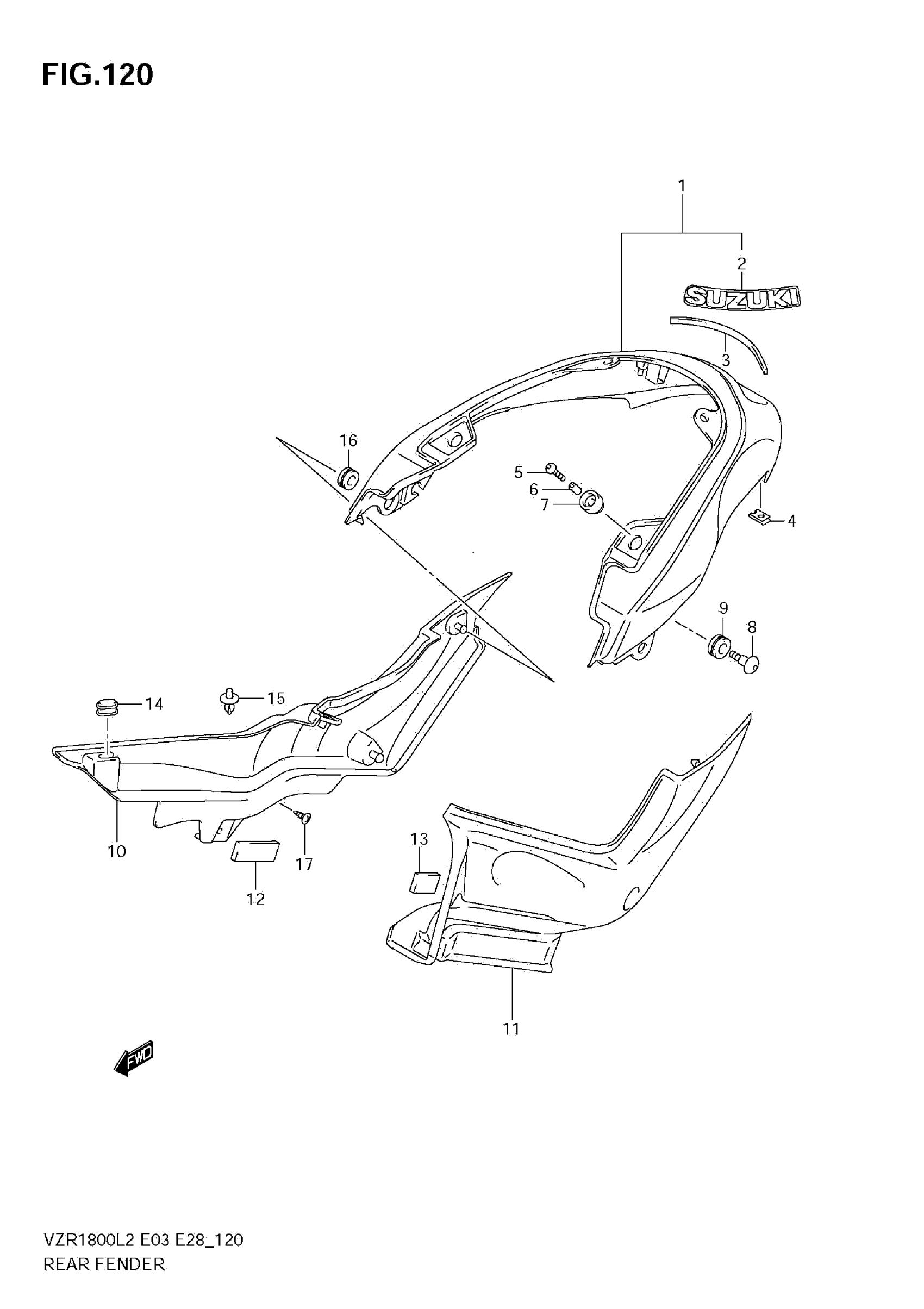

Suzuki VZR1800L2 (2012) REAR FENDER (VZR1800 L2 E28) Diagram

#

Description
Price

1

FENDER,REAR This part replaces 63110-48G00-YVB.

63110-48G01-YVB

$391.25

2

EMBLEM,"SUZUKI" This part replaces 68641-19F00-YD8.

68641-19F01-YD8

$9.70

3

CUSHION

63117-39G00

$5.27

4

NUT COWL

94484-24F00

$3.63

5

SCREW (6X16)

09139-06139

$2.92

6

SPACER (6.5X10X9.4)

09180-06286

$2.53

7

CUSHION

09320-10045

$3.38

8

BOLT (6X20)

09139-06190

$3.77

9

CUSHION

09320-09016

$1.97

10

COVER, REAR FENDER RH (BLACK)

63171-48G01-YVB

$200.50

11

COVER, REAR FENDER LH (BLACK)

63181-48G01-YVB

$200.50

12

CUSHION, RH

15439-70G10

$4.90

13

CUSHION, LH

47161-19C00

$3.42

14

CUSHION,FUEL TANK COVER This part replaces 44276-29G00.

44276-29G01

$3.35

15

CLIP (BLACK)

09409-06314-5PK

$2.80

16

CUSHION

09320-08028

$2.80

17

SCREW

03541-0516A

$1.37
