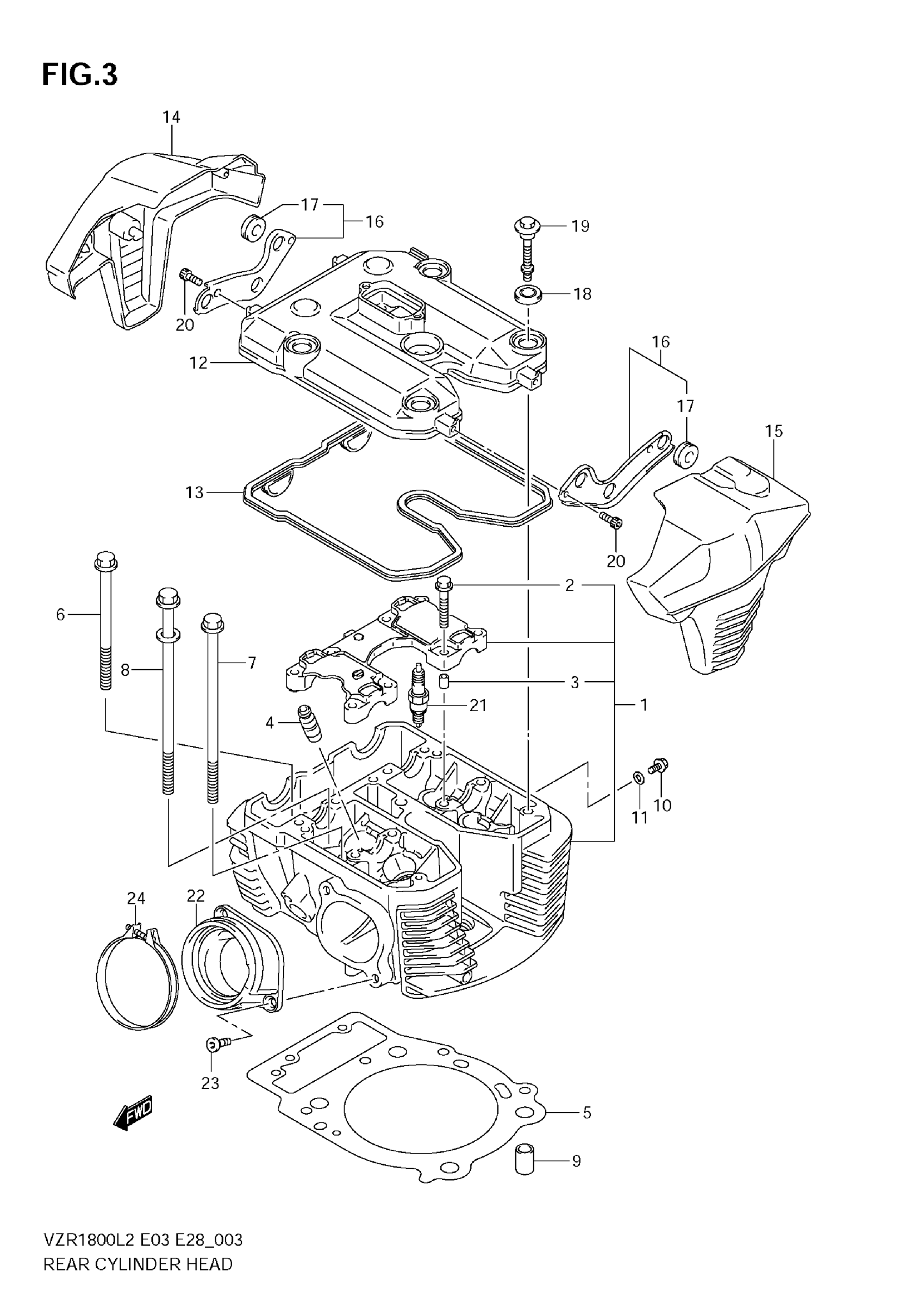

Suzuki VZR1800L2 (2012) REAR CYLINDER HEAD Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER REAR

11103-48G10

Unavailable

2

BOLT (6X39)

09103-06026

$1.98

3

PIN (8X11)

09206-08001

$1.78

4

GUIDE, VALVE (OS 0.3) | OPT

11115-65J00-001

$31.95

5

GASKET

11142-48G00

$54.12

6

BOLT (8X140)

09103-08305

$15.92

7

BOLT (8X180)

09103-08415

$11.60

8

BOLT (10X19)

09103-10396

$26.28

9

PIN

04211-13189

$2.19

10

BOLT (6X12)

09103-06222

$2.26

11

GASKET (5.8X13X1.2)

09168-06023

$2.35

12

COVER, CYLINDER HEAD

11170-48G00

Unavailable

13

GASKET

11173-48G00

$27.05

14

CAP, HEAD COVER NO.1

11174-48G00

$123.73

15

CAP, HEAD COVER NO.2

11175-48G00

$121.43

16

BRACKET,HEAD COVER CAP This part replaces 11180-48G00.

11180-48G01

$9.72

17

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

18

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

19

BOLT (6X52)

09111-06091

$22.83

20

BOLT

07130-0612A

$2.50

21

SPARK PLUG (NGK, CR8EK)

09482-00412

$10.62

21

SPARK PLUG (DENSO, U24ETR)

09482-00413

$13.17

21

SPARK PLUG (NGK, CR9EK) | OPT

09482-00410

$11.59

21

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

21

SPARK PLUG (NGK, CR7EK) | OPT

09482-00414

$12.50

21

SPARK PLUG (DENSO, U22ETR) | OPT

09482-00415

Unavailable

22

PIPE ASSY,INTAKE This part replaces 13101-48G00.

13101-48G01

$97.90

23

BOLT (6X20.5)

09120-06008

$3.05

24

CLAMP

13170-22H00

Unavailable
