Description

Price

1

LAMP ASSY, REAR COMB

35710-48G50

$410.97

2

WASHER (5.5X20X1.2)

09160-05501

$1.84

3

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

4

SCREW

03541-0512A

$1.49

5

LAMP ASSY, LICENSE This part replaces 35910-41G01.

35910-41G02

$73.97

6

LENS, LICENSE

35912-41G01

$13.28

7

GASKET

35913-41G00

$14.23

8

COVER, LICENSE LAMP

35917-41G00

$35.32

9

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

10

WASHER (6.5X20X1.2)

09160-06077

$1.91

11

SPACER (6.5X9X8)

09180-06261

$1.91

12

NUT

08316-1006A

$2.19

13

REFLECTOR ASSY, REAR SIDE

35970-07F01

$20.88

14

NUT

08316-1005A

$2.19

15

BRACKET, REAR SIDE RR RH

35975-48G00

Unavailable

16

BRACKET, REAR SIDE RR LH

35976-48G00

$7.42

17

SCREW

02162-0612A

$2.05

18

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$5.99

19

CLAMP (L:45)

09404-06429

$1.83

20

CLAMP

09404-10415

Unavailable

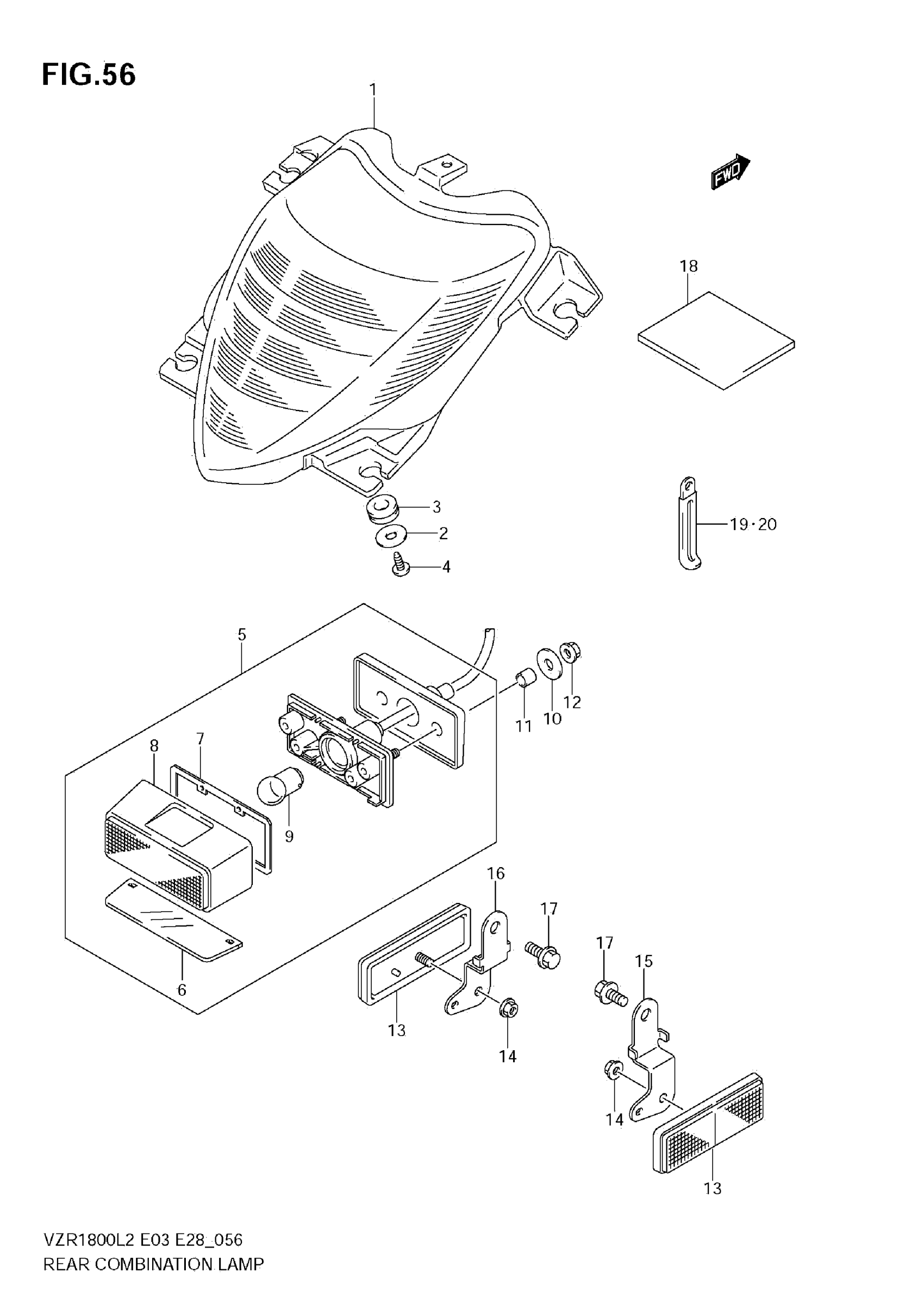

Suzuki VZR1800L2 (2012) REAR COMBINATION LAMP (VZR1800 L2 E33) Diagram

LAMP ASSY, REAR COMB

WASHER (5.5X20X1.2)

CUSHION This part replaces 09320-10054.

SCREW

LAMP ASSY, LICENSE This part replaces 35910-41G01.

LENS, LICENSE

GASKET

COVER, LICENSE LAMP

BULB (12V5W) This part replaces 09471-12140.

WASHER (6.5X20X1.2)

SPACER (6.5X9X8)

NUT

REFLECTOR ASSY, REAR SIDE

NUT

BRACKET, REAR SIDE RR RH

BRACKET, REAR SIDE RR LH

SCREW

CUSHION,HELMET BOX (60X60X3.0

CLAMP (L:45)

CLAMP
