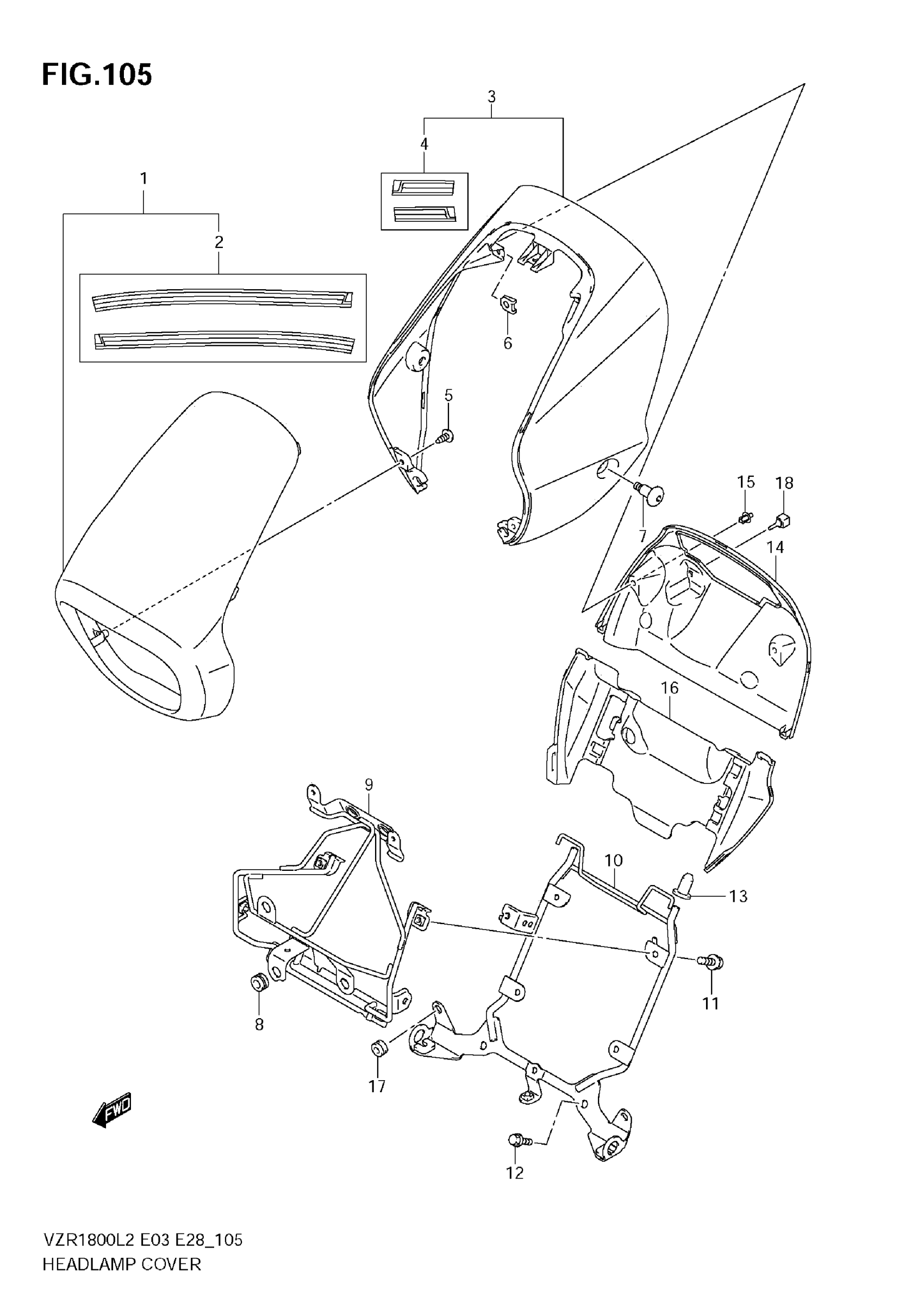

Suzuki VZR1800L2 (2012) HEADLAMP COVER (VZR1800Z L2 E33) Diagram

#

Description
Price

1

COVER,HEADLAMP (BLACK/ORANGE)

51810-48GC0-JBA

$539.21

1

COVER,HEADLAMP (BLUE/WHITE)

51810-48GC0-GLR

$646.31

2

TAPE SET (BLACK/ORANGE)

68720-48G70-JBA

Unavailable

2

TAPE SET (BLUE/WHITE)

68720-48G70-GLR

Unavailable

3

COVER, CENTER (BLACK/ORANGE)

51820-48GC0-JBA

$780.79

3

COVER, CENTER (BLUE/WHITE)

51820-48GC0-GLR

$780.79

4

TAPE SET (BLACK/ORANGE)

68720-48G80-JBA

$20.62

4

TAPE SET (BLUE/WHITE)

68720-48G80-GLR

Unavailable

5

SCREW

03541-0510A

$1.49

6

NUT (M5)

09148-05045

$2.36

7

SCREW (6X22)

09139-06191

$4.03

8

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

9

BRACE, HOUSING

51860-48GB0

$259.07

10

BRACE, COVER This part replaces 51850-48GB0.

51850-48GB1

$234.75

11

BOLT

01550-0612B

$2.39

12

BOLT (8X16)

01550-0816A

$2.32

13

CUSHION, BRACE

51831-21D00

$4.58

14

COVER, UPPER This part replaces 51831-48GB0.

51831-48GB1

$21.85

15

CLIP (BLACK)

09409-06314-5PK

$2.78

16

COVER, BRACKET

51841-48GB0

$24.37

17

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

18

CUSHION, COVER UPPER

51832-48GB0

$5.78
