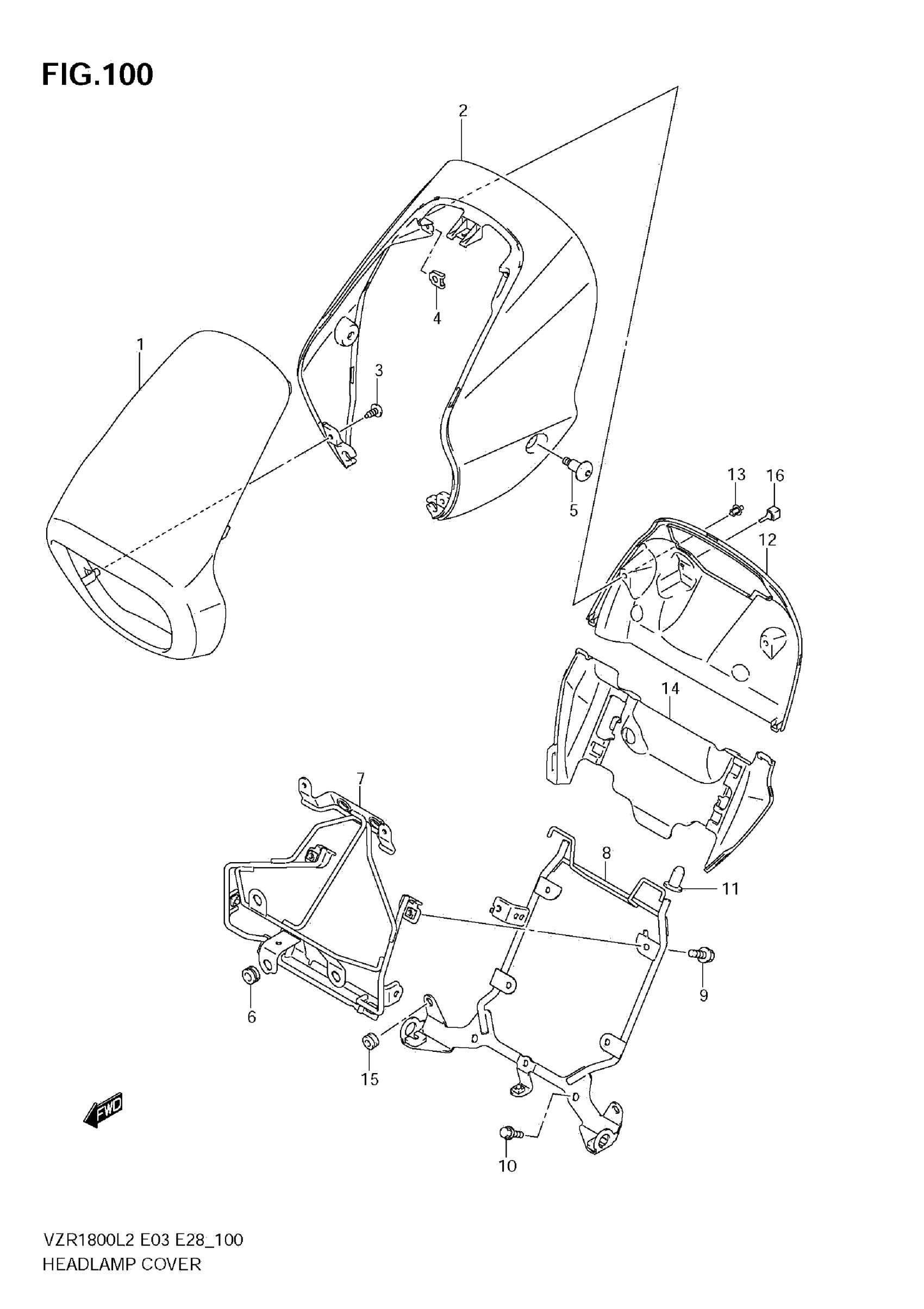

Suzuki VZR1800L2 (2012) HEADLAMP COVER (VZR1800 L2 E03) Diagram

COVER, HEADLAMP

51811-48GB0

$228.53

COVER, CENTER (BLACK)

51821-48GB0-YVB

$241.60

SCREW

03541-0510A

$1.49

NUT (M5)

09148-05045

$2.36

SCREW (6X22)

09139-06191

$4.03

.CUSHION (9X18X14) This part replaces 09320-09039.

09320-09059

$3.26

BRACE, HOUSING

51860-48GB0

$259.07

BRACE, COVER This part replaces 51850-48GB0.

51850-48GB1

$234.75

BOLT

01550-0612B

$2.39

BOLT (8X16)

01550-0816A

$2.32

CUSHION, BRACE

51831-21D00

$4.58

COVER, UPPER This part replaces 51831-48GB0.

51831-48GB1

$21.85

CLIP (BLACK)

09409-06314-5PK

$2.78

COVER, BRACKET

51841-48GB0

$24.37

CUSHION (6.5X14X6) This part replaces 09320-06016.

09320-06027

$2.10

CUSHION, COVER UPPER

51832-48GB0

$5.78
