Description

Price

1

TANK ASSY, FUEL (BLUE) | FOR GLR

44100-48GG0-YSF

Unavailable

1

TANK ASSY, FUEL (BLACK) | FOR JBA

44100-48GG0-YVB

Unavailable

2

CAP SET,FUEL TA This part replaces 44200-39830.

44200-39832

$110.37

3

EMBLEM, RH

68111-48G01

$70.02

4

EMBLEM, LH

68121-48G01

$71.38

5

SHIELD, TANK HEAT

44191-48G10

$336.25

6

TAPE

44192-48G00

$15.18

7

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

8

CUSHION | FRONT This part replaces 09329-10007.

09329-10026

$2.23

9

CUSHION, FUEL TANK

44541-13E10

$26.73

10

CLAMP (L:300)

09407-30402

$4.11

11

CLAMP(L:80) | SHIELD This part replaces 09404-06434.

09404-06036

$1.74

12

BRACKET, REAR

44530-48G10

$47.07

13

BOLT (6X20)

09116-06192

$2.30

14

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

15

WASHER

09169-06062

$2.50

16

BOLT (8X16) | REAR

01550-0816A

$2.32

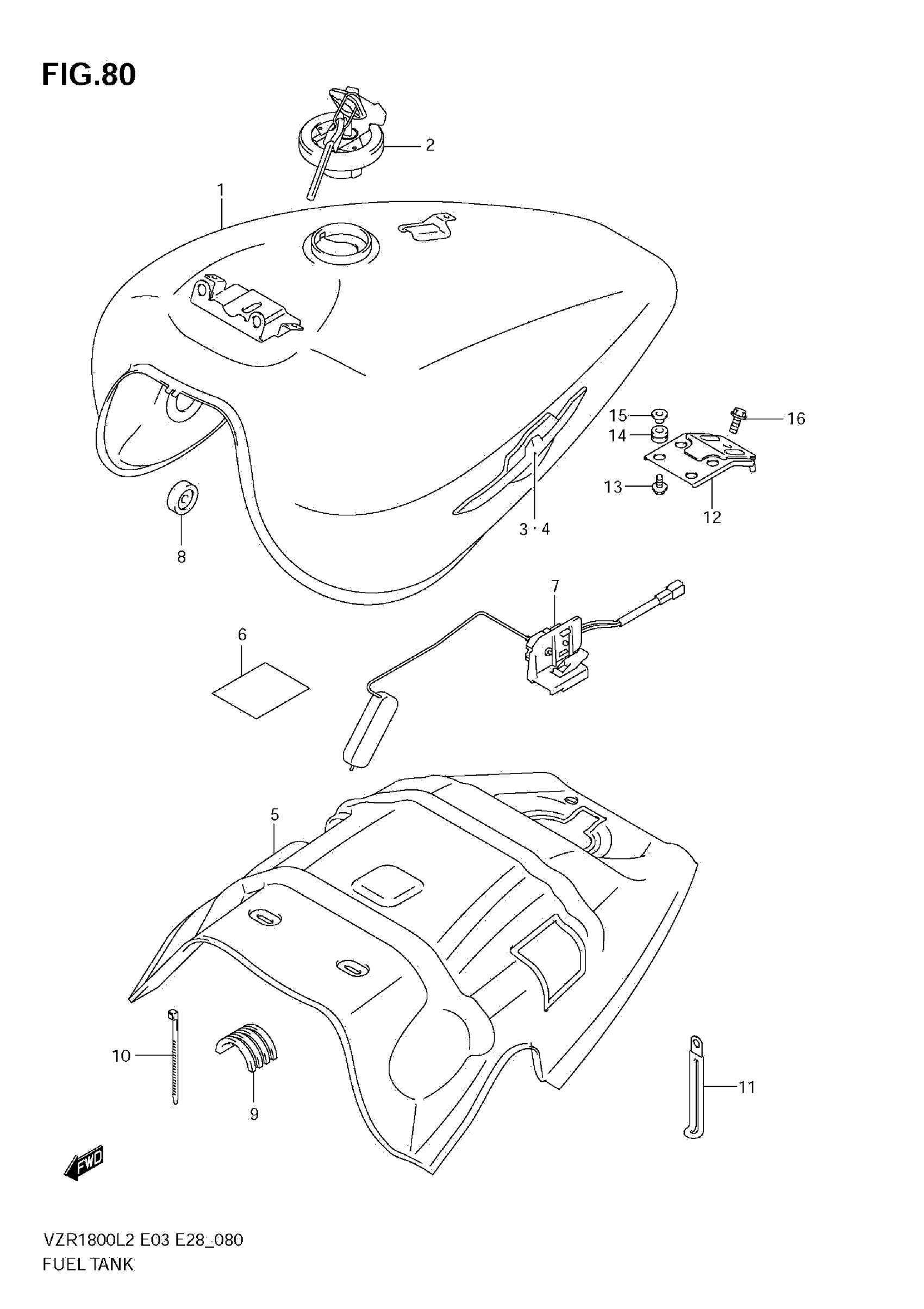

Suzuki VZR1800L2 (2012) FUEL TANK (VZR1800Z L2 E03) Diagram
