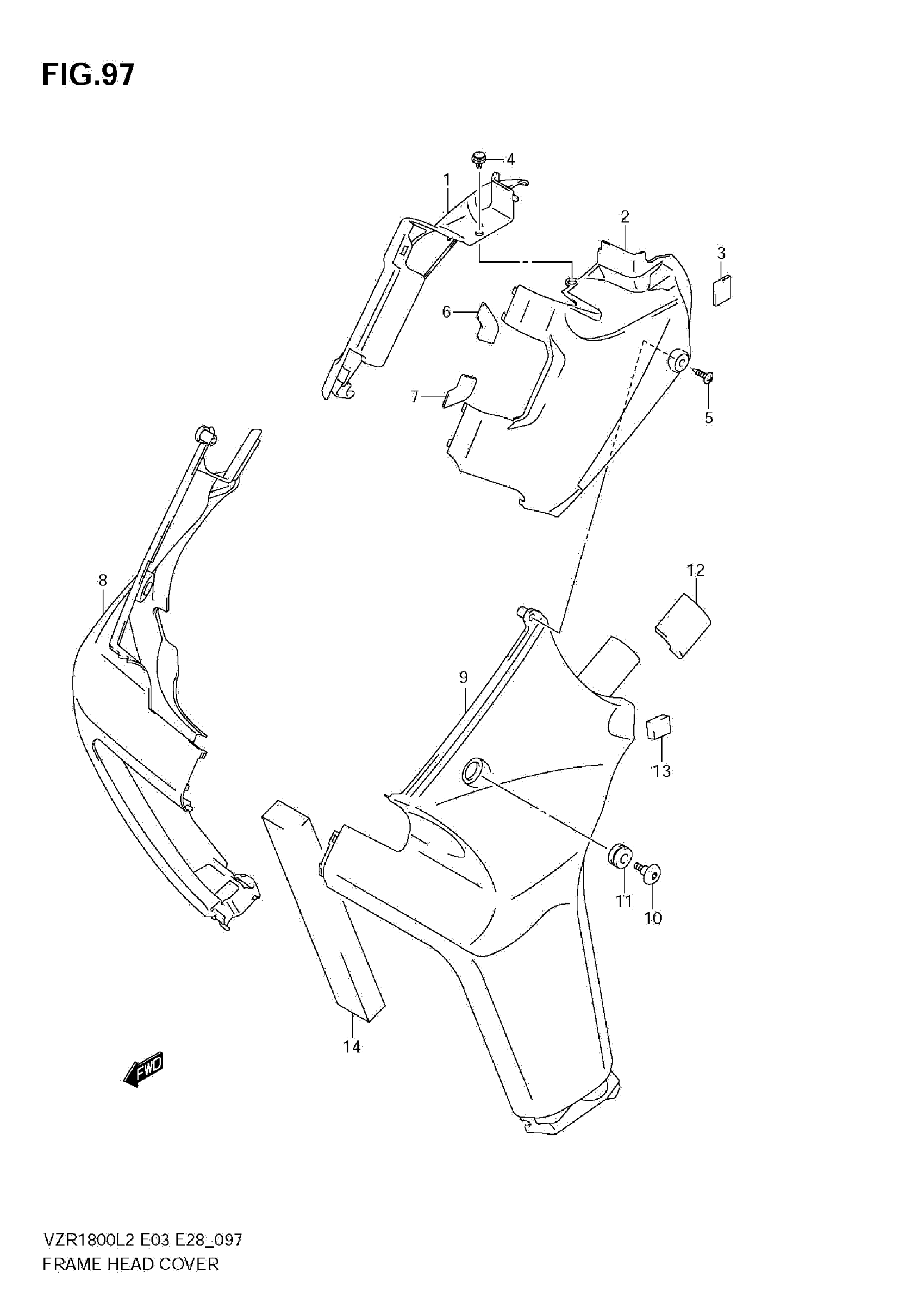

Suzuki VZR1800L2 (2012) FRAME HEAD COVER (VZR1800Z L2 E28) Diagram

#

Description
Price

1

COVER, FRAME HEAD RH (BLACK) | FOR JBA

47350-48G50-YVB

$245.79

1

COVER, FRAME HEAD RH (BLUE) | FOR GLR

47350-48G50-YSF

Unavailable

2

COVER, FRAME HEAD LH (BLACK) | FOR JBA

47361-48G50-YVB

Unavailable

2

COVER, FRAME HEAD LH (BLUE) | FOR GLR

47361-48G50-YSF

Unavailable

3

CUSHION

17798-39G00

$6.49

4

CLIP

09409-06328

$3.23

5

SCREW

03541-0516A

$1.49

6

TAPE, UPPER

47352-48G00

Unavailable

7

TAPE, LOWER

47353-48G01

Unavailable

8

COVER, FRAME BODY RH (BLACK) | FOR JBA

47551-48G50-YVB

$272.76

8

COVER, FRAME BODY RH (BLUE) | FOR GLR

47551-48G50-YSF

$266.10

9

COVER, FRAME BODY LH (BLACK) | FOR JBA

47561-48G50-YVB

$272.76

9

COVER, FRAME BODY LH (BLUE) | FOR GLR

47561-48G50-YSF

$272.76

10

SCREW (6X20)

09139-06126

$4.04

11

CUSHION

09320-09016

$1.97

12

CUSHION, UPPER

63191-25C00

$3.05

13

CUSHION, CENTER

17798-39G00

$6.49

14

CUSHION, LOWER RH

47552-48G00

$20.52
