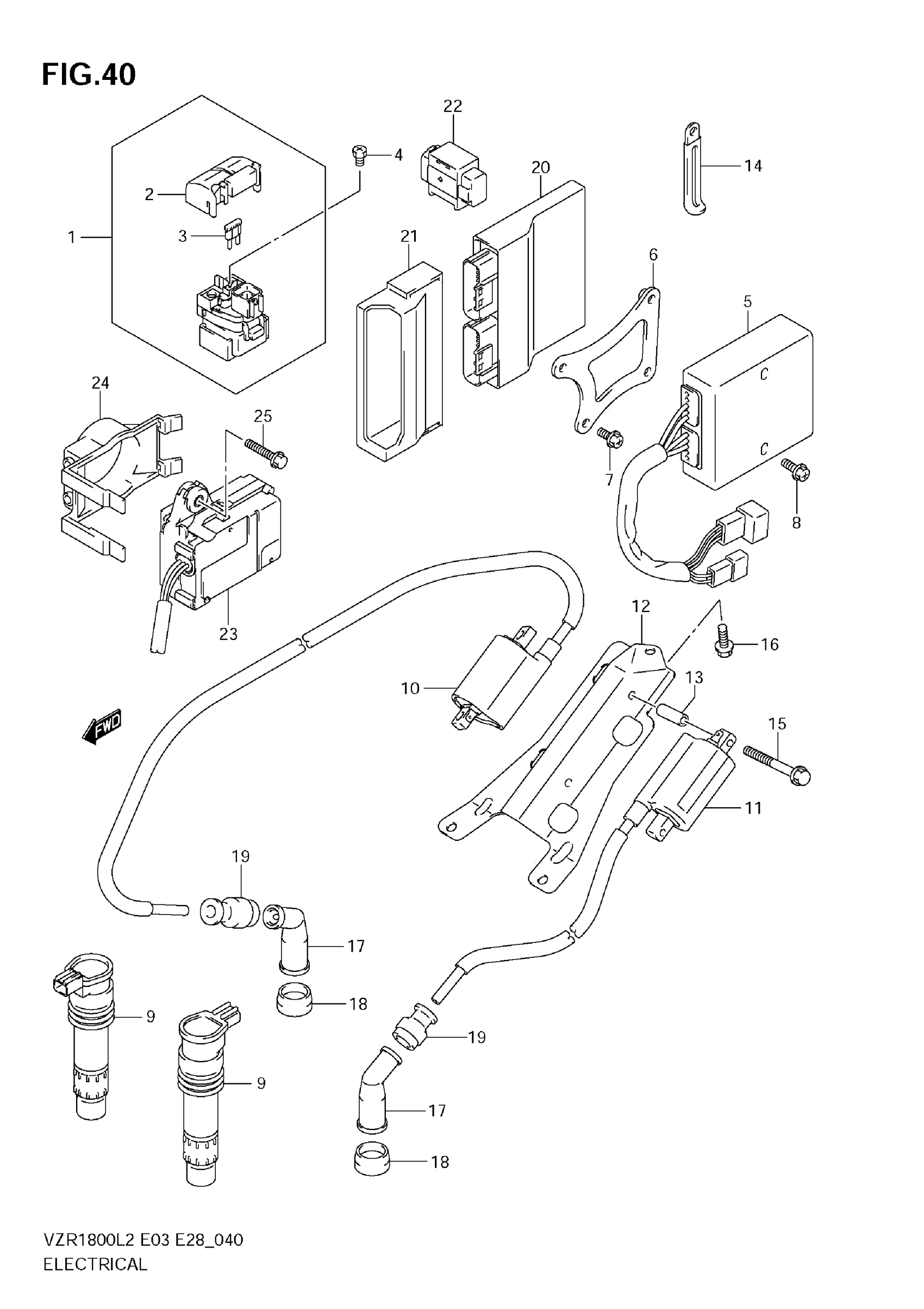

Suzuki VZR1800L2 (2012) ELECTRICAL Diagram

RELAY ASSY,STARTING MOTOR

31800-38G10

$97.31

COVER

31861-38G00

$4.88

FUSE (30A)

09481-30501

$2.32

SCREW (6X8)

09128-06013

$1.49

RECTIFIER ASSY

32800-10G30

$326.67

BRACKET, RECT FTG

32830-48G00

Unavailable

BOLT

02162-0620C

$1.71

SCREW This part replaces 02162-0616A.

02162-0616B

$2.03

COIL ASSY,IGNITION This part replaces 33410-35F10.

33410-35F11

$142.65

COIL ASSY, IGNITION FRONT

33410-38A20

$163.57

COIL ASSY, IGNITION REAR

33410-48G00

$163.57

BRACKET, IGNITION COIL

33414-48G00

Unavailable

SPACER (6.4X10X18)

09180-06195

$3.68

CLAMP(L:80) | FOR RECTIFIER This part replaces 09404-06433.

09404-06036

$1.74

BOLT

01547-0535A

Unavailable

BOLT

01550-0616A

$1.97

CAP ASSY, SPARK PLUG

33510-20E00

$34.60

SEAL, SPARK PLUG

33541-47D00

$7.83

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

CONTROL UNIT, FI

32920-48GB1

Unavailable

HOLDER,FI CONTROL UNIT This part replaces 32980-48G00.

32980-48G01

$19.02

SENSOR ASSY,FUEL CUT

33960-06G10

$89.92

ACTUATOR ASSY, EXHAUST CONTRO This part replaces 33970-48G00.

33970-48G02

$409.57

COVER, ACTUATOR

33973-48G01

Unavailable

BOLT

01560-0625A

$2.72
