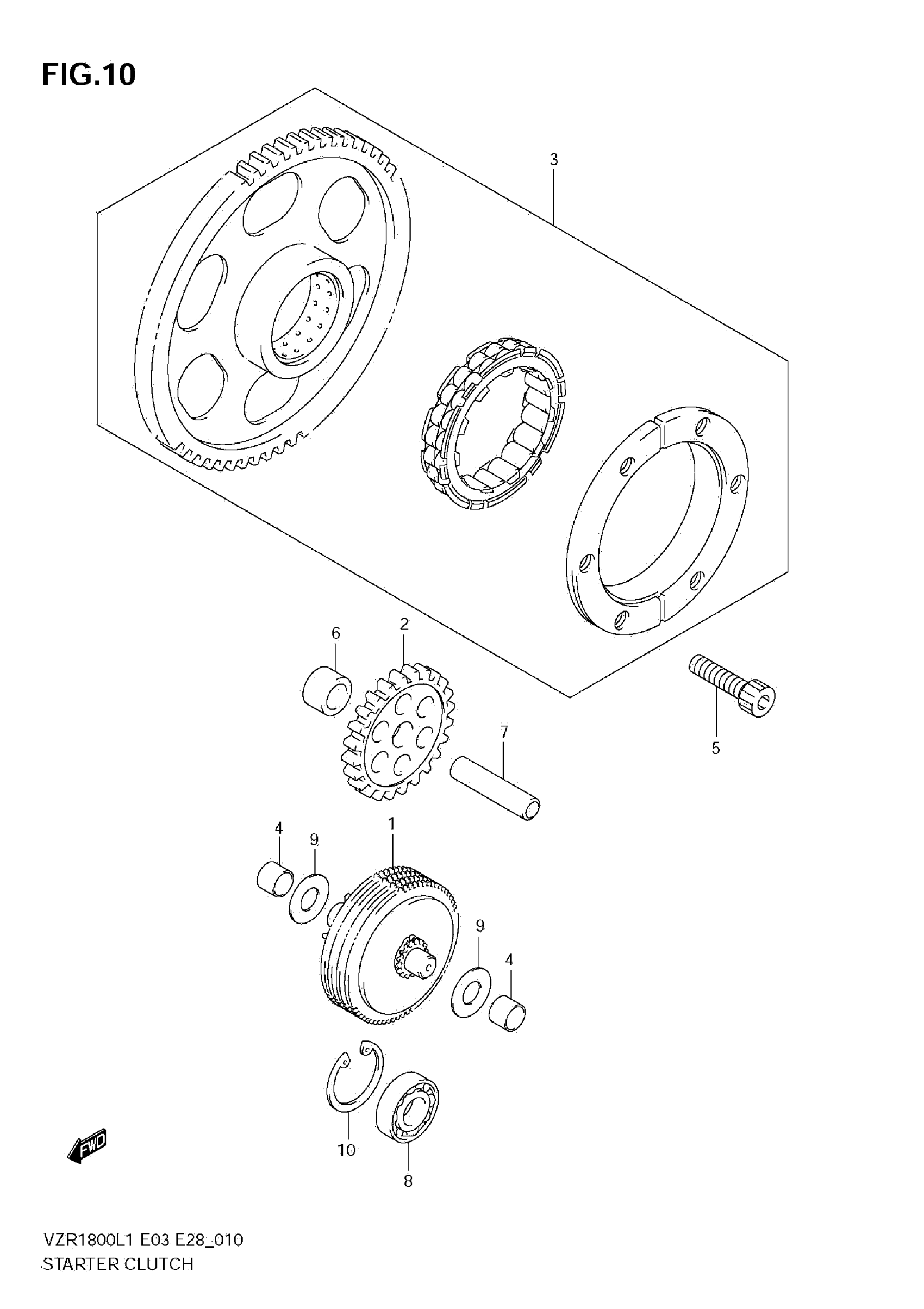

Suzuki VZR1800L1 (2011) STARTER CLUTCH Diagram

#

Description
Price

1

LIMITER ASSY, START IDLE

12600-48G01

Unavailable

2

GEAR, STARTER IDLE

12612-06G00

Unavailable

3

CLUTCH, STARTER ONE WAY

12600-48820

Unavailable

4

BUSH

12618-31G00

$4.03

5

.BOLT (8X16)

09106-08190

$2.65

6

SPACER This part replaces 09180-12138-A05.

09180-12138

$4.77

7

PIN

09206-12006

$9.43

8

BEARING (12X28X8)

09262-12001

$18.47

9

WASHER

08211-10221

$2.28

10

CIRCLIP This part replaces 08331-4128A.

08331-41289

$2.68
