Description

Price

1

SPEEDOMETER

34120-48GB0

$870.75

2

UPPER CASE ASSY

34150-48G00

$123.73

3

RUBBER, SWITCH

34124-32F00

$5.75

4

LOWER CASE ASSY

34111-48G40

$84.72

5

REFLECTOR ASSY

34125-48G00

$71.50

6

BRACKET

34950-48G00

Unavailable

7

CLAMP

34192-48G00

Unavailable

8

.SCREW (3X12)

34183-09F00

$2.56

9

SCREW (3X14)

34149-03G00

$3.71

10

SCREW

03541-0516A

$1.49

11

TACHOMETER ASSY

34220-48G30

$912.22

12

CASE ASSY, UPPER

34250-48G30

$120.88

13

CASE ASSY, LOWER

34211-48G30

$86.03

14

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

34955-13E01

$2.92

15

SCREW (4X14)

34149-17E10

$6.23

16

SCREW (3X16)

09132-03008

$1.53

17

CLAMP

36385-24A30

Unavailable

18

SCREW

03541-0516A

$1.49

19

SENSOR,SPEED This part replaces 34990-48G00.

34990-48G01

$159.05

20

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

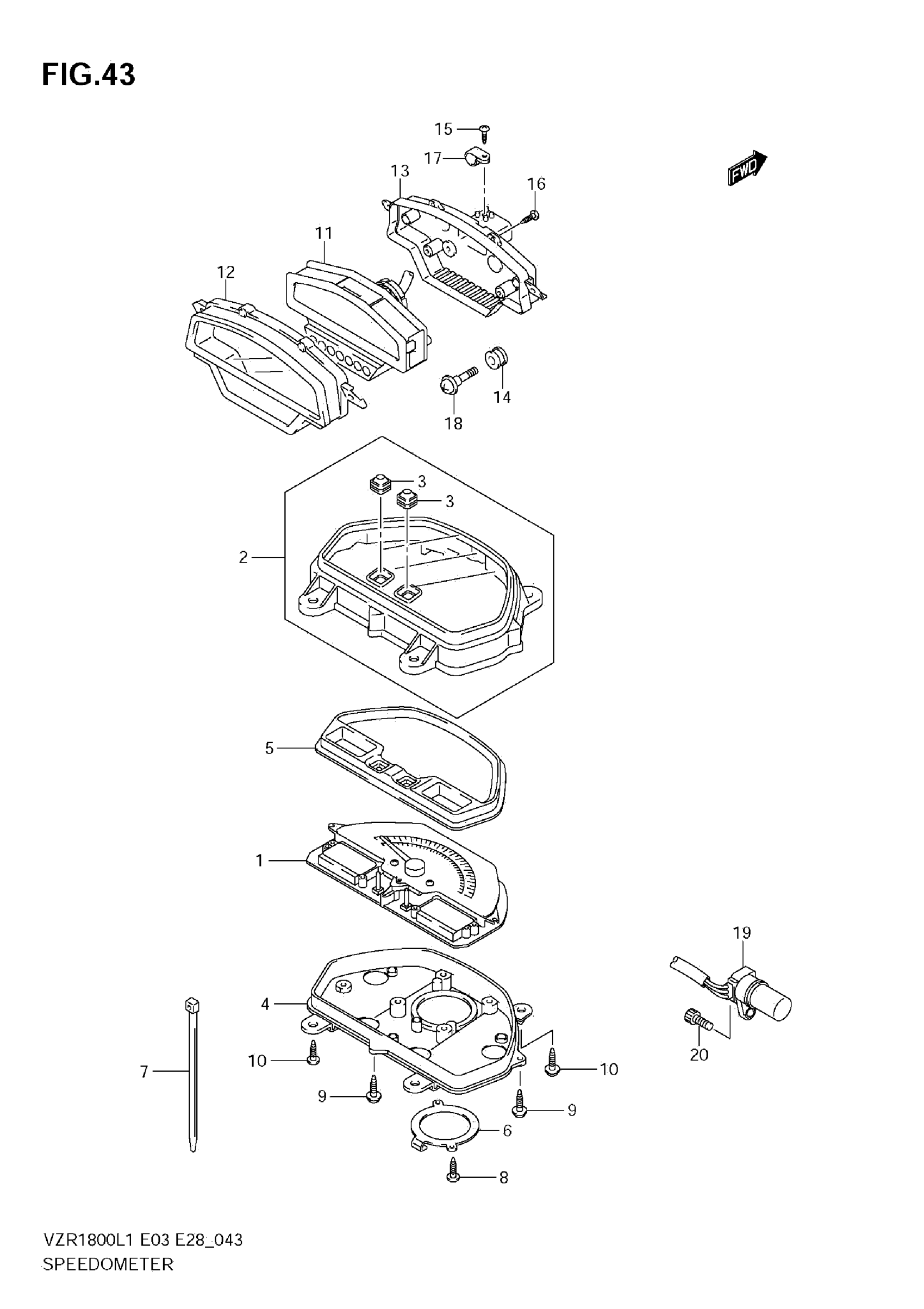

Suzuki VZR1800L1 (2011) SPEEDOMETER (VZR1800 L1 E33) Diagram

SPEEDOMETER

UPPER CASE ASSY

RUBBER, SWITCH

LOWER CASE ASSY

REFLECTOR ASSY

BRACKET

CLAMP

.SCREW (3X12)

SCREW (3X14)

SCREW

TACHOMETER ASSY

CASE ASSY, UPPER

CASE ASSY, LOWER

CUSHION,SPEEDOMETER This part replaces 34955-13E00.

SCREW (4X14)

SCREW (3X16)

CLAMP

SCREW

SENSOR,SPEED This part replaces 34990-48G00.

BOLT This part replaces 07130-0616A.
