Description

Price

1

WHEEL SET, REAR (18M/CXMT8.5) (SILVER)

64100-48820-12Z

Unavailable

2

BUSH

09319-12019

$13.11

3

SPACER, REAR WHEEL BEARING

64731-48G00

$72.33

4

BEARING (25X52X15)

09262-25072

$38.05

5

BEARING (25X52X15) | LH

08143-62057

$24.40

6

.SEAL,OIL (32X52X7) | RH

09285-32004

$7.98

7

DISC, REAR BRAKE

69210-10F40

$431.67

8

BOLT (8X21)

09106-08160

$3.57

9

BRACKET, REAR CALIPER

69721-48G10

Unavailable

10

BOLT (12X40)

09103-12109

$5.28

11

AXLE, REAR

64711-48G00

$217.48

12

SPACER, REAR AXLE RH

64741-48G00

$26.48

13

SPACER, REAR AXLE LH

64772-48G00

$40.22

14

NUT

09159-22007

$19.20

15

WASHER (22X35X2)

09160-22081

$3.04

16

JOINT ASSY, REAR HUB

64680-48G00

$382.13

17

O RING (D:2.4,ID:79.8)

09280-80001

$3.89

18

BOLT

09119-06049

$1.56

19

WASHER, REAR HUB DRIVEN

64679-48G00

$6.28

20

WASHER, THRUST

64677-48G10

$7.42

21

TIRE, REAR (240/40R18M/C 79V) (DUNLOP) | D221 This part replaces 65110-48G00.

65110-48G01

$943.88

22

VALVE ASSY, WHEEL RIM

43130-24A00

$8.85

23

BALANCER, WHEEL NO.1

55411-22H00

$8.60

23

BALANCER, WHEEL NO.2

55412-22H00

$10.07

23

BALANCER, WHEEL NO.3

55413-22H00

$11.47

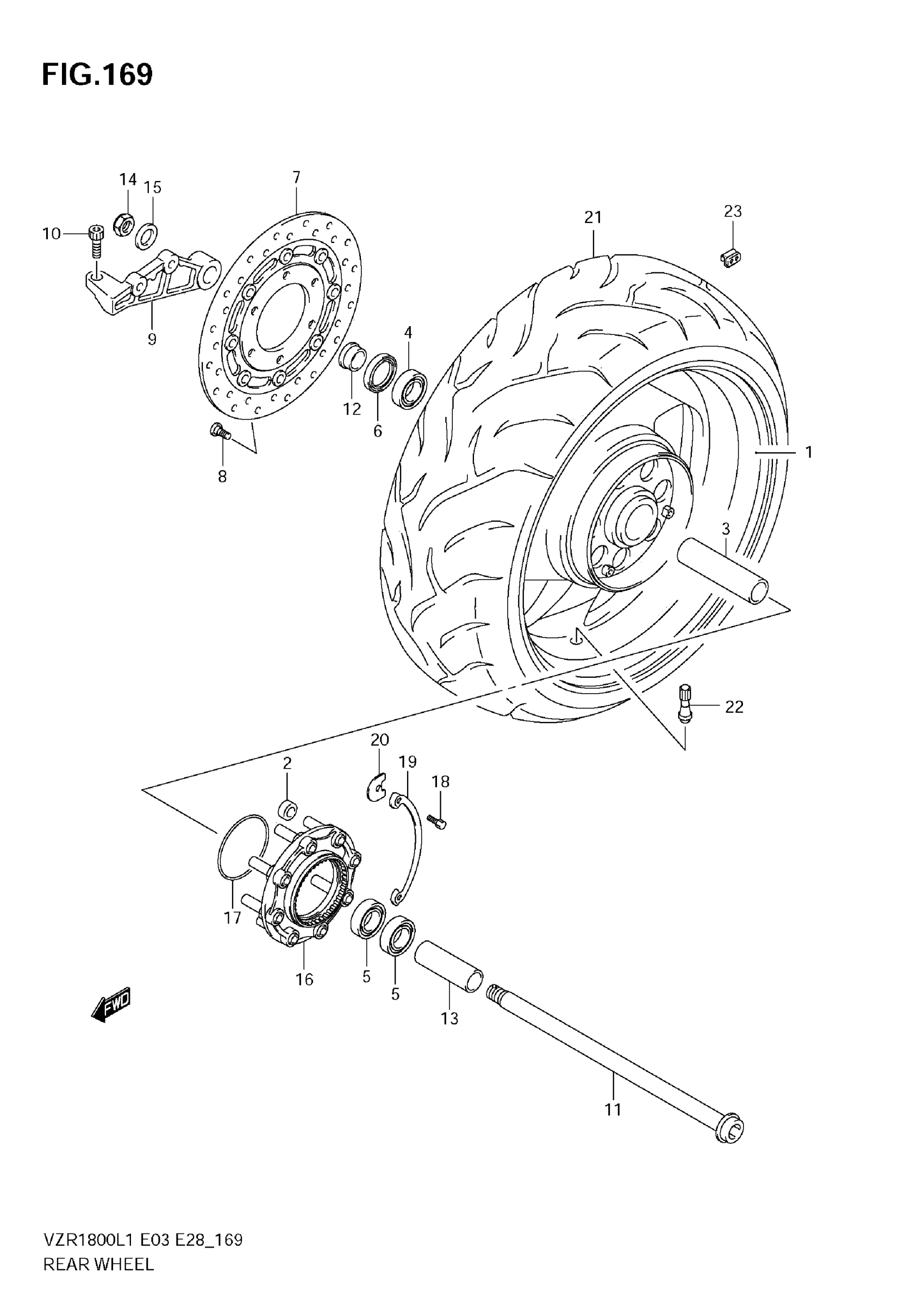

Suzuki VZR1800L1 (2011) REAR WHEEL (VZR1800 L1 E28) Diagram
