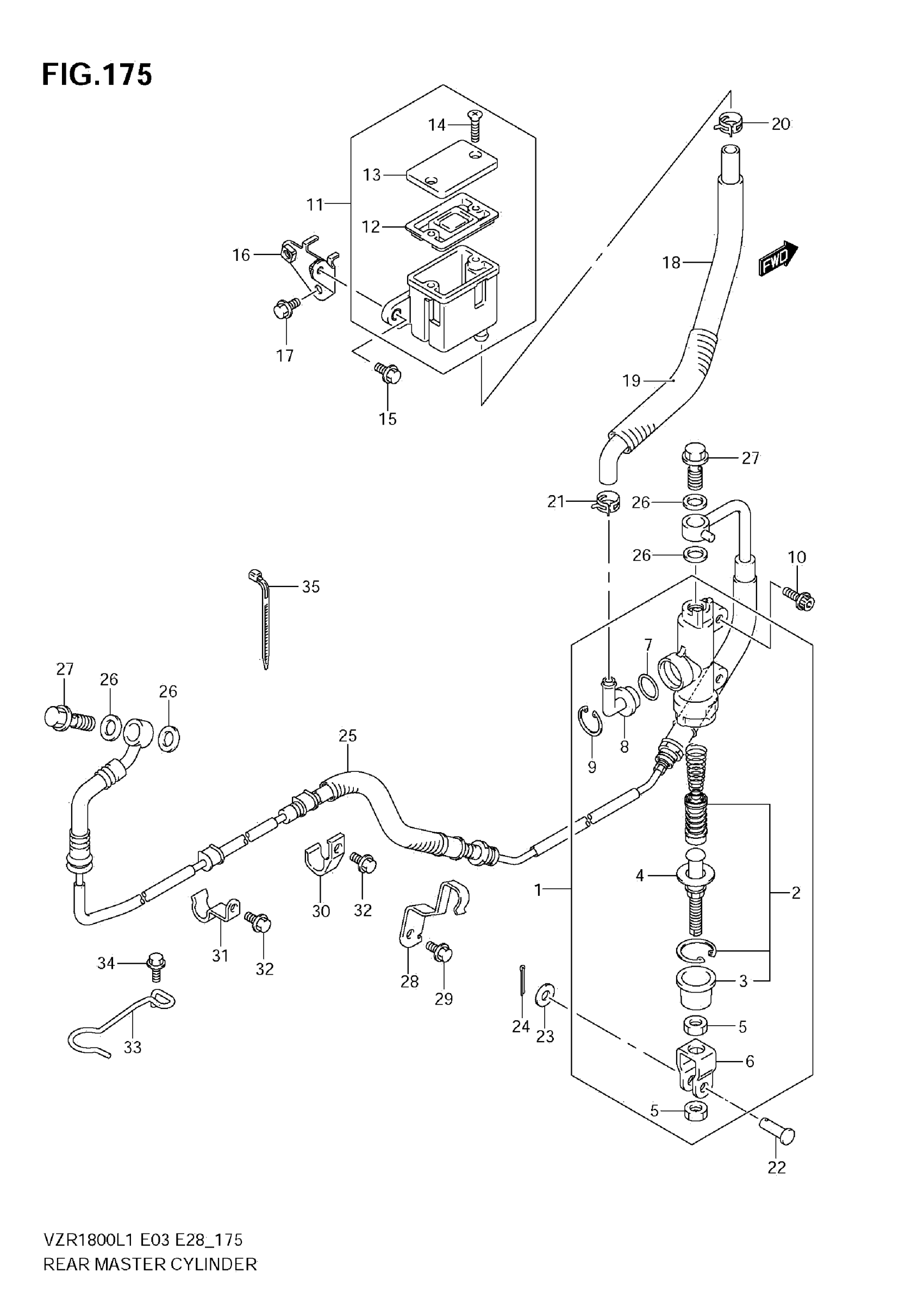

Suzuki VZR1800L1 (2011) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER

69600-48G00

$312.98

2

.PISTON/CUP SET This part replaces 69600-34820.

69600-34821

$26.60

3

.BOOT

69691-00A00

$5.30

4

ROD, PUSH

69670-44B00

Unavailable

5

NUT

69693-05A00

$1.96

6

YOKE

69692-19A00

$16.87

7

O RING

69686-34200

$2.93

8

CONNECTOR

69672-00B20

$7.01

9

CIRCLIP

69674-00B20

$3.97

10

BOLT

07120-0625A

$2.50

11

TANK ASSY, REAR RESERVOIR

69740-48G00

$80.02

12

DIAPHRAGM

59667-04700

$9.78

13

CAP

59669-05D00

$16.76

14

SCREW

69689-04A00

$1.78

15

BOLT

01547-0612A

$2.03

16

BRACKET, REAR RESERVER TANK

69750-48G00

Unavailable

17

BOLT

01550-0612A

$1.97

18

HOSE, REAR RESERVOIR

69730-48G00

Unavailable

19

HEATSHIELD,RR RSVR TANK HOSE This part replaces 69732-48G00.

69732-48G01

$17.00

20

CLIP | UPPER

09401-13417

$2.26

21

CLIP | LOWER

09401-12404

$2.34

22

PIN

09200-06068

$4.11

23

WASHER

08322-0106A

$1.84

24

COTTER PIN

04111-2015A

$1.49

25

HOSE ASSY,REAR BRAKE This part replaces 69400-48G20.

69400-48G21

$154.00

26

WASHER (10X15X1.5)

09161-10009

$1.84

27

UNION

09360-10062

$6.43

28

CLAMP, REAR BRAKE HOSE NO.3

69268-48G00

Unavailable

29

BOLT

01550-0612A

$1.97

30

CLAMP, REAR BRAKE HOSE

69268-29G01

$17.70

31

CLAMP, REAR BRAKE PIPE

69269-48G00

$12.65

32

BOLT

01547-0612A

$2.03

33

GUIDE, REAR BRAKE HOSE

69243-48G00

Unavailable

34

BOLT

01550-0612A

$1.97

35

CLAMP (L:165)

09407-18402

$2.19
