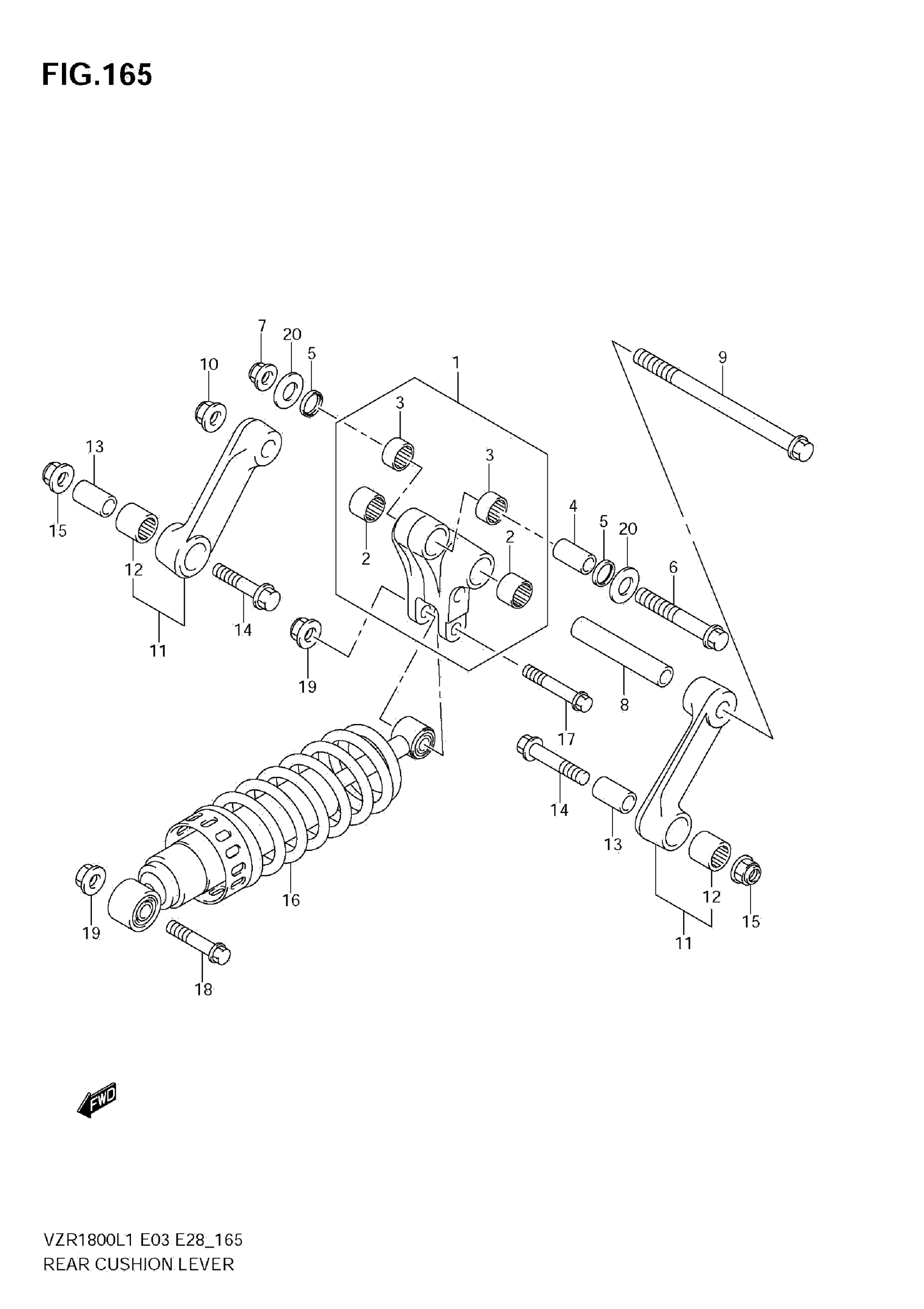

Suzuki VZR1800L1 (2011) REAR CUSHION LEVER (VZR1800Z L1 E3) Diagram

#

Description
Price

1

LEVER SET, REAR CUSHION

62600-48870

Unavailable

2

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

3

BEARING (20X26X14)

09263-20090

$16.23

4

SPACER, UPPER

62684-48G00

Unavailable

5

OIL SEAL (20X26X4) | UPPER

09284-20003

$6.47

6

BOLT, UPPER

62658-33D00

Unavailable

7

NUT

08319-3114A

$9.66

8

SPACER (14X20X102) | LOWER

09180-14018

Unavailable

9

BOLT, LOWER

62621-48G00

$27.40

10

NUT

08319-3114A

$9.66

11

ROD SET,RR CUSHION This part replaces 62600-48880.

62600-48881

$165.30

12

.BEARING This part replaces 09263-20074.

09263-20116

$31.15

13

SPACER (14X20X34)

09180-14014

$17.50

14

BOLT (14X66)

09103-14016

Unavailable

15

NUT

08319-3114A

$9.66

16

ABSORBER ASSY, REAR SHOCK

62100-48G50

$1,015.88

17

BOLT, REAR SHOCK ABS REAR

62658-01C60

$13.55

18

BOLT (12X57)

09103-12042

$8.50

19

NUT

09159-12056

$7.37

20

WASHER

08211-14341

$3.42
