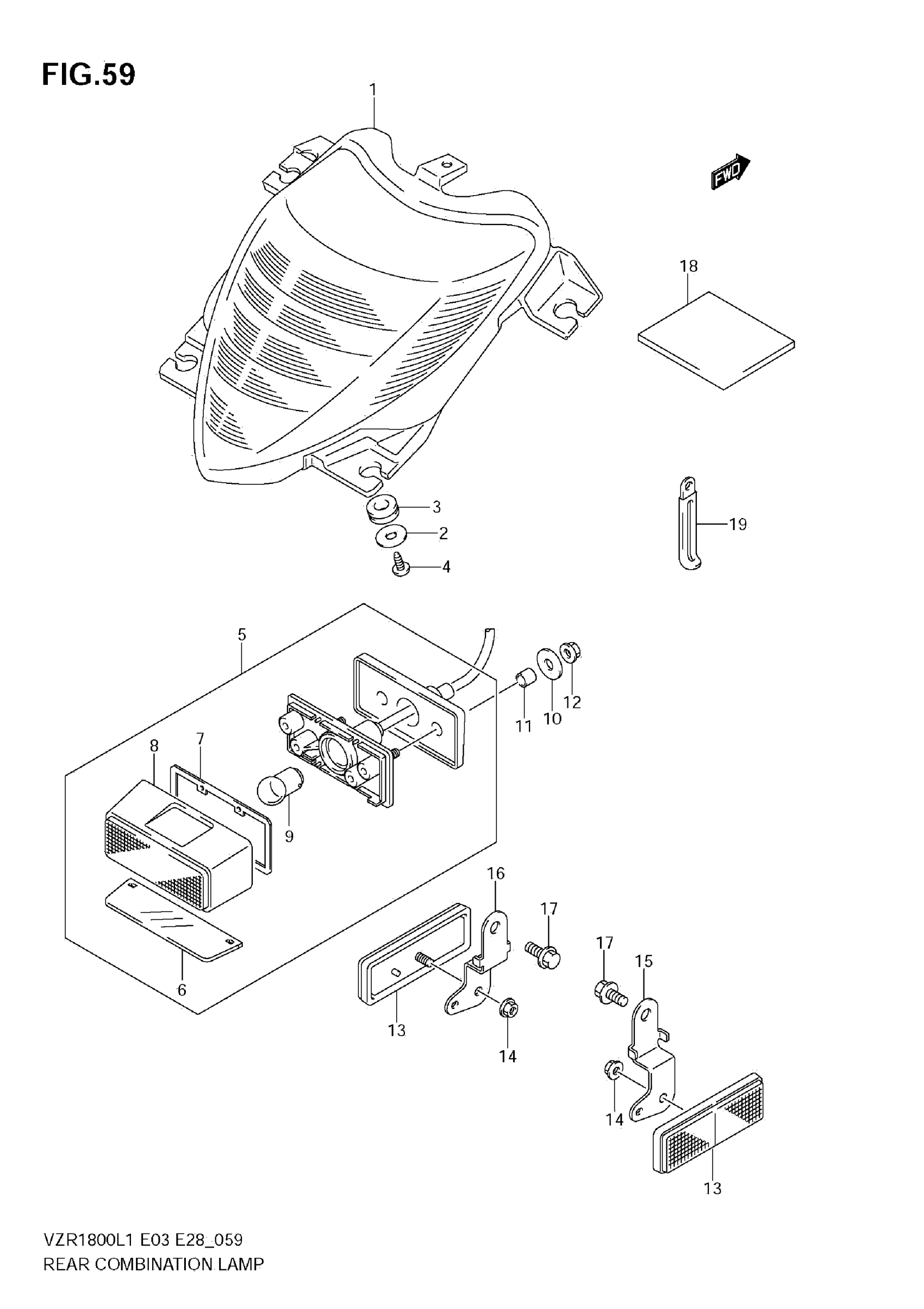

Suzuki VZR1800L1 (2011) REAR COMBINATION LAMP (VZR1800Z L1 E33) Diagram

#

Description
Price

1

LAMP ASSY, REAR COMB

35710-48G70

$461.60

2

WASHER (5.5X20X1.2)

09160-05501

$1.94

3

CUSHION This part replaces 09320-10054.

09320-10073

$2.12

4

SCREW

03541-0512A

$1.41

5

LAMP ASSY, LICENSE This part replaces 35910-41G00.

35910-41G02

$83.48

6

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$14.98

7

GASKET

35913-41G00

$16.07

8

COVER, LICENSE LAMP

35917-41G00

$39.85

9

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

10

WASHER (6.5X20X1.2)

09160-06077

$1.97

11

SPACER (6.5X9X8)

09180-06261

$1.97

12

NUT

08316-1006A

$2.25

13

REFLECTOR ASSY, REAR SIDE

35970-07F01

$19.97

14

NUT

08316-1005A

$2.25

15

BRACKET, REAR SIDE RR RH

35975-48G00

$6.77

16

BRACKET, REAR SIDE RR LH

35976-48G00

$8.37

17

SCREW

02162-0612A

$1.93

18

CUSHION,HELMET BOX (60X60X3.0 | 60X60X3.0

92213-33G00

$7.95

19

CLAMP (L:45)

09404-06429

$1.88

19

CLAMP

09404-10415

Unavailable
