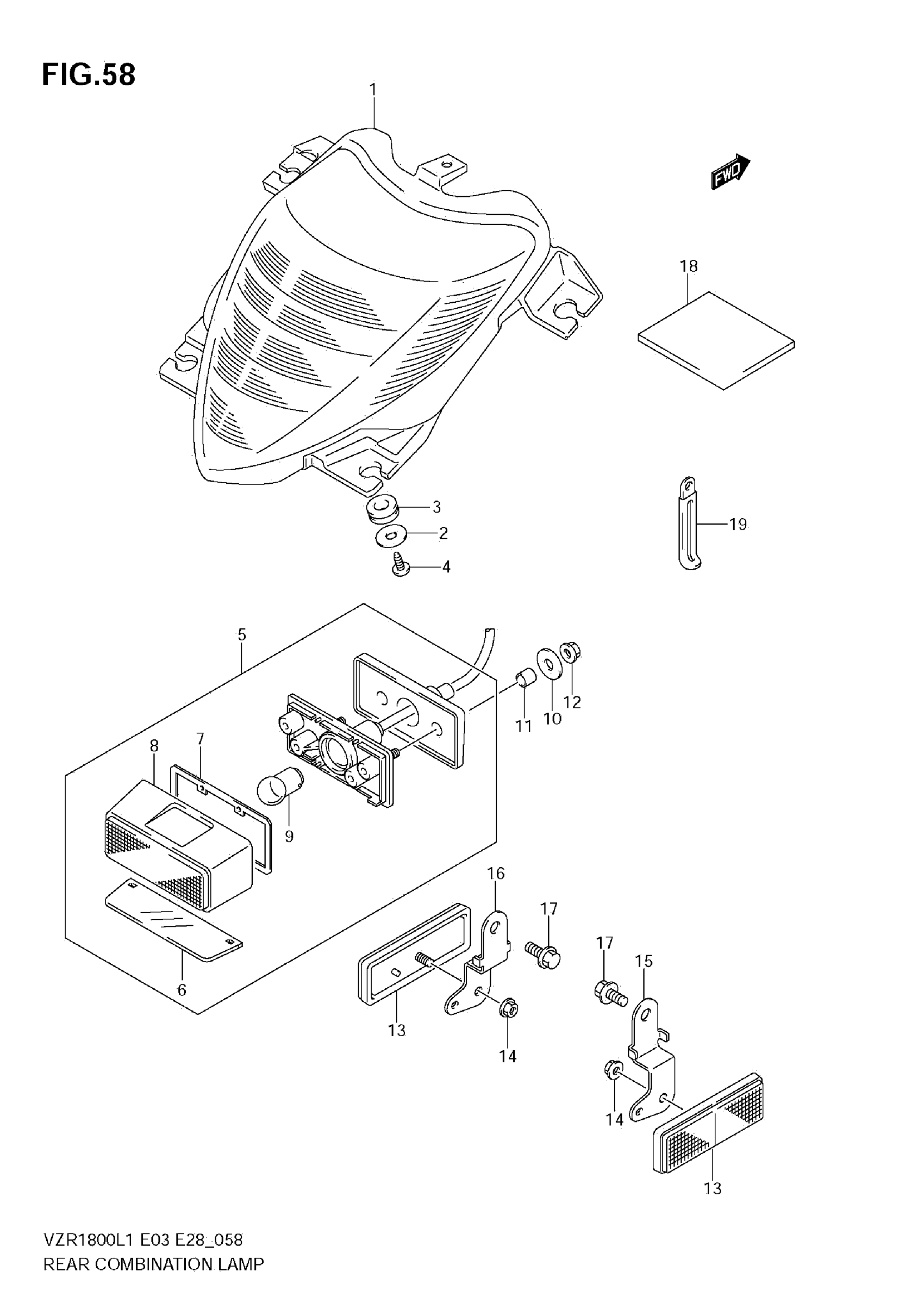

Suzuki VZR1800L1 (2011) REAR COMBINATION LAMP (VZR1800Z L1 E28) Diagram

LAMP ASSY, REAR COMB

35710-48G70

$410.97

WASHER (5.5X20X1.2)

09160-05501

$1.84

CUSHION This part replaces 09320-10054.

09320-10073

$2.27

SCREW

03541-0512A

$1.49

LAMP ASSY, LICENSE This part replaces 35910-41G00.

35910-41G02

$73.97

LENS, LICENSE This part replaces 35912-41G00.

35912-41G01

$13.28

GASKET

35913-41G00

$14.23

COVER, LICENSE LAMP

35917-41G00

$35.32

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.33

WASHER (6.5X20X1.2)

09160-06077

$1.91

SPACER (6.5X9X8)

09180-06261

$1.91

NUT

08316-1006A

$2.19

REFLECTOR ASSY, REAR SIDE

35970-07F01

$20.88

NUT

08316-1005A

$2.19

BRACKET, REAR SIDE RR RH

35975-48G00

Unavailable

BRACKET, REAR SIDE RR LH

35976-48G00

$7.42

SCREW

02162-0612A

$2.05

CUSHION,HELMET BOX (60X60X3.0 | 60X60X3.0

92213-33G00

$5.99

CLAMP (L:45)

09404-06429

$1.83

CLAMP

09404-10415

Unavailable
