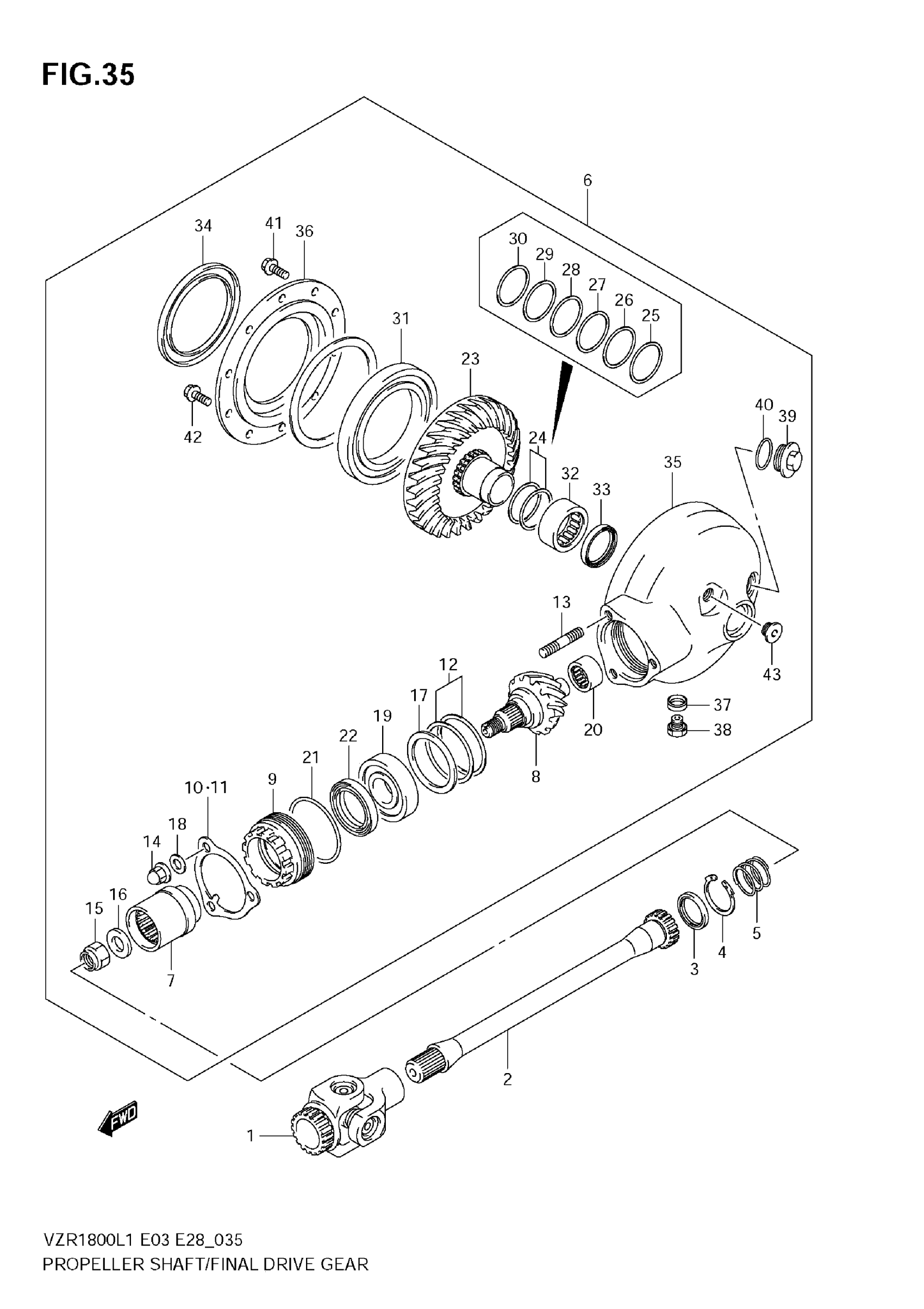

Suzuki VZR1800L1 (2011) PROPELLER SHAFT/FINAL DRIVE GEAR (VZR1800Z L1 E28) Diagram

#

Description
Price

1

YOKE, UNIVERSAL JOINT

27100-48G20

$351.00

2

SHAFT, PROPELLER (L:416.5)

27151-48G20

$278.10

3

OIL SEAL (30X40.5X5.5)

09283-30026

$10.40

4

CIRCLIP

09381-40003

$4.64

5

SPRING

09440-30008

$3.72

6

GEAR & CASE SET This part replaces 27300-48850-019.

27300-48851-019

$1,975.02

7

COUPLING, FINAL DRIVE GEAR

27172-24A00

$59.80

8

GEAR, FINAL DRIVE BEVEL

27311-24A03

Unavailable

9

STOPPER, FINAL DRIVE BE

27312-24A02

$74.08

10

PLATE, BEARING STOPPER

27313-38B00

$7.37

11

PLATE, BEARING STOPPER

27313-38B10

$7.37

12

.SHIM SET,FINAL DRIVE GEAR (T | T:0.30/0.35/0.40

27445-24810

$28.18

13

STUD BOLT

09108-10106

$4.68

14

NUT

09159-10026

$6.20

15

NUT

09159-16003

$4.00

16

WASHER (16X29X4)

09160-16029

$6.35

17

WASHER (54X68X1.5)

09160-54001

Unavailable

18

WASHER

09164-10008

$1.71

19

BEARING (28X68X18)

09262-28023

$127.87

20

BEARING (20X34X18)

09263-20062

$46.98

21

O RING (D:3.1,ID:63.9)

09280-64003

$5.64

22

OIL SEAL (45.5X58X7)

09283-47002

$17.18

23

GEAR, FINAL DRIVEN

27320-48G00

Unavailable

24

SHIM SET, FINAL DRIVEN

27326-48811

$103.03

25

SHIM (40X46.8X0.95)

09181-40011

$3.27

26

SHIM (40X46.8X1.05)

09181-40013

$3.97

27

SHIM (40X46.8X1.1)

09181-40014

Unavailable

28

SHIM (40X50X1.2)

09181-40176

Unavailable

29

SHIM (40X50X1.4)

09181-40182

Unavailable

30

SHIM (40X50X1.5)

09181-40212

Unavailable

31

BEARING (85X130X14) | RH

09262-85001

$202.27

32

BEARING (40X50X20) | LH

09263-40016

$68.97

33

OIL SEAL (38X46X6) | LH

09283-38026

$16.33

34

OIL SEAL (85X110X11) | RH

09289-85001

$41.81

35

CASE, FINAL GEAR (BLACK)

27450-48G70-019

Unavailable

36

CASE, FINAL GEAR BEARING

27461-38B00

$239.92

37

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

38

PLUG (MAGNETO)

09247-14002

$5.24

39

PLUG

09259-30007

$18.39

40

O RING (D:3.1,ID:26.4)

09280-26006

$2.76

41

BOLT

01550-0825A

$2.32

42

BOLT (10X20)

01550-1025A

$3.05

43

PLUG

09248-16012

$4.64
