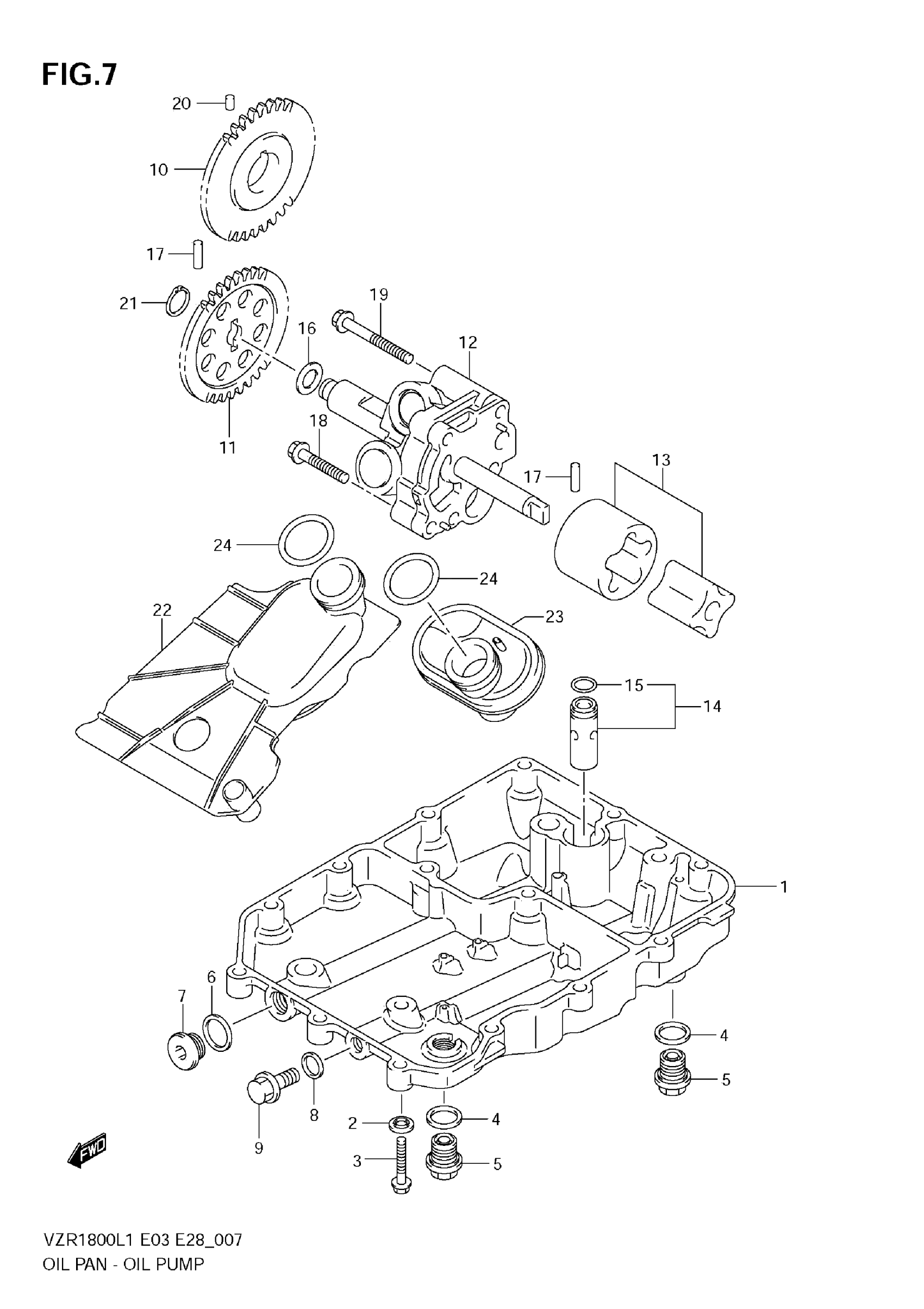

Suzuki VZR1800L1 (2011) OIL PAN - OIL PUMP Diagram

#

Description
Price

1

PAN, OIL This part replaces 11511-48G00.

11511-48G01

$355.08

2

GASKET (5.8X13X1.2)

09168-06023

$2.09

3

BOLT

01547-0630A

$2.38

4

GASKET (13.8X18.8X4.8)

09168-14002

$2.83

5

PLUG, OIL DRAIN

09247-14036

$5.74

6

GASKET (16X22X2)

09168-16002

$1.97

7

PLUG

09248-16012

$4.32

8

GASKET (10X14X3.6)

09168-10002

$1.96

9

PLUG

09247-10008

$2.01

10

GEAR, OIL PUMP DRIVE

16321-48G00

Unavailable

11

GEAR, OIL PUMP DRIVEN

16331-48G00

Unavailable

12

PUMP ASSY,ENGINE OIL This part replaces 16400-48G00.

16400-48G01

$288.72

13

ROTOR SET, OIL PUMP

16410-48G00

$71.33

14

VALVE ASSY, OIL RELIEF

16440-24F00

$47.86

15

O RING (D:1.9,ID:13)

09280-13004

$2.25

16

SHIM (10X18X0.5)

09181-10158

$2.03

17

PIN

09261-04009

$1.56

18

BOLT

01547-0635A

$2.38

19

BOLT

01547-0655A

$2.53

20

PIN

04221-04069

$2.30

21

CIRCLIP This part replaces 08331-3110A.

08331-31109

$1.82

22

STRAINER, ENG OIL FRONT This part replaces 16530-48G00.

16530-48G01

$47.42

23

STRAINER, ENG OIL REAR This part replaces 16520-48G00.

16520-48G01

$37.10

24

O RING (D:3.7,ID:21.7)

09280-22016

$5.18
