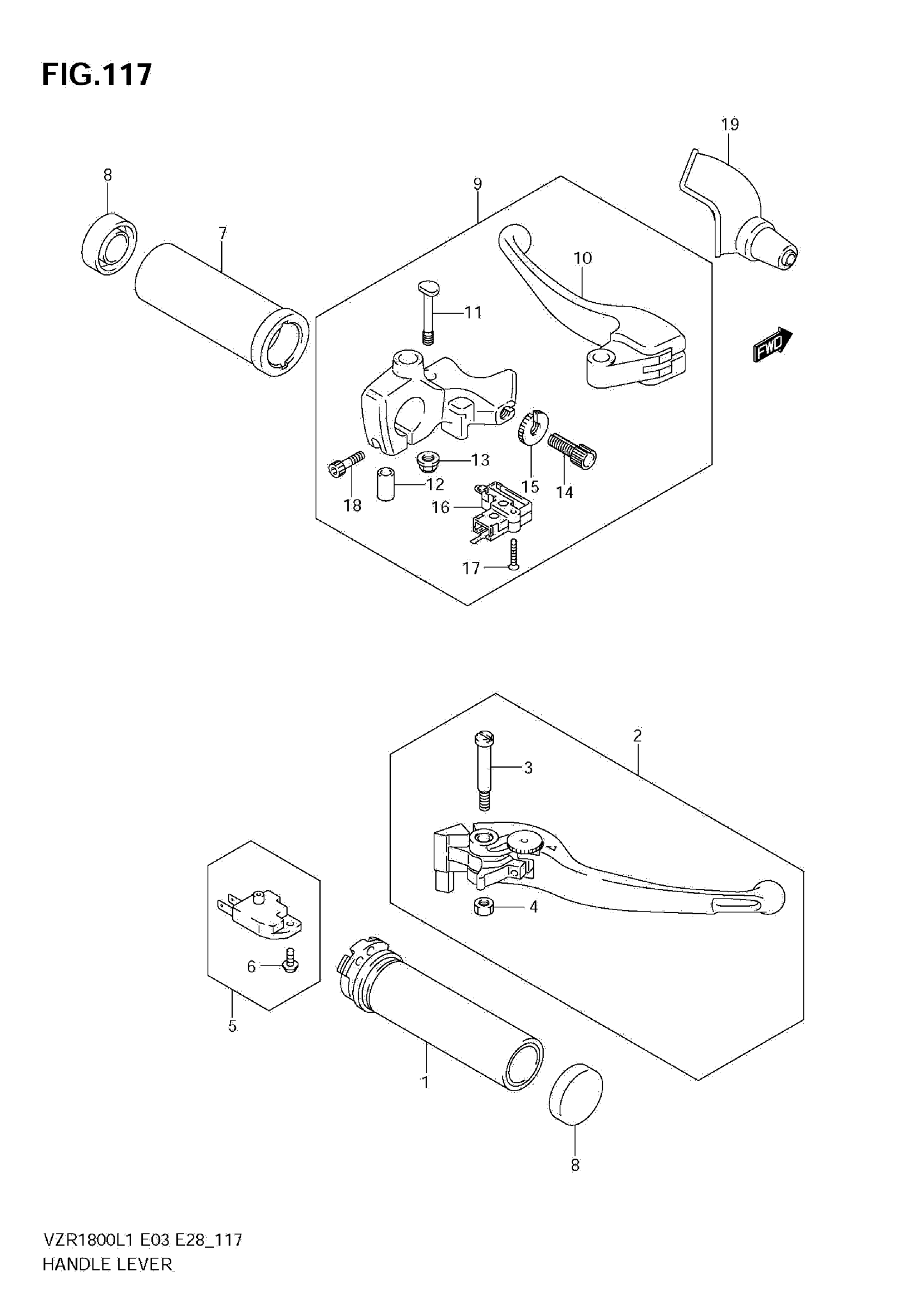

Suzuki VZR1800L1 (2011) HANDLE LEVER (VZR1800Z L1 E28) Diagram

#

Description
Price

1

GRIP,THROTTLE This part replaces 57110-26D10.

57110-26D11

$42.05

2

LEVER ASSY, BRAKE

57300-48G10

$51.45

3

BOLT, PIVOT

57431-48G00

$9.23

4

NUT

08319-2106A

$1.91

5

SWITCH ASSY,FR BRAKE This part replaces 57460-17C11.

57460-14J02

$38.46

6

SCREW

57465-17C00

$2.19

7

GRIP,L This part replaces 57210-26D00.

57210-26D01

$30.23

8

CAP, GRIP END

57216-38A00

$7.22

9

LEVER ASSY,CLUT This part replaces 57500-48G21.

57500-48G23

$158.42

10

LEVER, CLUTCH

57621-48G11

$36.16

11

BOLT, PIVOT

57531-48G00

$37.52

12

SPACER

57623-48G00

$29.98

13

NUT

08319-3106B

$2.45

14

.ADJUSTER,WIRE This part replaces 57441-08C00.

57441-08C01

$11.64

15

..NUT,LOCK This part replaces 57442-08C00.

57442-08C01

$8.36

16

.SWITCH ASSY,CLUTCH

57560-05A10

$30.85

17

.SCREW,CLUTCH SWITCH This part replaces 57562-41G00.

57562-41G01

$9.58

18

BOLT

07130-0620A

$2.50

19

COVER,CLUTCH LEVER This part replaces 57541-48G10.

57541-48G11

$10.71
