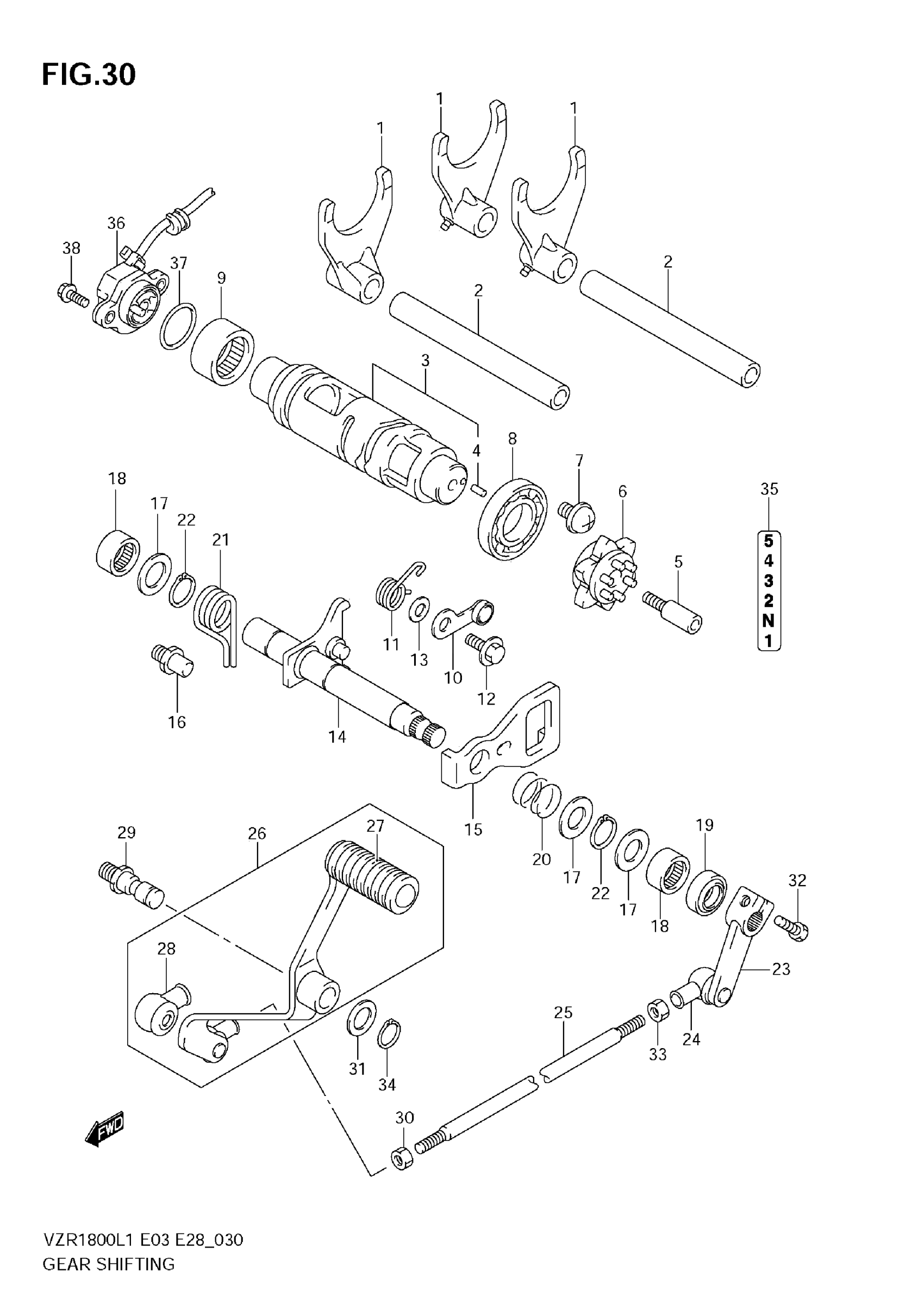

Suzuki VZR1800L1 (2011) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFT

25211-35F11

$86.59

2

SHAFT, GEAR SHIFT FORK | 10X14X139

25411-48G00

$24.75

3

CAM, GEAR SHIFT

25310-48G00

$247.48

4

PIN (4X13.8)

04221-04089

$1.49

5

STOPPER, SHIFT CAM DRIVE

25312-42F01

$7.95

6

PLATE, GEAR SHIFT CAM

25381-13E00

$56.02

7

SCREW (6X12)

09136-06147

$3.20

8

BEARING (25X47X8) | LH

09262-25006

$25.54

9

BEARING (25X32X12) | RH

09263-25018

$21.39

10

STOPPER,SHIFT CAM This part replaces 25350-06G00.

25350-06G10

$18.03

11

SPRING, CAM STOPPER ARM

25355-38F00

$4.88

12

BOLT (6X14.3)

09111-06041

$2.61

13

WASHER

08211-06141

$1.59

14

SHAFT, GEAR SHIFT

25510-48G00

$111.58

15

PLATE, GEAR SHIFT CAM DRIVE

25512-13E20

$38.18

16

STOPPER, GEAR SHIFT ARM

25671-01011

$4.48

17

SHIM (14X22X1)

09181-14167

$2.53

18

BEARING (14X20X12)

09263-14027

$13.52

19

SEAL, SHIFT SHAFT (14X22X6) This part replaces 09283-14005.

09283-14006

$6.70

20

SPRING

09440-17009

$1.71

21

SPRING

09444-20001

$5.24

22

CIRCLIP, GEAR SHIFT

08331-3114A

$1.91

23

ARM,GEAR SHIFT LINK This part replaces 25520-48G00.

25520-48G01

$44.60

24

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

25

ROD, GEAR SHIFT LINK

25525-48G00

$14.02

26

LEVER ASSY,GEAR SHIFT This part replaces 25600-48G10.

25600-48G11

$95.43

27

RUBBER, GEAR SHIFT

25652-38B00

$5.36

28

.COVER, DUST This part replaces 25526-47000.

25526-47001

$5.44

29

SHAFT, GEAR SHIFT LEVER

25617-03F10

$12.33

30

NUT | LH

09140-06025

$2.05

31

WASHER (12.5X20X1)

09160-12011

$1.54

32

BOLT

01547-0620A

$2.03

33

.NUT

08310-00067

$2.13

34

CIRCLIP

08331-3112A

$1.78

35

LABEL, GEAR SHIFT

68392-38B00

Unavailable

36

SENSOR ASSY,GEAR POSITION This part replaces 37730-48G01.

37730-48G03

$71.81

37

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

38

BOLT

07120-0516A

$2.28
