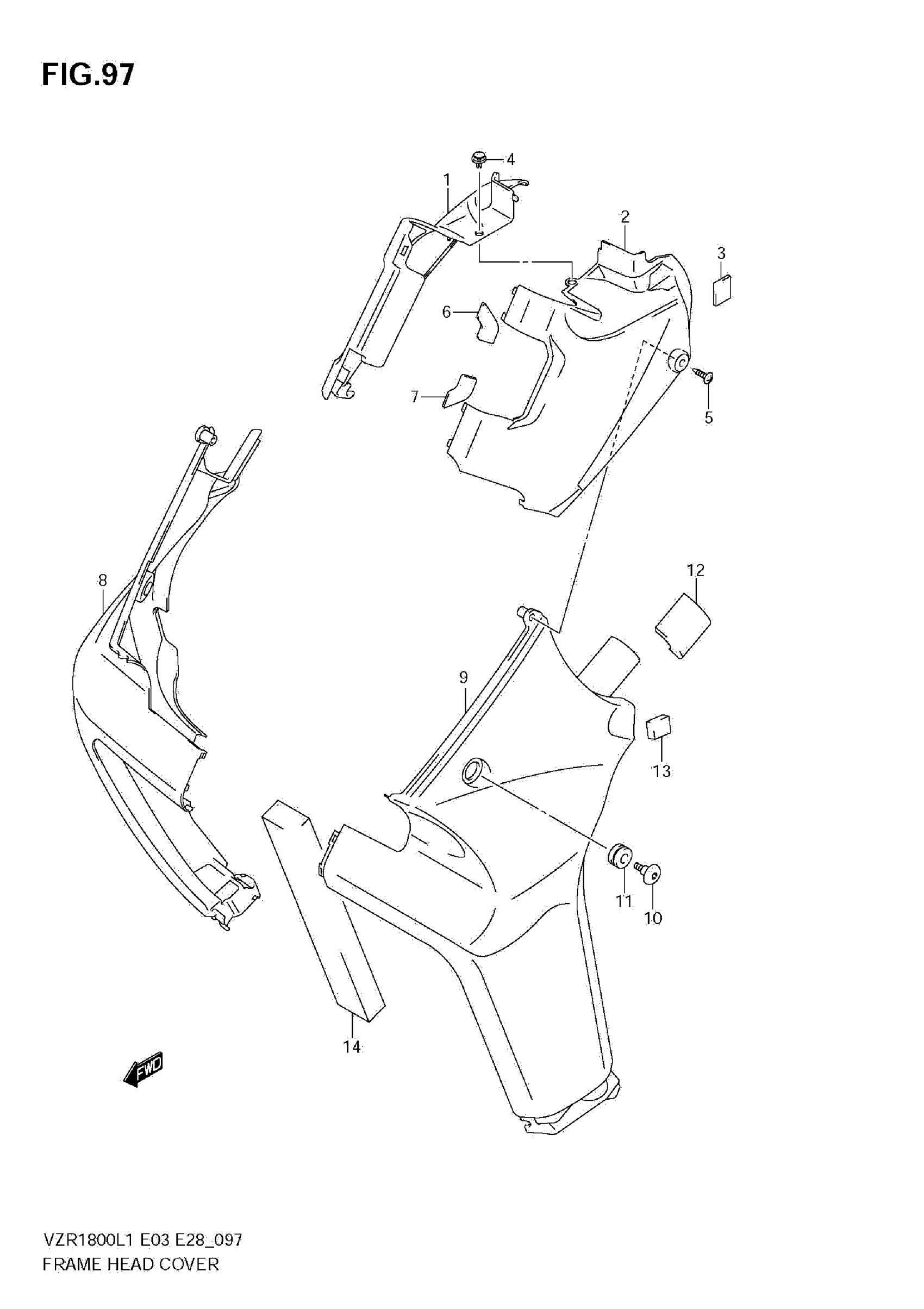

Suzuki VZR1800L1 (2011) FRAME HEAD COVER (VZR1800Z L1 E28) Diagram

#

Description
Price

1

COVER, FRAME HEAD RH (BLACK)

47350-48G50-YVB

$245.79

2

COVER, FRAME HEAD LH (BLACK)

47361-48G50-YVB

Unavailable

3

CUSHION

17798-39G00

$6.49

4

CLIP

09409-06328

$3.23

5

SCREW

03541-0516A

$1.49

6

TAPE, UPPER LH

47352-48G00

Unavailable

7

TAPE, LOWER LH

47353-48G01

Unavailable

8

COVER, FRAME BODY RH (BLACK)

47551-48G50-YVB

$272.76

9

COVER, FRAME BODY LH (BLACK)

47561-48G50-YVB

$272.76

10

SCREW (6X20)

09139-06126

$4.04

11

CUSHION

09320-09016

$1.97

12

CUSHION, UPPER

63191-25C00

$3.05

13

CUSHION, CENTER

17798-39G00

$6.49

14

CUSHION, LOWER RH

47552-48G00

$20.52
