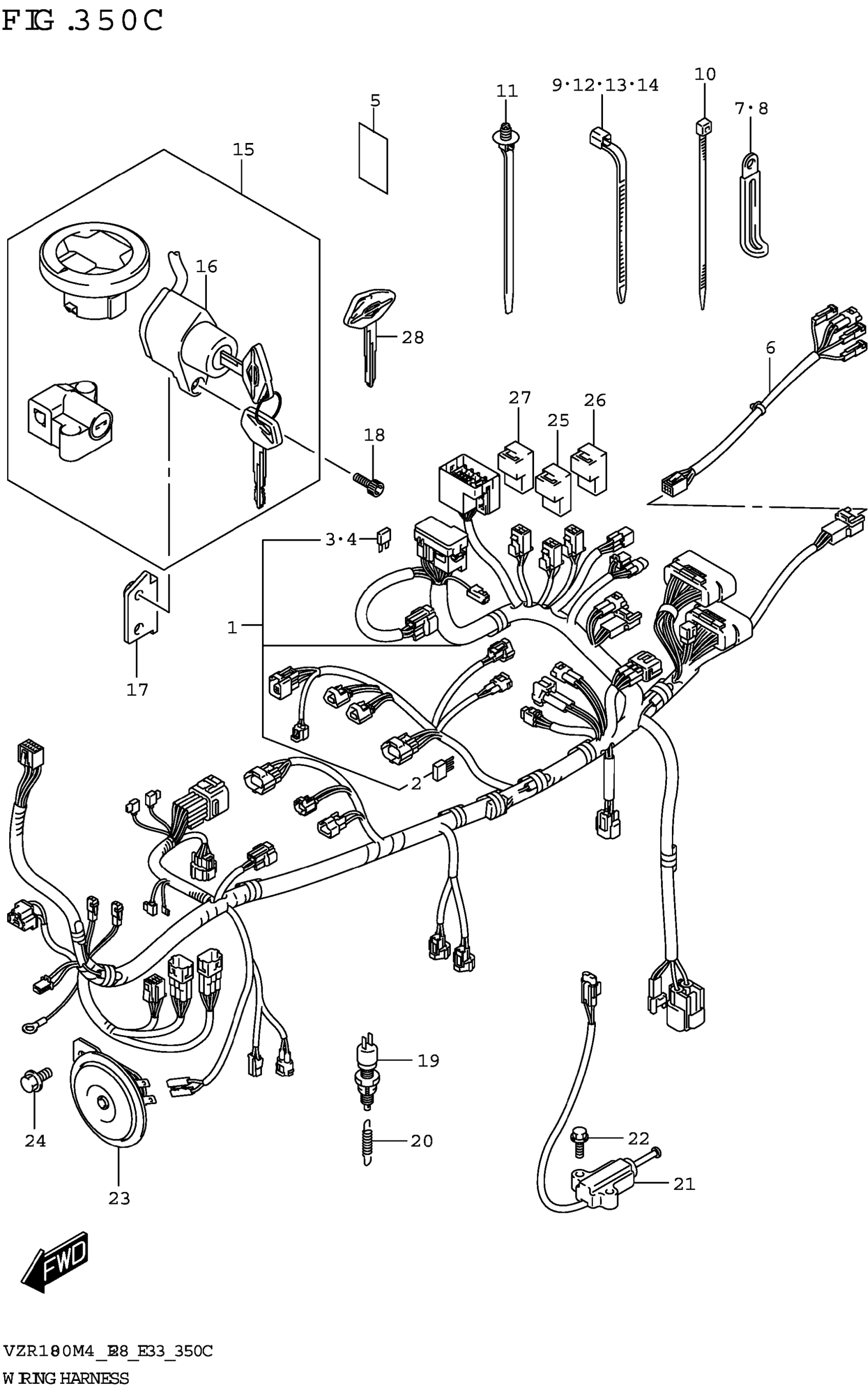

Suzuki VZR1800BZM4 (2024) WIRING HARNESS (E28) Diagram

#

Description
Price

1

HARNESS,WIRING

36610-48GE0

$1,164.97

2

.DIODE

36611-38A10

$13.16

3

.FUSE (10A)

09481-10501

$2.06

4

.FUSE (15A)

09481-15501

$2.02

5

TAPE,HARNESS (28X50X0.13)

36611-16G00

$3.03

6

WIRE,RR COMB

36858-48G01

$72.33

7

CLAMP (L:45)

09404-06429

$1.83

8

CLAMP (L:45)

09404-06429

$1.83

9

CLAMP (L:125)

09407-14403

$2.26

10

CLAMP (L:145)

09407-14407

$3.57

11

CLAMP (L:170)

09407-17403

$4.91

12

CLAMP (L:165)

09407-18402

$2.19

13

CLAMP (L:190)

09407-19401

$3.05

14

CLAMP (L:235)

09407-25401

$4.66

15-1

LOCK SET | VZR1800 This part replaces 37000-48891.

37000-48893

$287.59

15-2

LOCK SET | VZR1800BZ This part replaces 37000-49891.

37000-49893

$294.85

16

.LOCK ASSY,STEERING | VZR1800BZ This part replaces 37110-48G50.

37110-48G51

$109.55

17

BRACKET,IGNITION SWITCH

37119-48G00

$8.93

18

BOLT This part replaces 07130-0616A.

07130-0616B

$2.39

19

SWITCH ASSY,STOP LAMP

37740-24A00

$18.20

20

SPRING

09443-06077

$5.60

21

SWITCH ASSY,SIDE STAND This part replaces 37840-25D01.

37840-25D02

$60.37

22

BOLT (6X25)

01550-0625A

$1.97

23

HORN ASSY

38500-48G01

$87.70

24

BOLT (8X12)

01550-0812A

$2.32

25

RELAY ASSY | FUEL PUMP

38740-24X50

$45.20

26

RELAY ASSY | FAN MOTOR

38740-24X50

$45.20

27

RELAY ASSY | HEADLAMP

38740-24A00

$63.30

28

KEY,BLANK (BOULEVARD) | OPT

37146-10F00

$50.63
