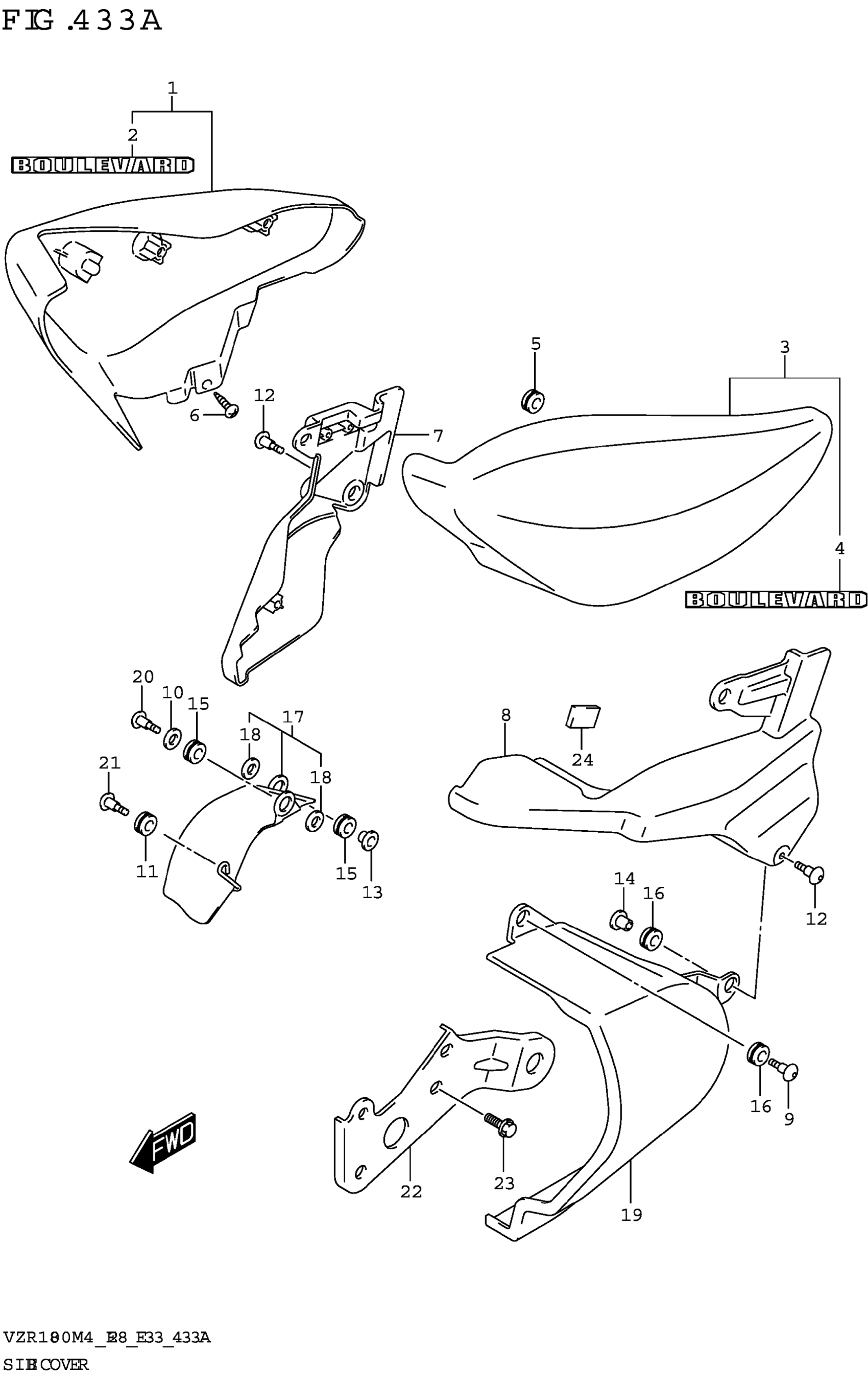

Suzuki VZR1800BZM4 (2024) SIDE COVER (VZR1800) Diagram

#

Description
Price

1

COVER,SIDE RH (BLACK)

47110-48GE0-YVB

$158.62

2

.EMBLEM,"BOULEVARD" (GRAY)

68131-48G20-YLF

$12.75

3

COVER,SIDE LH (BLACK)

47210-48GE0-YVB

$158.62

4

.EMBLEM,"BOULEVARD" (GRAY)

68131-48G20-YLF

$12.75

5

CUSHION (8x26x7)

09320-08018

$3.04

6

SCREW

03541-0516A

$1.49

7

COVER,SIDE LOWER RH

47121-48G00

$38.83

8

COVER,SIDE LOWER LH

47221-48G00

$38.12

9

SCREW (6X20)

09139-06126

$4.04

10

WASHER (10.5X20X2.3)

09160-10123

$2.12

11

CUSHION (9X18X10)

09320-09501

$2.03

12

SCREW (6X25)

09139-06029

$5.36

13

SPACER (6.5X10X11.6)

09180-06319

$3.85

14

WASHER

09169-06075

$3.68

15

CUSHION (8.5X20X8)

09320-08510

$1.97

16

CUSHION

09320-08070

$11.57

17

COVER,LOWER RH

47130-48G00

$318.02

18

.WASHER,FRAME COVER

47523-41F00

Unavailable

19

COVER,LOWER LH

47231-48GB0

$562.38

20

SCREW (6X20)

09139-06126

$4.04

21

SCREW (6X20)

09139-06126

$4.04

22

BRACKET,LOWER COVER LH

47250-48G00

Unavailable

23

BOLT

01550-0612A

$1.97

24

CUSHION,FUEL LID (10X20X3)

47376-20E00

$1.80
