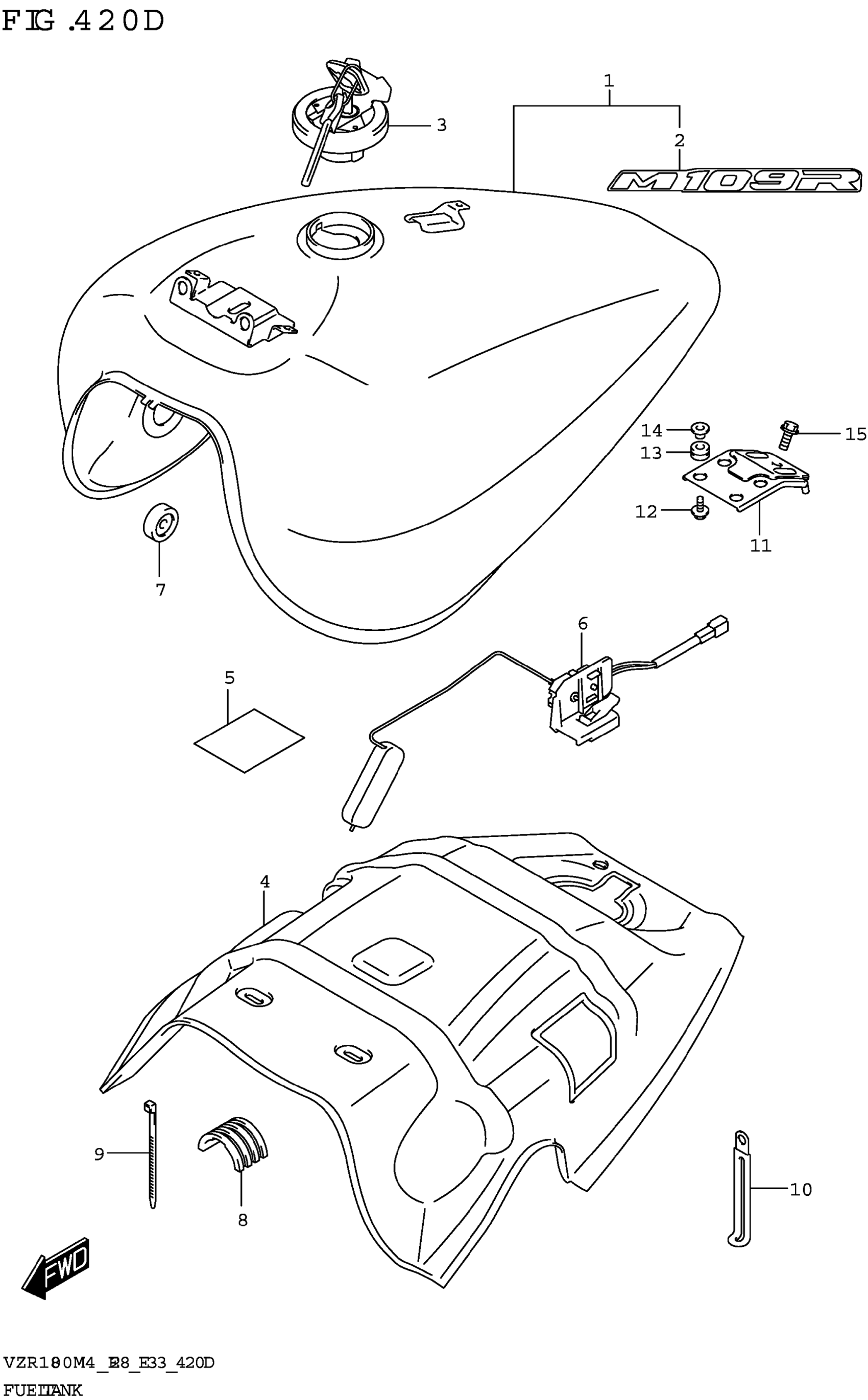

Suzuki VZR1800BZM4 (2024) FUEL TANK (VZR1800BZ:E33)(AV4) Diagram

TANK ASSY,FUEL (RED)

49100-48GA0-YYG

$1,277.12

.EMBLEM,"M109R" (BLACK)

68111-48G60-YVB

$19.80

CAP SET,FUEL TANK

44200-39871

$237.20

SHIELD,FUEL TANK HEAT

44191-48G10

$336.25

TAPE,HEAT SHIELD

44192-48G00

$15.18

GAUGE ASSY,FUEL This part replaces 34810-48G00.

34810-48G01

$61.74

CUSHION

09329-10026

$2.23

CUSHION, FUEL TANK

44541-13E10

$26.73

CLAMP (L:300)

09407-30402

$4.11

CLAMP (L:80)

09404-06436

Unavailable

BRACKET,FUEL TANK REAR

44530-48G10

$47.07

BOLT (6X20)

09116-06192

$2.30

CUSHION (8X18X10)

09320-08527

$2.06

WASHER (6.3X17X1.6)

09169-06062

$2.50

BOLT (8X16)

01550-0816A

$2.32

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | NOTE 1: FOR AV4

SPECIAL NOTE

Unavailable
