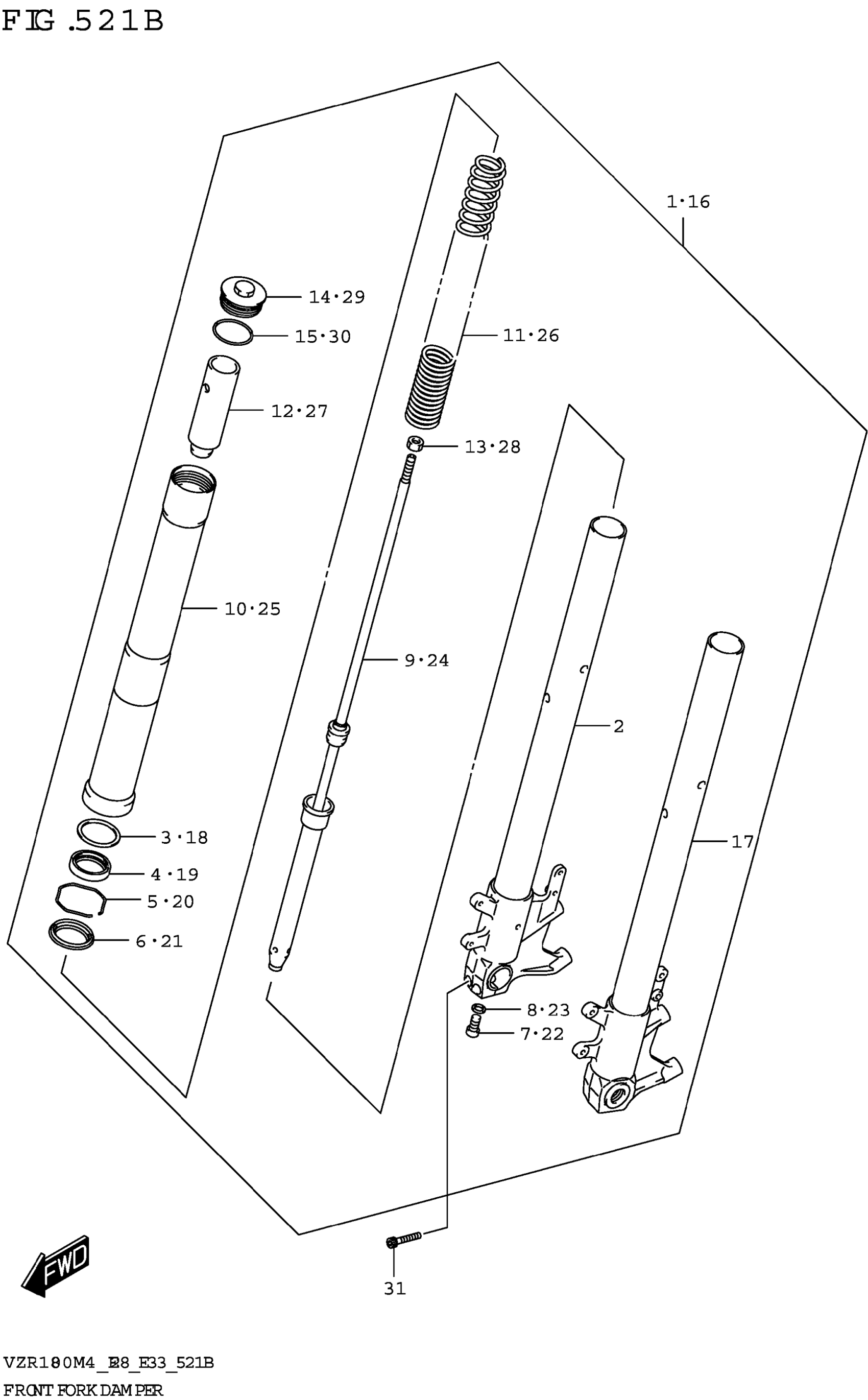

Suzuki VZR1800BZM4 (2024) FRONT FORK DAMPER Diagram

#

Description
Price

1

DAMPER ASSY,FR FORK,RH

51103-48G31

$1,435.33

2

.TUBE,INNER RH

51110-48G30

$868.82

3

.WASHER

51158-27C00

$6.19

4

.SEAL,OIL

51153-48G00

$25.17

5

.RING,STOPPER

51156-27C00

$5.98

6

.SEAL,DUST

51173-42F00

$26.58

7

.BOLT

51147-05H00

$5.40

8

.GASKET

51148-41310

$2.26

9

.CYLINDER

51146-48G20

Unavailable

10

.TUBE,OUTER

51130-48G30

Unavailable

11

.SPRING,FRONT

51171-48G20

$108.50

12

.SPACER,SPRING

51176-21H00

$27.40

13

.NUT, ROD

51352-13A60

$3.03

14

.CAP

51351-48G30

Unavailable

15

..O RING

51117-48G01

$3.05

16

DAMPER ASSY,FR FORK,L

51104-48G31

$1,550.15

17

.TUBE,INNER LH

51120-48G30

$868.82

18

.WASHER

51158-27C00

$6.19

19

.SEAL,OIL

51153-48G00

$25.17

20

.RING,STOPPER

51156-27C00

$5.98

21

.SEAL,DUST

51173-42F00

$26.58

22

.BOLT

51147-05H00

$5.40

23

.GASKET

51148-41310

$2.26

24

.CYLINDER

51146-48G20

Unavailable

25

.TUBE,OUTER

51130-48G30

Unavailable

26

.SPRING,FRONT

51171-48G20

$108.50

27

.SPACER,SPRING

51176-21H00

$27.40

28

.NUT, ROD

51352-13A60

$3.03

29

.CAP

51351-48G30

Unavailable

30

..O RING

51117-48G01

$3.05

31

BOLT,HOLDER HANDLE UPPER

51328-39G20

$11.77
