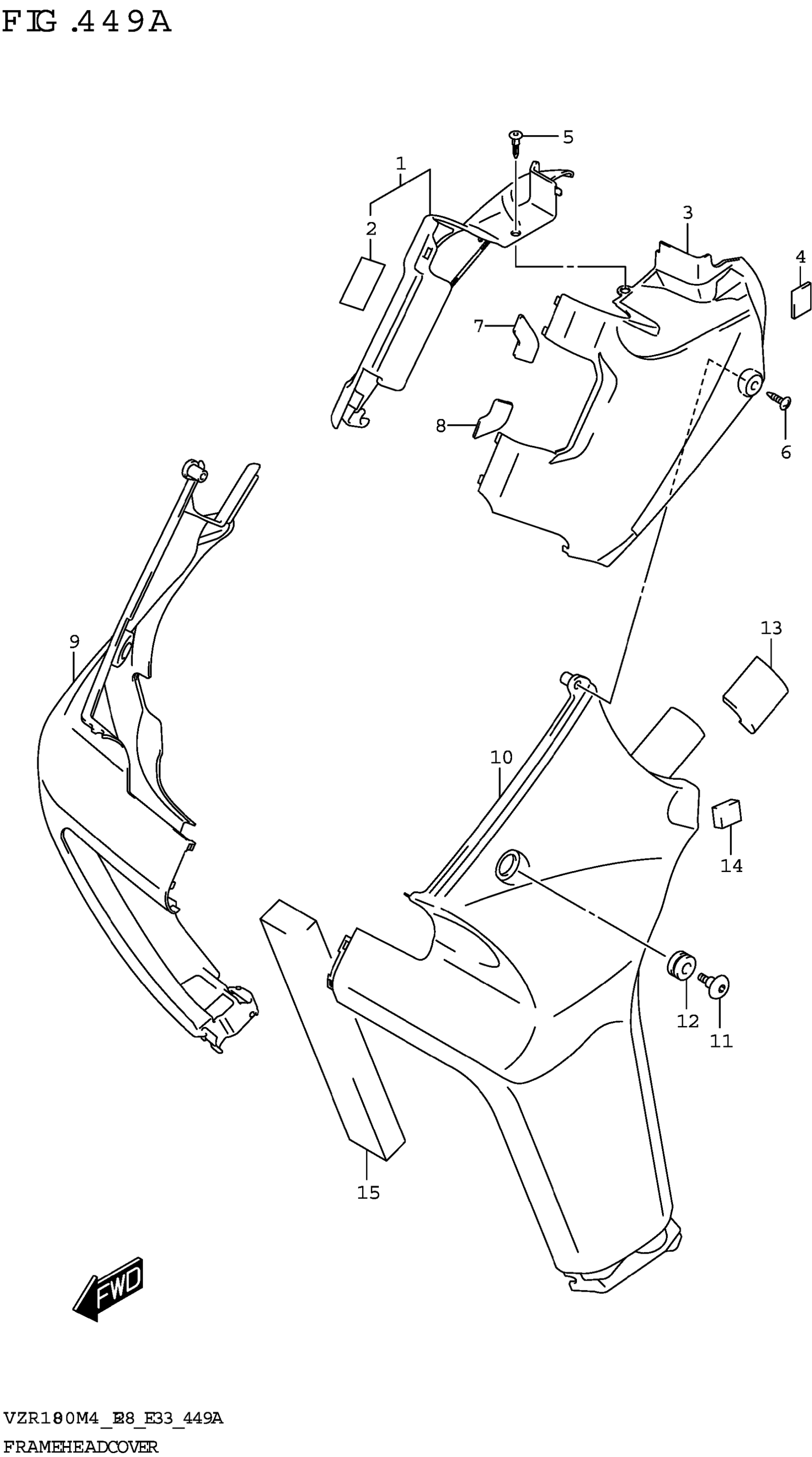

Suzuki VZR1800BZM4 (2024) FRAME HEAD COVER (VZR1800) Diagram

#

Description

Price

1

COVER,FRAME HEAD RH (BLACK)

47350-48G00-YVB

$198.78

2

.PROTECTOR (35X60)

89445-61J00

$9.90

3

COVER,FRAME HEAD LH (BLACK)

47361-48G00-YVB

$198.78

4

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.49

5

CLIP

09409-06328

$3.23

6

SCREW

03541-0516A

$1.49

7

TAPE,HEAD COVER UPPER

47352-48G00

Unavailable

8

TAPE,HEAD COVER LOWER

47353-48G01

Unavailable

9

COVER,FRAME BODY UP RH (BLACK

47551-48G00-YVB

$266.01

10

COVER,FRAME BODY UP LH (BLACK

47561-48G00-YVB

$266.01

11

SCREW (6X20)

09139-06126

$4.04

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

CUSHION This part replaces 44281-29C00.

63191-25C00

$3.05

14

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.49

15

CUSHION,FRAME BODY COVER RH

47552-48G00

$20.52
