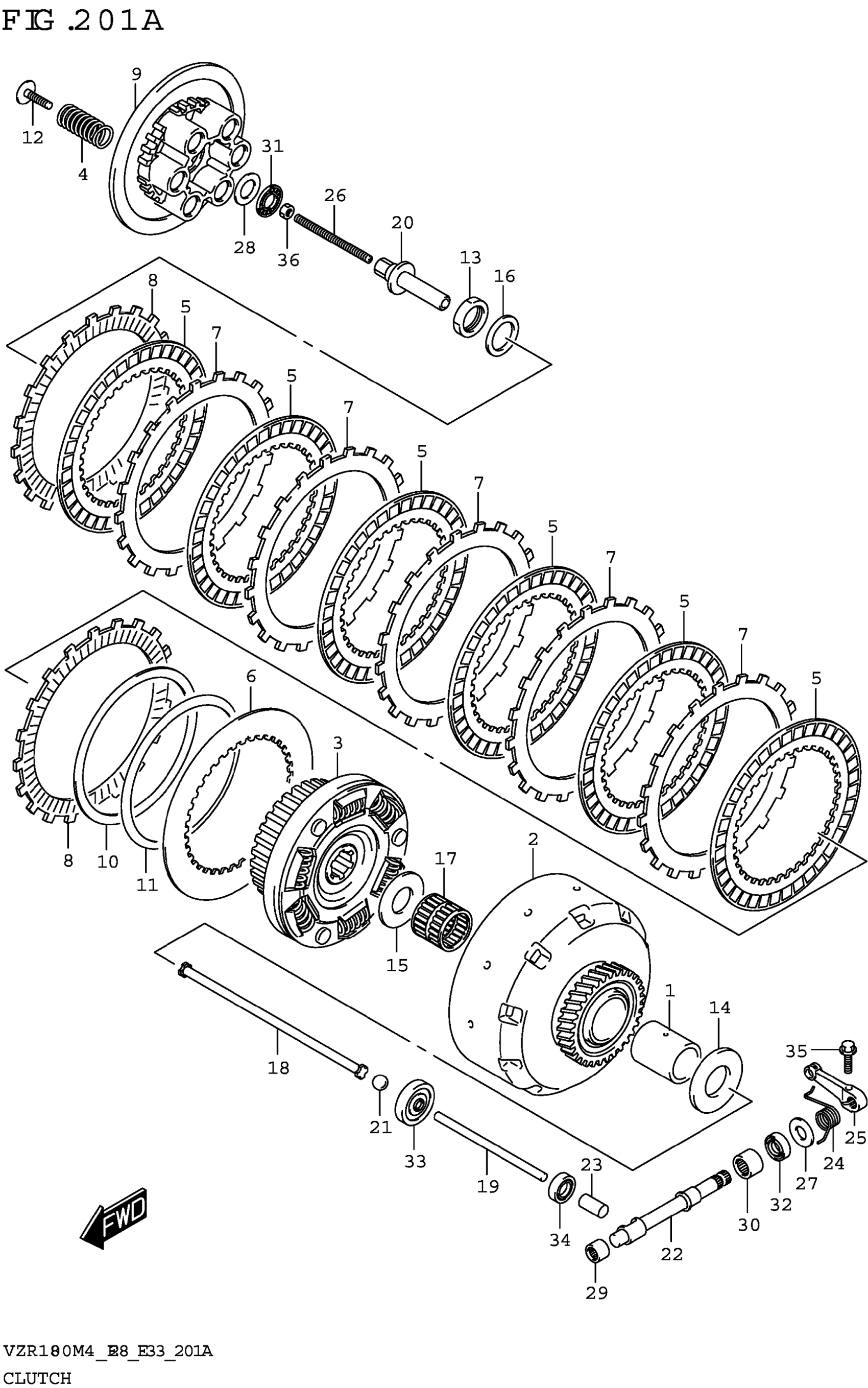

Suzuki VZR1800BZM4 (2024) CLUTCH Diagram

#

Description
Price

1

SPACER,PRIMARY DRIVE GEAR

21151-48G00

$51.63

2

GEAR ASSY,PRIMARY DRIVE (NT:3 | )

21100-48G01

$383.37

3

HUB,CLUTCH

21410-48G10

$485.47

4

SPRING,CLUTCH

21413-35F10

$6.80

5

PLATE,CLUTCH DRIVE NO.1 (T:3. | )

21441-22H00

$47.79

6

PLATE,CLUTCH DRIVE NO.2 (T:2. | )

21441-48G40

$18.06

7

PLATE,CLUTCH DRIVEN NO.1 (T:2 | 3)

21451-22H00

$20.09

8

PLATE,CLUTCH DRIVEN NO.2 (T:3 | 4)

21451-48G10

$35.20

9

DISC,CLUTCH PRESSURE

21462-48G00

$61.62

10

SEAT,WAVE WASHER (109X124X1.6

21471-48G00

$13.59

11

WASHER,CLUTCH PLATE WAVE

21472-48G10

$24.88

12

BOLT,CLUTCH SPRING

21482-41G00

$2.81

13

NUT

09159-24010

$12.27

14

.WASHER (25X50X2.5)

09160-25056

$10.94

15

.WASHER (25X50X2.5)

09160-25056

$10.94

16

WASHER (24.2X35X2.7)

09164-24008

$5.00

17

BEARING (32X37X38.3)

09263-32020

$50.87

18

ROD,CLUTCH (L:195.5)

23110-24F00

$21.87

19

ROD,CLUTCH PUSH,L

23111-48G00

$22.30

20

PIECE,CLUTCH PUSH

23121-41G00

$55.32

21

BALL,CLUTCH PUSH PIECE

23122-02FR0

$100.95

22

CAMSHAFT,CLUTCH RELEASE

23122-48G00

$66.67

23

CAP,CLUTCH PUSH ROD

23123-41G00

$10.46

24

SPRING,CLUTCH RELEASE RETURN

23125-48G00

$4.47

25

ARM,CLUTCH RELEASE

23271-48G00

$86.48

26

SCREW (6X73)

09134-06015

$6.44

27

WASHER (10.5X24X1.0)

09160-10020

$1.93

28

WASHER (15.5X28X1)

09160-15045

$3.62

29

BEARING (10X14X10)

09263-10014

$12.57

30

BEARING (12X18X12)

09263-12027

$6.79

31

BEARING (15X28X2)

09263-15003

$7.70

32

SEAL,OIL (10X20X6)

09282-10012

$7.42

33

SEAL,OIL (6X34X10.5)

09283-06010

$15.62

34

SEAL,OIL (10X17X5)

09285-10004

$3.13

35

BOLT

01547-0620A

$2.10

36

NUT

08310-0006A

$1.89
