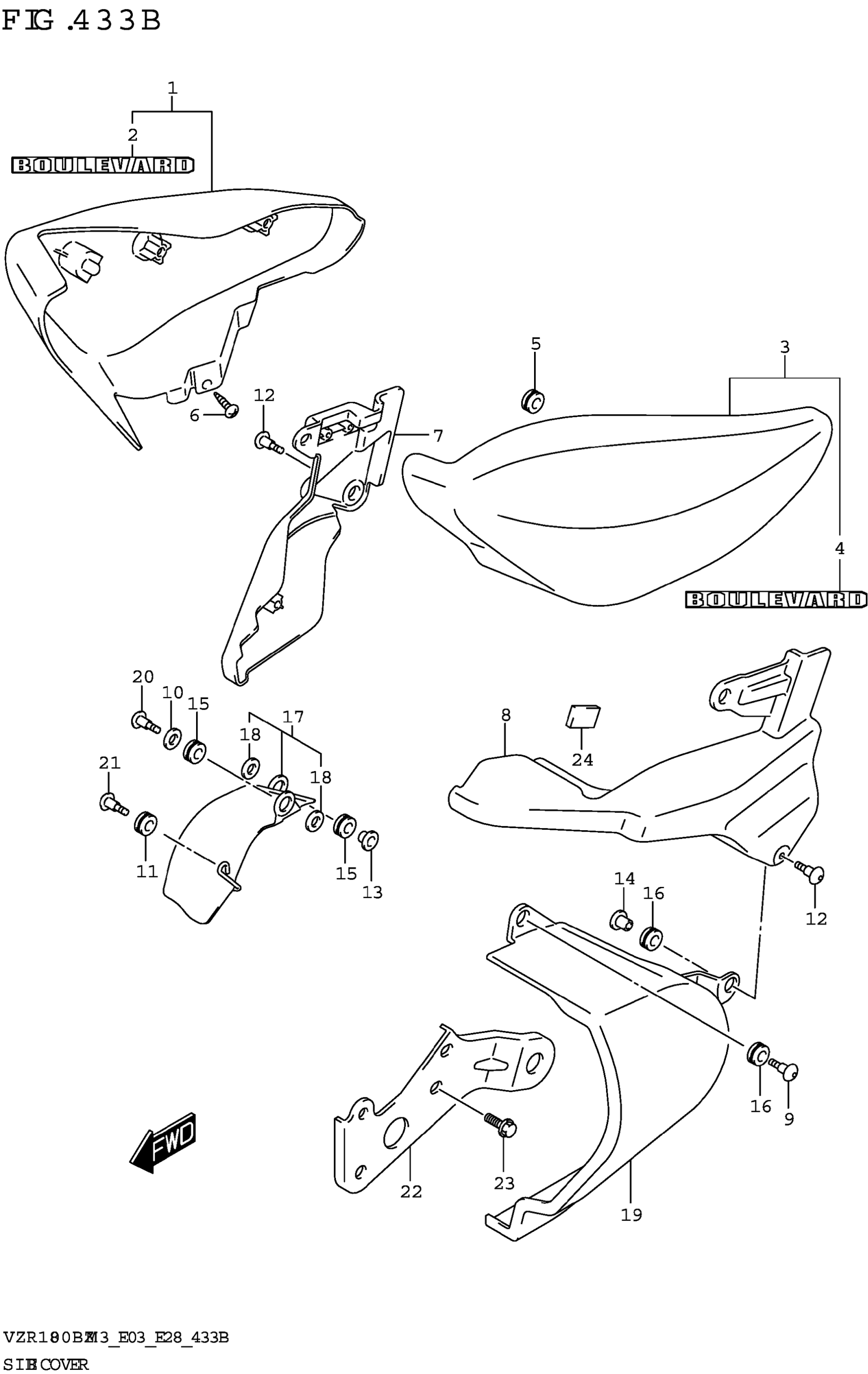

Suzuki VZR1800BZM3 (2023) SIDE COVER Diagram

#

Description
Price

1-1

COVER,SIDE,R (RED) | BODY COLOR:AV4

47110-48GF0-YYG

$247.38

1-2

COVER,SIDE RH (BLACK) | BODY COLOR:KEL

47110-48GF0-YVB

$275.20

2-1

.EMBLEM,"BOULEVARD" (BLACK,RE | ) BODY COLOR:AV4

68131-48G30-AV4

$18.45

2-2

.EMBLEM,"BOULEVARD" (GRAY,BLA | K) BODY COLOR:KEL

68131-48G30-AA3

$14.72

3-1

COVER,SIDE,L (RED) | BODY COLOR:AV4

47210-48GF0-YYG

$247.38

3-2

COVER,SIDE LH (BLACK) | BODY COLOR:KEL

47210-48GF0-YVB

$275.20

4-1

.EMBLEM,"BOULEVARD" (BLACK,RE | ) BODY COLOR:AV4

68131-48G30-AV4

$18.45

4-2

.EMBLEM,"BOULEVARD" (GRAY,BLA | K) BODY COLOR:KEL

68131-48G30-AA3

$14.72

5

CUSHION (8x26x7)

09320-08018

$3.04

6

SCREW

03541-0516A

$1.49

7

COVER,SIDE LOWER RH

47121-48G00

$38.83

8

COVER,SIDE LOWER LH

47221-48G00

$38.12

9

SCREW (6X20)

09139-06126

$4.04

10

WASHER (10.5X20X2.3)

09160-10123

$2.12

11

CUSHION (9X18X10)

09320-09501

$2.03

12

SCREW (6X25)

09139-06029

$5.36

13

SPACER (6.5X10X11.6)

09180-06319

$3.85

14

WASHER

09169-06075

$3.68

15

CUSHION (8.5X20X8)

09320-08510

$1.97

16

CUSHION

09320-08070

$11.57

17

COVER,LOWER RH

47130-48G50

$302.92

18

.WASHER,FRAME COVER

47523-41F00

Unavailable

19

COVER,LOWER LH

47231-48G50

$525.68

20

SCREW (6X20)

09139-06126

$4.04

21

SCREW (6X20)

09139-06126

$4.04

22

BRACKET,LOWER COVER LH

47250-48G00

Unavailable

23

BOLT

01550-0612A

$1.97

24

CUSHION,FUEL LID (10X20X3)

47376-20E00

$1.80
