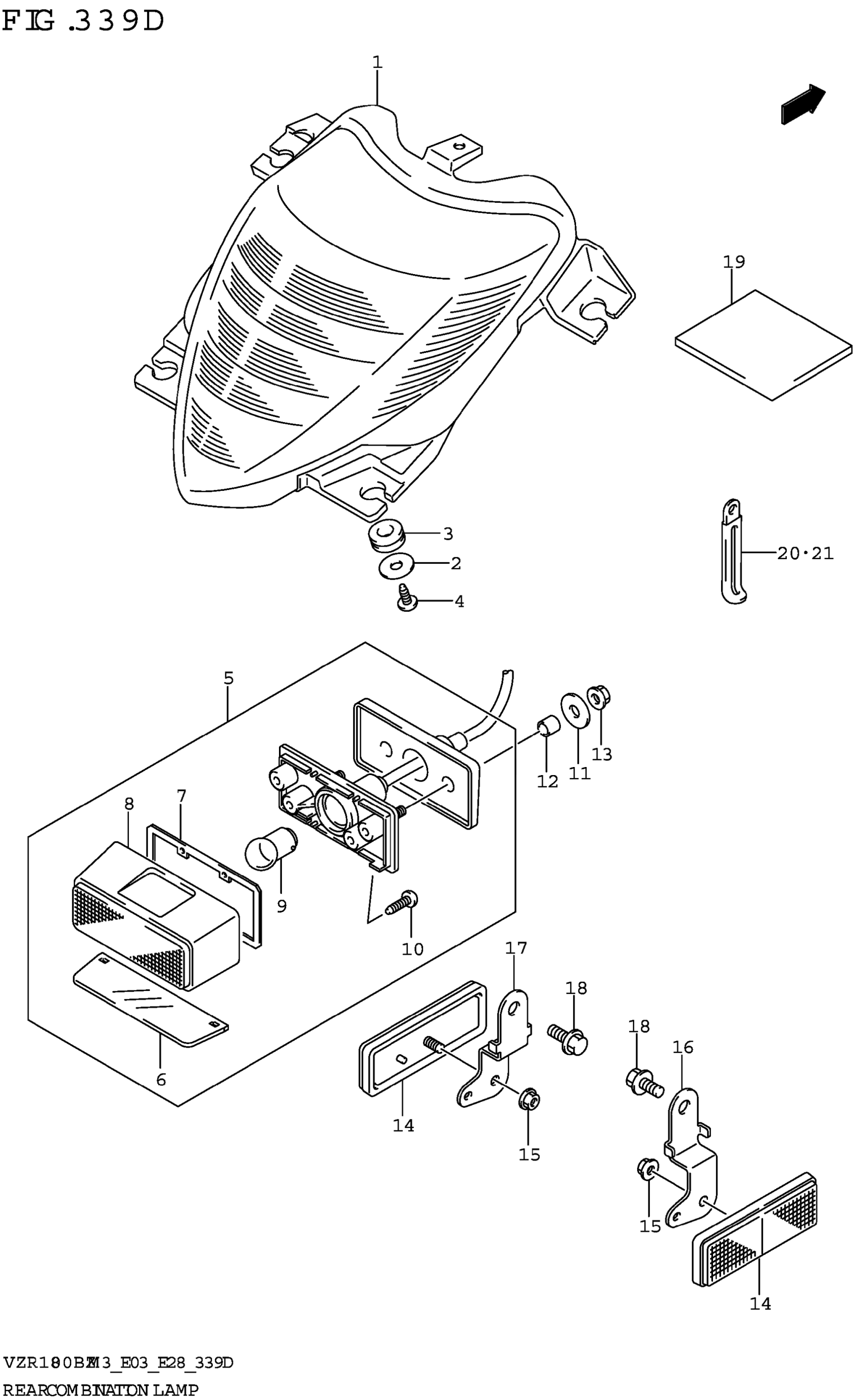

Suzuki VZR1800BZM3 (2023) REAR COMBINATION LAMP Diagram

#

Description
Price

1

LAMP ASSY,REAR COMB

35710-48G70

$461.60

2

WASHER (5.5X20X1.2)

09160-05501

$1.86

3

CUSHION

09320-10073

$2.12

4

SCREW

03541-0512A

$1.37

5

LAMP ASSY,LICENSE

35910-41G02

$83.48

6

.LENS,LICENSE LAMP

35912-41G01

$14.98

7

.GASKET

35913-41G00

$16.07

8

.COVER,LICENSE LAMP

35917-41G00

$39.85

9

BULB (12V5W) This part replaces 09471-12140.

09471-12058

$2.19

10

.SCREW

03211-0416A

$1.43

11

WASHER (6.5X20X1.2)

09160-06077

$1.89

12

SPACER (6.5X9X8)

09180-06261

$1.89

13

NUT (6X12)

08316-1006A

$2.19

14

REFLECTOR ASSY,RR

35970-07F01

$19.11

15

NUT

08316-1005A

$2.19

16

BRACKET,REAR SIDE RR RH

35975-48G00

Unavailable

17

BRACKET,REAR SIDE RR LH

35976-48G00

$8.37

18

SCREW

02162-0612A

$1.93

19

CUSHION,HELMET BOX (60X60X3.0

92213-33G00

$7.95

20

CLAMP

09404-10420

$1.75

21

CLAMP (L:45)

09404-06429

$1.82
