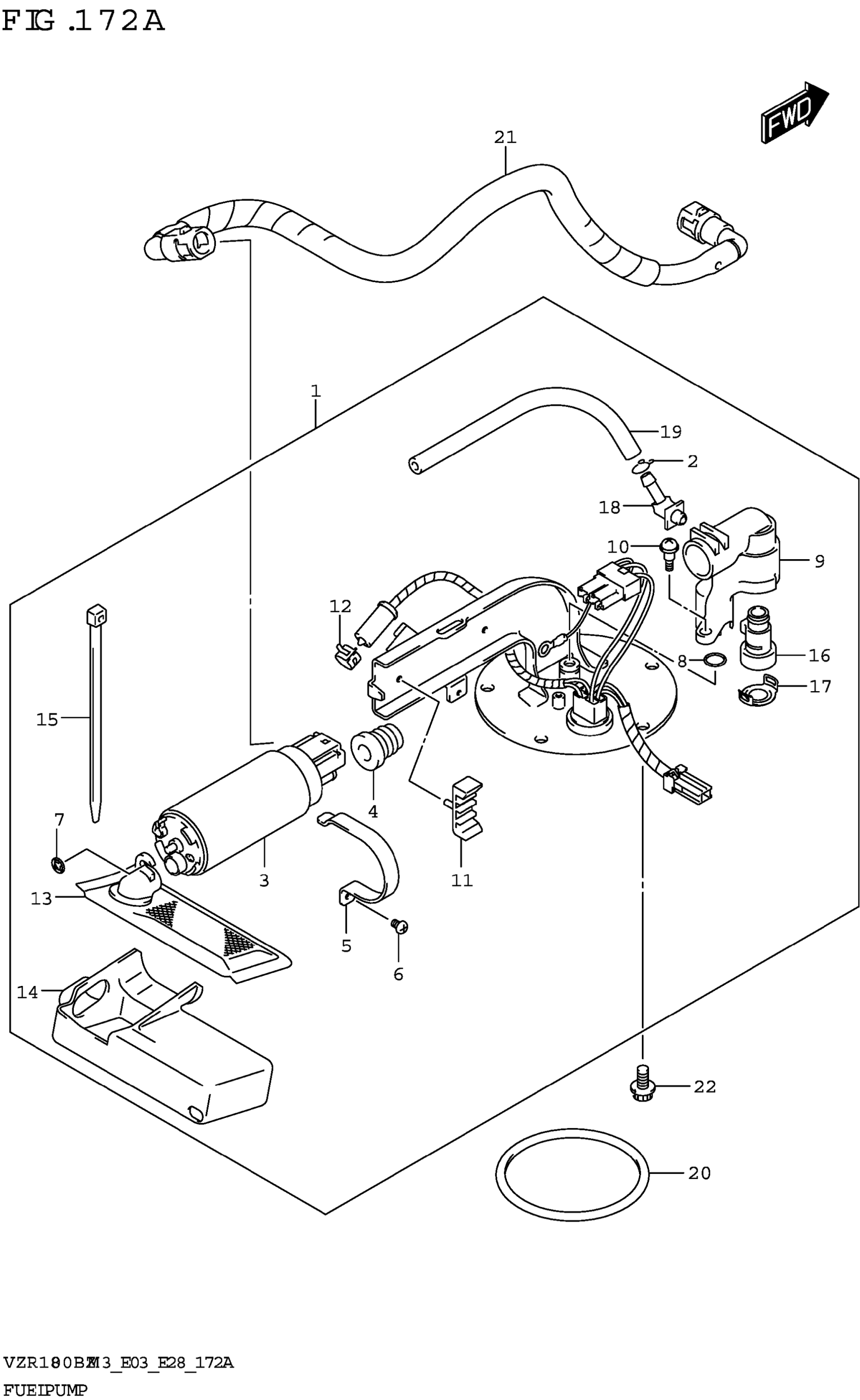

Suzuki VZR1800BZM3 (2023) FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY,FUEL

15100-48G11

$813.90

2

CLIP

13693-24F00

$3.62

3

.PUMP,FUEL

15110-48G00

$508.25

4

.INSULATOR

15114-48G01

$23.10

5

.HOLDER

15115-14G00

Unavailable

6

.SCREW

15116-48G00

$6.30

7

.PLATE

15119-14G00

$6.08

8

.O RING

15125-48G00

$16.10

9

.ADAPTER

15131-48G00

Unavailable

10

.SCREW

15135-48G00

Unavailable

11

.INSULATOR

15141-48G00

Unavailable

12

.CLAMP

15175-48G00

Unavailable

13

.FILTER

15420-48G00

$113.33

14

.COVER,FILTER

15425-48G00

$72.68

15

.BAND

15426-48G00

$14.47

16

.REGULATOR,PRESSURE

15610-48G00

$224.25

17

.CLIP

15613-48G00

Unavailable

18

.JOINT

15614-48G00

Unavailable

19

.TUBE

15615-48G00

$28.58

20

O-RING

15201-35F00

$25.27

21

HOSE,FUEL

15810-48G01

$111.05

22

BOLT

07120-0612A

$2.50
