2023 Suzuki VZR1800BZM3 Evap System Diagram

← All diagrams

Find the part on the Evap System diagram for your 2023 Suzuki VZR1800BZM3, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

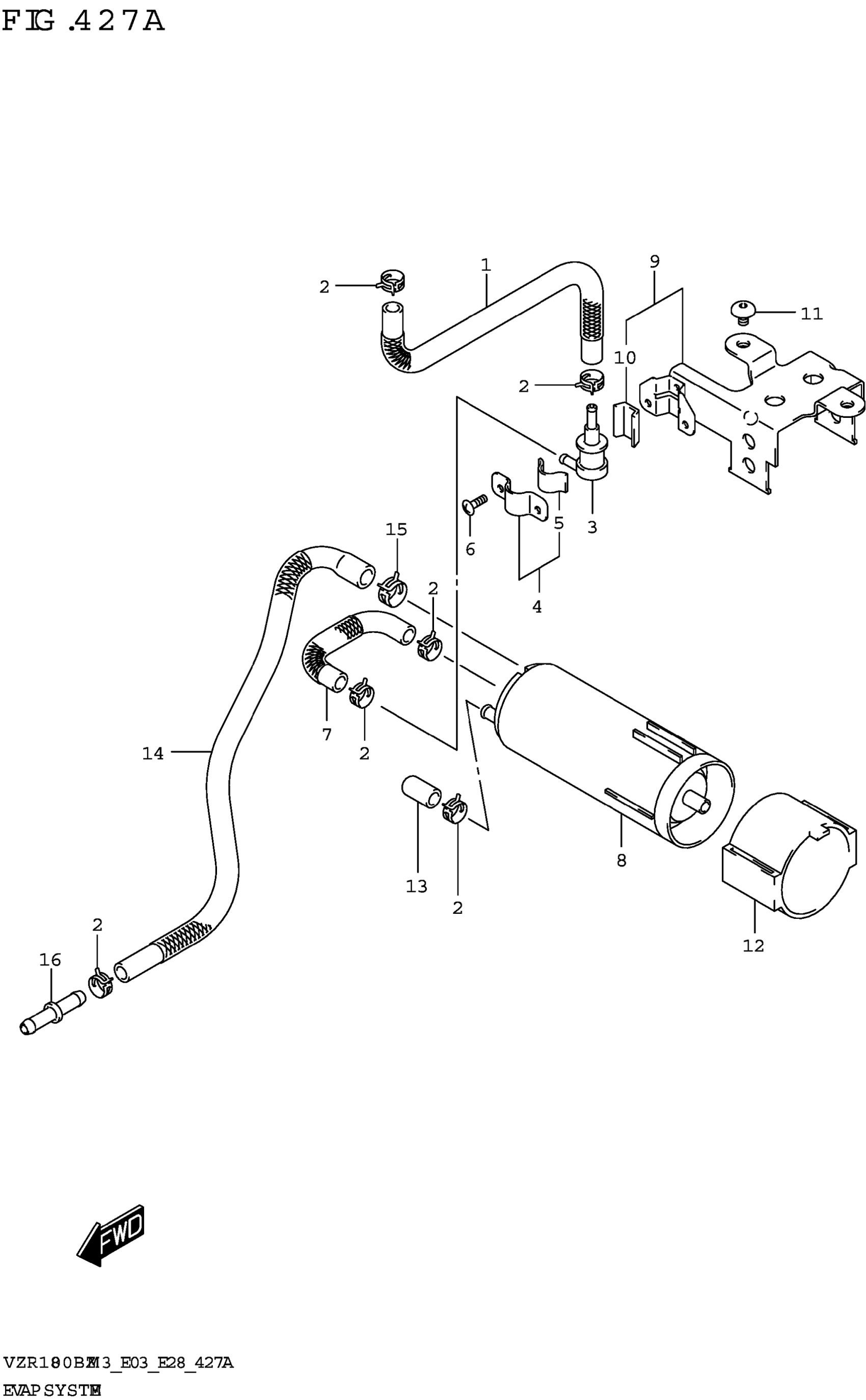

2023 Suzuki VZR1800BZM3 Evap System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOSE,TANK & BRTHR VALVE

44434-48G30

—
Out of stock

2

CLIP (ID:11,H:8)

09401-11413

6
Out of stock

3

VALVE FUEL TANK BREATHER

44240-17C00

1
Out of stock

4

PLATE,FUEL TANK BREATHER NO.2

44892-24A00

1
Out of stock

5

CUSHION (10X30X2)

44894-24A00

1
Out of stock

6

SCREW

02142-0408A

2
Out of stock

7

HOSE,BRTHR VALVE & CSTR

44435-48G20

—
Out of stock

8

CANISTER ASSY CHARCOAL

17210-26E00

1
Out of stock

9

BRACKET,CANISTER

44880-48G00

1
Out of stock

10

CUSHION (10X30X2)

44894-24A00

1
Out of stock

11

SCREW (6X12)

09139-06108

2
Out of stock

12

CUSHION,CANISTER

44883-48G00

1
Out of stock

13

CAP

09251-07005

1
Out of stock

14

HOSE,CSTR PURGE

44436-48G20

—
Out of stock

15

CLIP (ID:12)

09401-12404

1
Out of stock

16

JOINT

09367-06009

1
Out of stock
