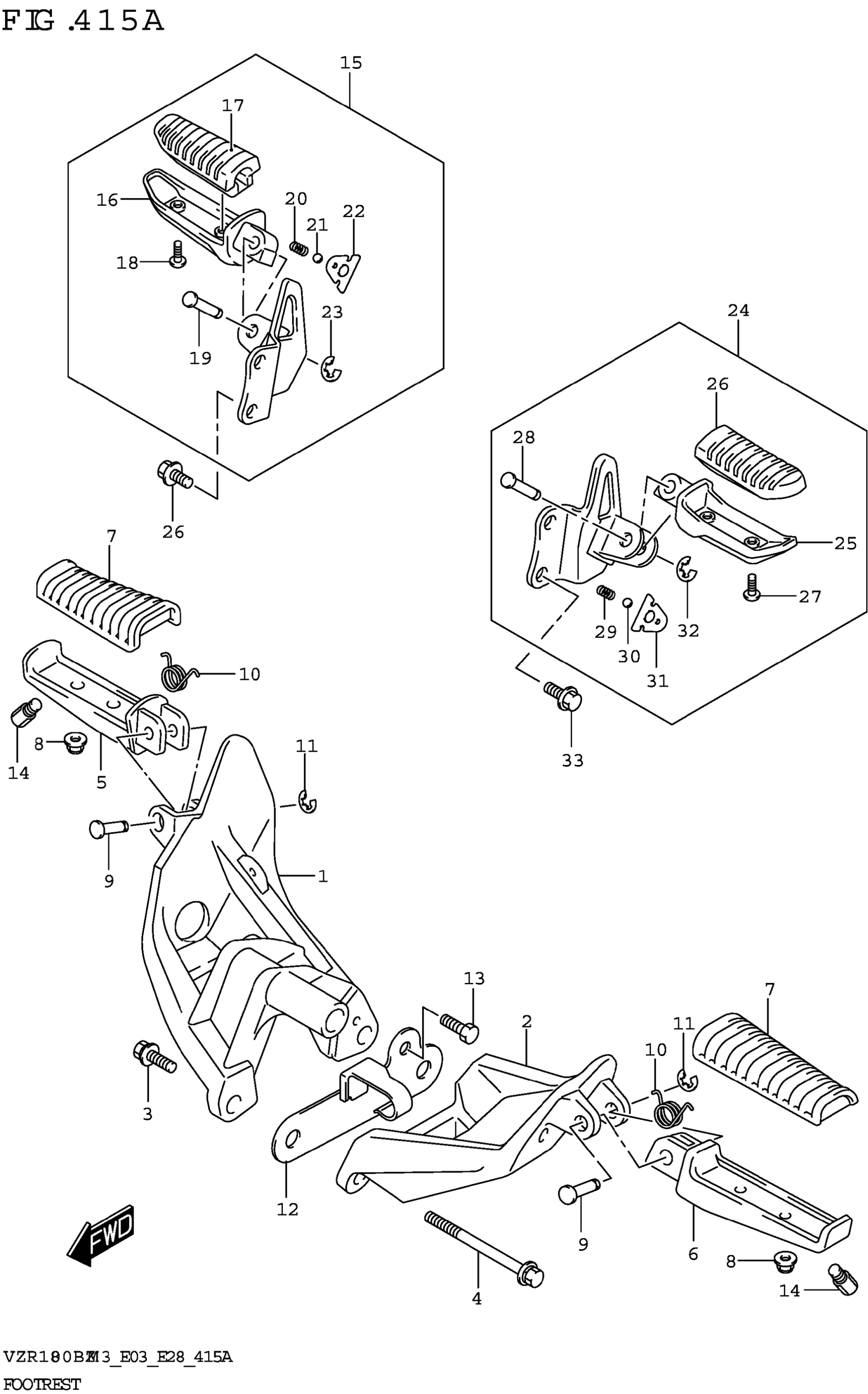

Suzuki VZR1800BZM3 (2023) FOOTREST Diagram

#

Description
Price

1

BRACKET,FR FOOTREST RH

43511-48G10

$270.67

2

BRACKET,FR FOOTREST LH

43521-48G01

$477.90

3

BOLT (10X28)

09103-10268

$5.98

4

BOLT (10X85)

09103-10337

$7.10

5

BAR,FRONT FOOTREST RH

43531-48G01

$53.23

6

BAR,FRONT FOOTREST LH

43541-48G01

$51.92

7

RUBBER,FR FOOTREST

43550-48G00

$27.50

8

.NUT

08319-2106A

$1.89

9

PIN

09208-08019

$2.77

10

SPRING

09448-14047

$3.84

11

E-RING

08332-1106A

$1.43

12

PLATE,FOOTREST BRACKET

43560-48G00

$35.78

13

BOLT

01500-0612A

$1.80

14

.BOLT,BANK SENSOR

43576-07D01

$8.10

15

FOOTREST ASSY,PILLION RH

43600-48G00

$197.60

16

.BAR,PILLION FOOTREST RH

43611-44G00

$61.88

17

.RUBBER,FOOTREST

43550-44G00

$40.13

18

.SCREW

02142-05127

$1.97

19

PIN

09208-08017

$3.67

20

SPRING

09440-05005

$1.45

21

BALL

06111-07004

$1.22

22

.PLATE,PILLION RH

43816-44G00

$4.71

23

E-RING

08332-1106A

$1.43

24

FOOTREST ASSY,PILLION LH

43700-48G00

$197.60

25

.BAR,PILLION FOOTREST LH

43621-44G00

$61.88

26

.RUBBER,FOOTREST

43550-44G00

$40.13

27

.SCREW

02142-05127

$1.97

28

PIN

09208-08017

$3.67

29

SPRING

09440-05005

$1.45

30

BALL

06111-07004

$1.22

31

.PLATE,PILLION RH

43816-44G00

$4.71

32

E-RING

08332-1106A

$1.43

33

BOLT (8X16)

09103-08412

$3.30
