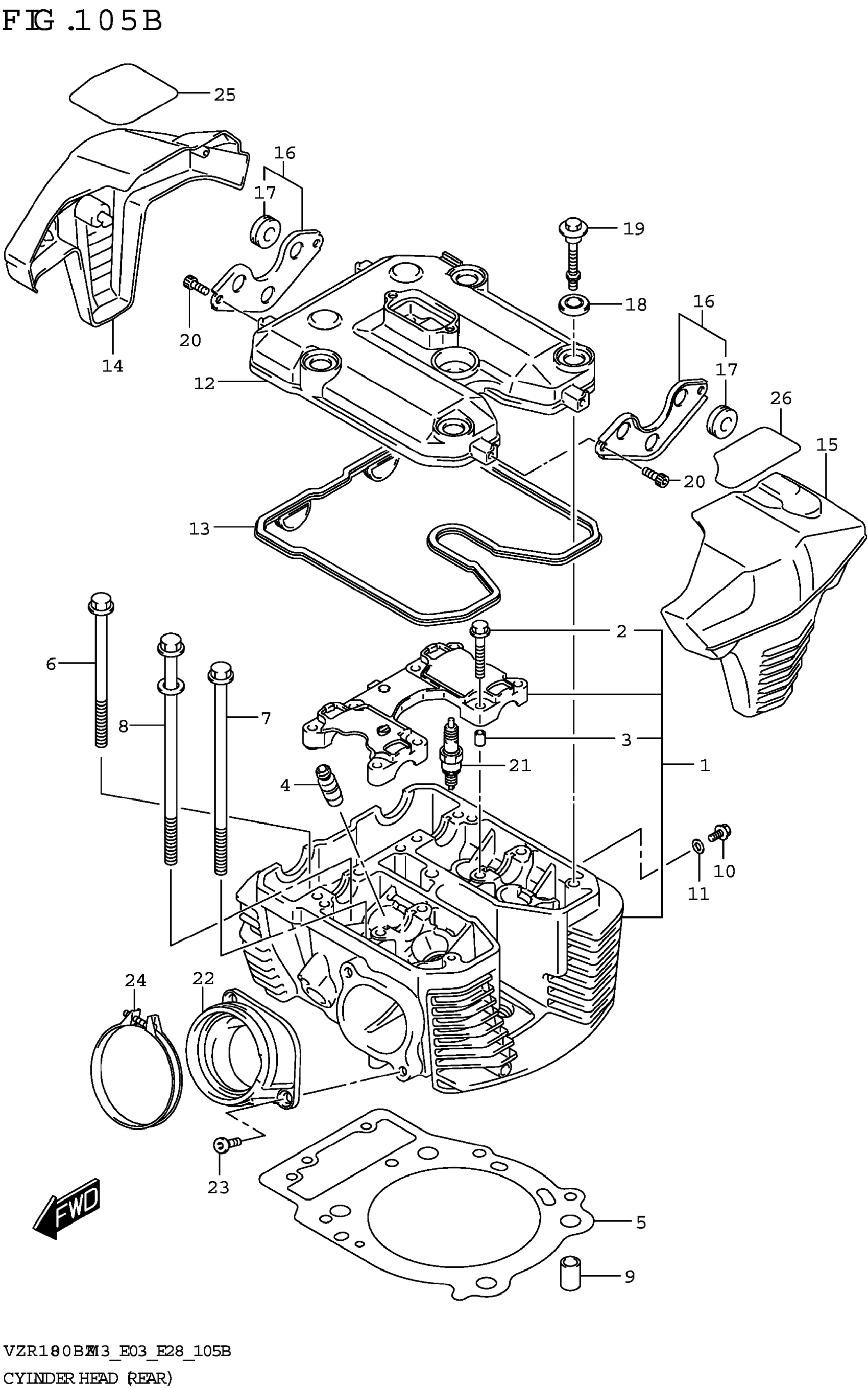

Suzuki VZR1800BZM3 (2023) CYLINDER HEAD (REAR) Diagram

#

Description
Price

1

HEAD ASSY,CYLINDER REAR

11103-48G10

Unavailable

2

BOLT (6X39)

09103-06026

$1.98

3

.PIN (8X11)

09206-08001

$1.78

4

GUIDE,VALVE (OS:0.3) | OPT

11115-65J00-001

$31.95

5

.GASKET,CYLINDER HEAD REAR

11142-48G00

$54.12

6

BOLT (8X140)

09103-08305

$15.92

7

BOLT (8X180)

09103-08415

$11.60

8

BOLT (10X19)

09103-10396

$26.28

9

PIN (10.4X13X18)

04211-13189

$2.19

10

BOLT

01550-0612A

$1.97

11

GASKET (5.8X13X1.2)

09168-06023

$2.35

12

COVER,CYLINDER HEAD

11170-48G00

Unavailable

13

.GASKET,CYL HEAD COVER

11173-48G00

$27.05

14

CAP,CYL HEAD COVER NO.1

11174-48G20

$109.52

15

CAP,CYL HEAD COVER NO.2

11175-48G20

$109.52

16

BRACKET,HEAD COVER CAP

11180-48G01

$9.72

17

CUSHION (8X22X7)

09320-08509

$1.93

18

CUSHION,HEAD COVER BOLT

11192-13E00

$4.34

19

BOLT (6X52)

09111-06091

$22.83

20

BOLT

07130-0612A

$2.50

21-1

SPARK PLUG (CR8EK)

09482-00412

$10.62

21-2

SPARK PLUG (U24ETR)

09482-00413

$13.17

21-3

SPARK PLUG (CR9EK) | OPT

09482-00410

$11.59

21-4

SPARK PLUG (DENSO,U27ESR-N) | OPT This part replaces 09482-00411.

09482-00459

$6.09

21-5

SPARK PLUG (CR7EK) | OPT

09482-00414

$12.50

21-6

SPARK PLUG (U22ETR) | OPT

09482-00415

Unavailable

22

PIPE ASSY,INTAKE

13101-48G01

$97.90

23

BOLT (6X20.5)

09120-06008

$3.05

24

CLAMP,INTAKE PIPE

13170-22H00

Unavailable

25

PROTECTOR,HEAD COVER CAP NO.1

11178-48G00

Unavailable

26

PROTECTOR,HEAD COVER CAP NO.2

11178-48G10

Unavailable
