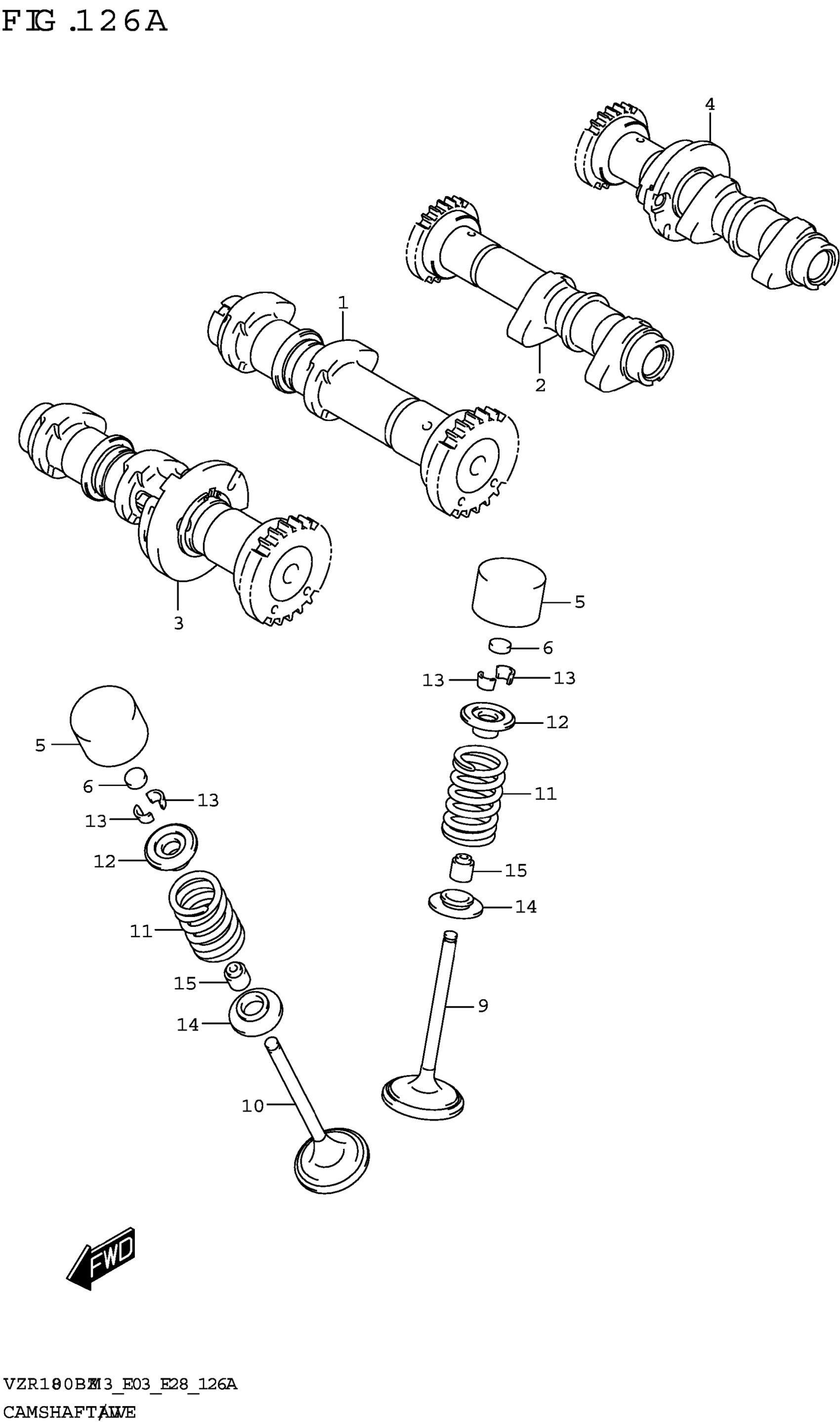

Suzuki VZR1800BZM3 (2023) CAMSHAFT/VALVE Diagram

#

Description
Price

1

CAMSHAFT,INTAKE FRONT (NT:24)

12710-48G00

$296.38

2

CAMSHAFT,INTAKE REAR (NT:24)

12730-48G00

$270.67

3

CAMSHAFT,EXHAUST FRONT (NT:24

12720-22H00

$517.80

4

CAMSHAFT,EXHAUST REAR (NT:24)

12740-22H00

$530.75

5

TAPPET

12891-48G00

$86.82

6-1

SHIM,TAPPET (T:2.30)

12892-41C00-230

$11.38

6-2

SHIM,TAPPET (T:2.35)

12892-41C00-235

$11.83

6-3

SHIM,TAPPET (T:2.40)

12892-41C00-240

$11.83

6-4

SHIM,TAPPET (T:2.45)

12892-41C00-245

$11.83

6-5

SHIM,TAPPET (T:2.50)

12892-41C00-250

$11.83

6-6

SHIM,TAPPET (T:2.55)

12892-41C00-255

$11.83

6-7

SHIM,TAPPET (T:2.60)

12892-41C00-260

$11.38

6-8

SHIM,TAPPET (T:2.65)

12892-41C00-265

$11.38

6-9

SHIM,TAPPET (T:2.70)

12892-41C00-270

$11.38

6-10

SHIM,TAPPET (T:2.75)

12892-41C00-275

$9.69

6-11

SHIM,TAPPET (T:2.80)

12892-41C00-280

$11.38

6-12

SHIM,TAPPET (T:2.85)

12892-41C00-285

$11.83

6-13

SHIM,TAPPET (T:2.90)

12892-41C00-290

$11.38

6-14

SHIM,TAPPET (T:2.95)

12892-41C00-295

$11.83

6-15

SHIM,TAPPET (T:3.00)

12892-41C00-300

$11.60

6-16

SHIM,TAPPET (T:3.05)

12892-41C00-305

$11.83

6-17

SHIM,TAPPET (T:3.10)

12892-41C00-310

$11.38

6-18

SHIM,TAPPET (T:3.15)

12892-41C00-315

Unavailable

6-19

SHIM,TAPPET (T:3.20)

12892-41C00-320

$11.60

6-20

SHIM,TAPPET (T:3.25)

12892-41C00-325

$11.83

6-21

SHIM,TAPPET (T:3.30)

12892-41C00-330

$11.83

6-22

SHIM,TAPPET (T:3.35)

12892-41C00-335

$11.83

6-23

SHIM,TAPPET (T:3.40)

12892-41C00-340

$11.83

6-24

SHIM,TAPPET (T:3.45)

12892-41C00-345

Unavailable

6-25

SHIM,TAPPET (T:3.50)

12892-41C00-350

$11.83

7

SHIM SET,TAPPET (5PCS.EACH) | OPT,NOT ILLUSTRATED

12800-41810

$1,138.37

8

.CASE,TAPPET SHIM | OPT,NOT ILLUSTRATED

99000-69471

Unavailable

9

VALVE,INTAKE

12911-48G10

$50.92

10

VALVE,EXHAUST

12912-48G00

$74.92

11

SPRING,VALVE

12921-48G10

$19.57

12

RETAINER,VALVE SPRING

12931-48G00

$8.42

13

COTTER,VALVE

12932-85FA0

$2.81

14

SEAT,VALVE SPRING

12933-19B00

$8.30

15

SEAL,OIL (6X12.8X10.2)

09289-06003

$7.87
