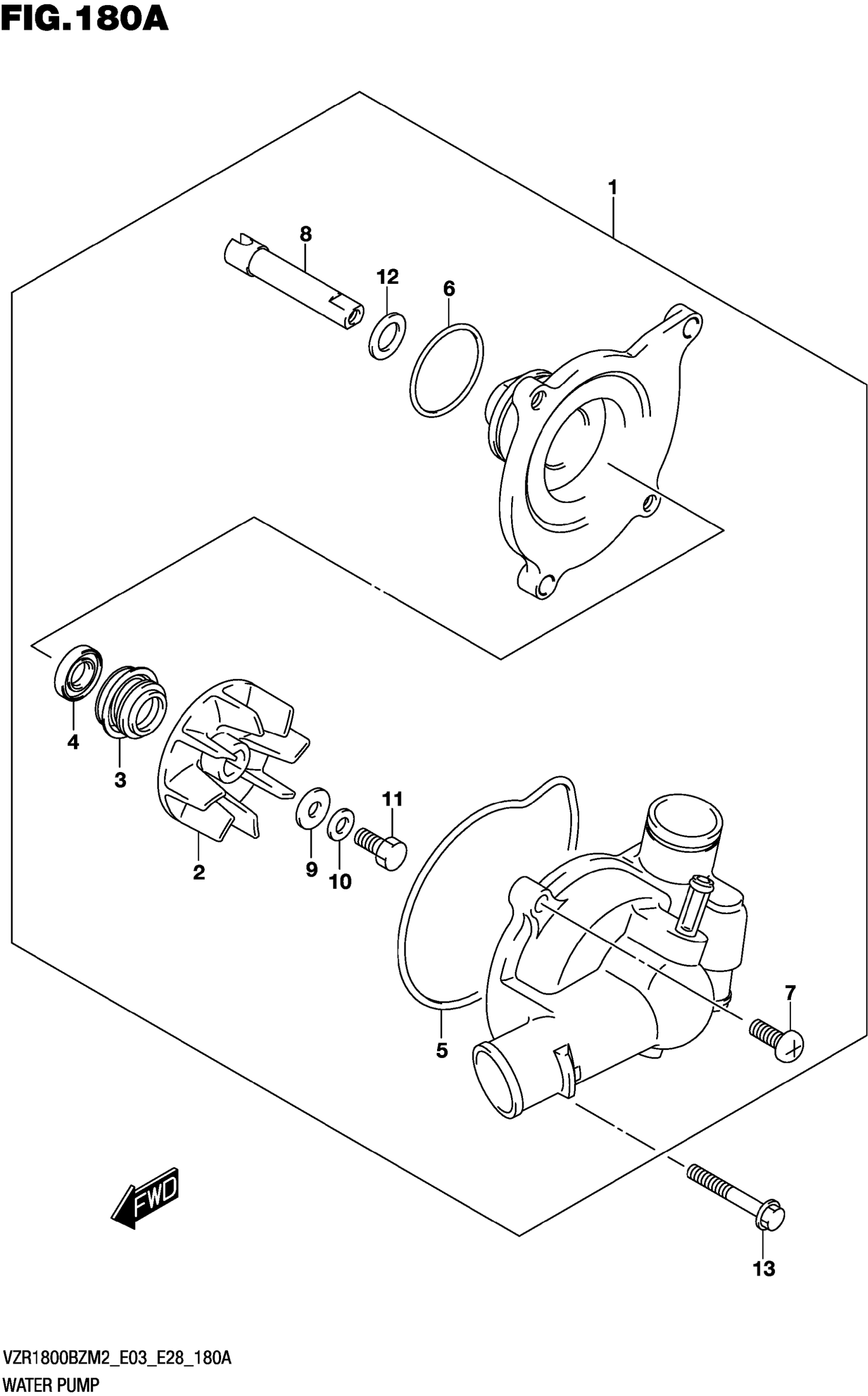

Suzuki VZR1800BZM2 (2022) WATER PUMP Diagram

#

Description
Price

1

PUMP ASSY,WATER

17400-48G01

$353.85

2

.IMPELLER

17491-17E01

$26.78

3

.SEAL,MECHANICAL

17470-02F11

$29.22

4

.SEAL,OIL (10X21X5)

17461-48G00

$13.23

5

.O-RING

17418-33401

$4.48

6

.O-RING

17435-33400

$15.29

7

.SCREW

02112-0616A

$1.49

8

.SHAFT,WATER PUMP

17511-48G00

Unavailable

9

.GASKET (6X15X2.2)

09168-06025

$2.92

10

.WASHER

09164-06006

$2.61

11

.BOLT (6X13)

09100-06099

$2.00

12

.WASHER

17432-07G00

$2.60

13

BOLT

01547-0635A

$2.30
