Description

Price

1

GEAR SET,SECONDARY

24910-48830

$1,046.63

2

BOLT (12X24)

09103-12084

$9.22

3

WASHER (12X35X2.0)

09160-12045

$3.76

4

DOG,OUTPUT CAM

24923-48G10

$145.30

5

STOPPER,CAM SPRING

24924-48G10

Unavailable

6

SPRING,SECONDARY DAMPER

24925-48G00

$57.45

7

STOPPER SECONDARY SET,DRIVEN

24926-48830

$365.62

8

CASE,SECONDARY GEAR

24931-48G30

$425.25

9

SHIM SET,SEC DRIVE | T:0.40/0.45/0.50/0.55/0.60/

24935-48810

$112.01

10

PIPE,SECONDARY CASE,OIL | 0.65/0.70/0.75/0.80

24940-26D00

Unavailable

11

STOPPER,SEC DRIVEN BEARING

24942-26D00

$81.27

12

COUPLING,SEC,DRIVEN BEVEL

24943-48G01

$120.15

13

HOUSING,OIL SEAL

24944-48G00

$59.07

14

SHIM SET,SECONDARY DRIVEN | T:0.30/0.35/0.40/0.50/0.60

24945-48810

$113.37

15

SHAFT,SECONDARY DRIVEN

24961-48G00

$196.77

16

NUT

09159-16003

$4.33

17

WASHER (16.5X36X4.0)

09160-16040

$12.75

18

BEARING (32X48X22)

09263-32012

$122.43

19

O-RING (D:1.7,ID:6)

09280-06008

$2.06

20

O-RING (D:2.4,ID:23.7)

09280-24010

$5.09

21

O-RING (D:3.7,ID:76.5)

09280-78003

$8.20

22

O-RING (D:2.4,ID:90.8)

09280-92003

$21.93

23

OIL SEAL (38X54X6)

09283-38011

$19.48

24

BOLT

01550-0895A

$5.00

25

BOLT (10X30)

09106-10087

$6.75

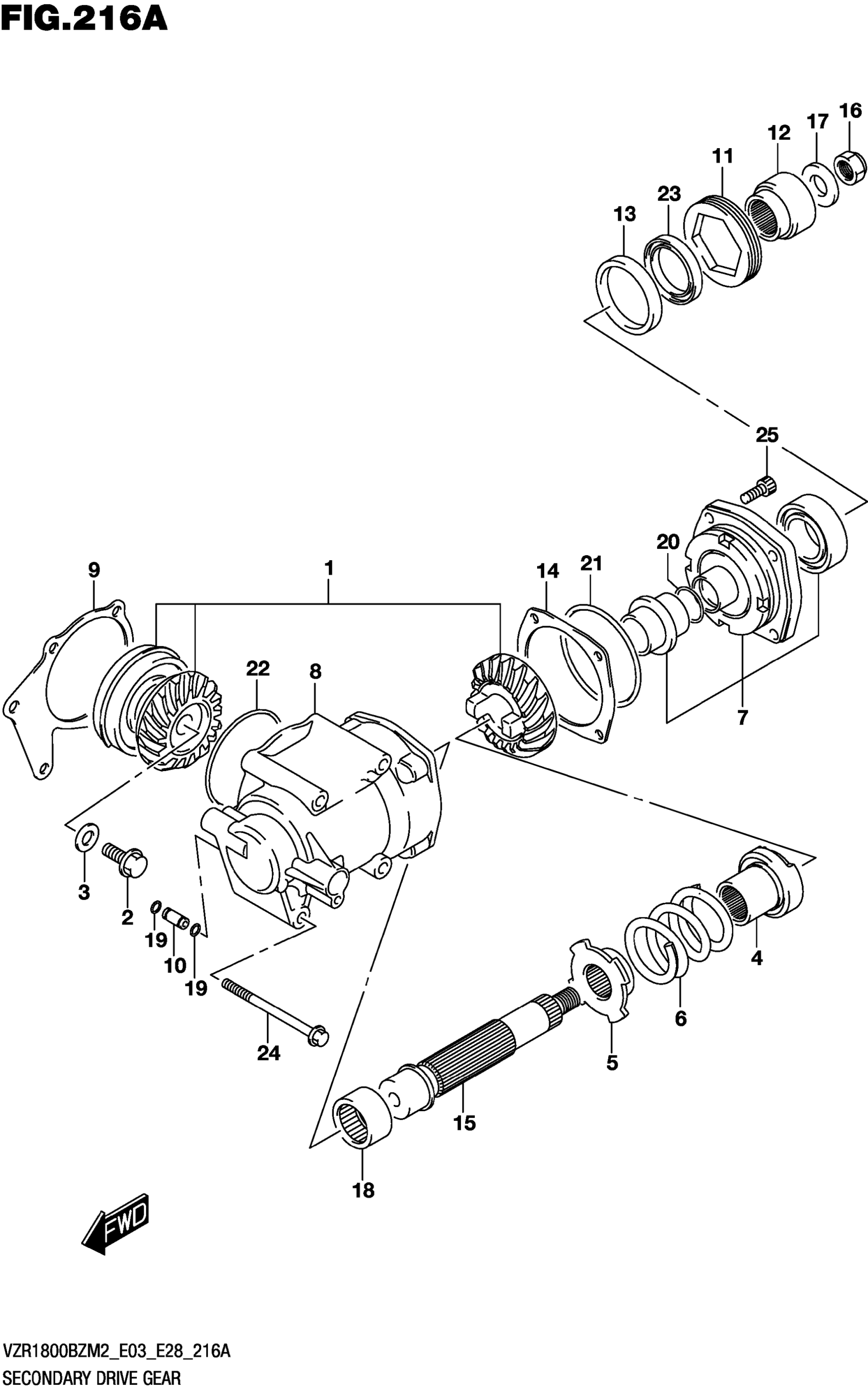

Suzuki VZR1800BZM2 (2022) SECONDARY DRIVE GEAR Diagram
