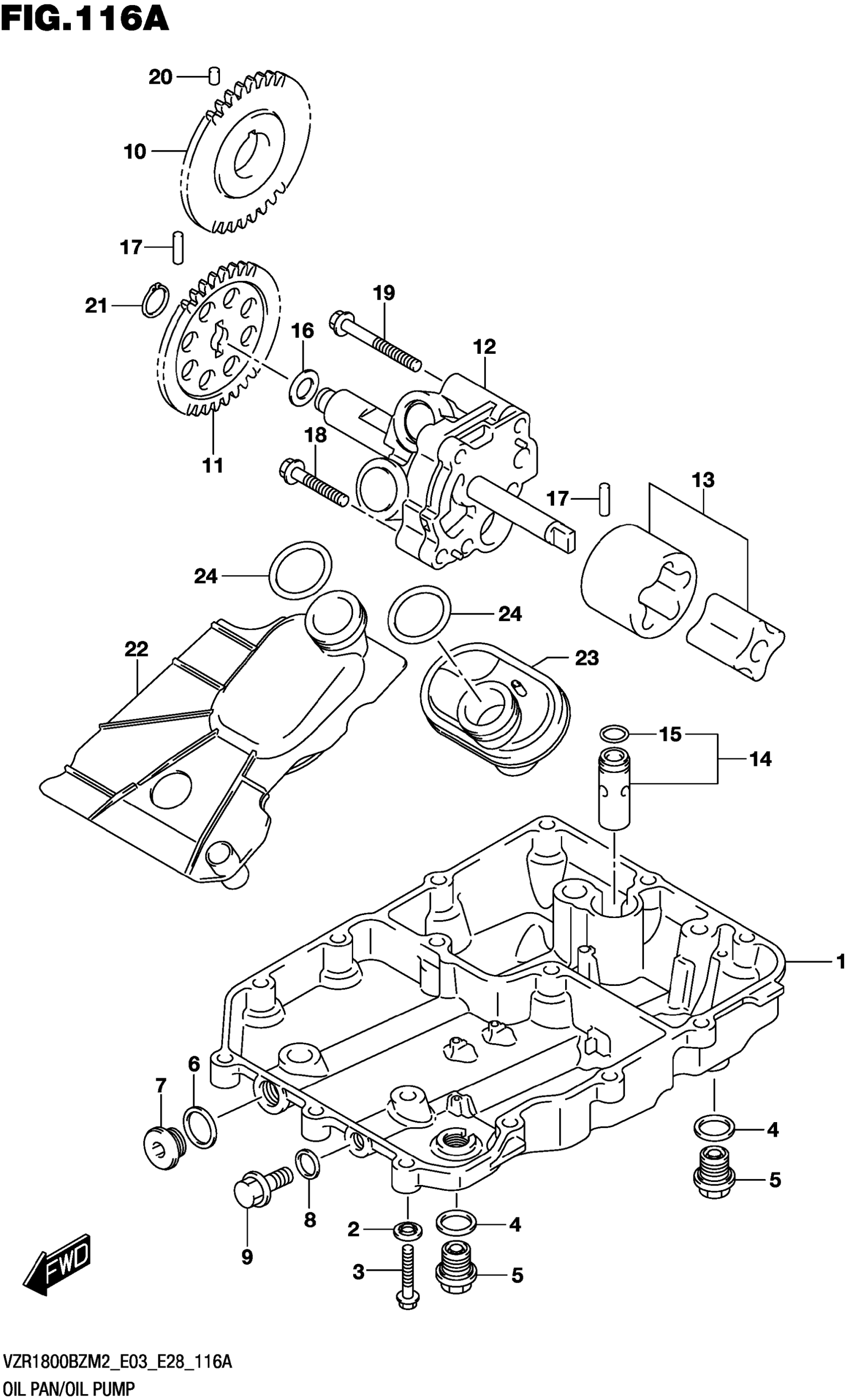

Suzuki VZR1800BZM2 (2022) OIL PAN/OIL PUMP Diagram

#

Description
Price

1

PAN,OIL

11511-48G01

$319.08

2

GASKET (5.8X13X1.2)

09168-06023

$2.35

3

BOLT

01547-0630A

$2.32

4

GASKET (13.8X18.8X4.8)

09168-14002

$2.26

5

PLUG (14X20)

09247-14036

$6.17

6

GASKET (16X22X2)

09168-16002

$1.91

7

PLUG (16X8)

09248-16012

$4.64

8

GASKET (10X14X3.6)

09168-10002

$2.13

9

PLUG (10X12)

09247-10008

$1.97

10

GEAR,OIL PUMP DRIVE (NT:40)

16321-48G00

Unavailable

11

GEAR,OIL PUMP DRIVEN (NT:36)

16331-48G00

Unavailable

12

PUMP ASSY,ENGINE OIL

16400-48G01

$259.45

13

ROTOR SET,OIL PUMP

16410-48G00

$63.20

14

VALVE ASSY,OIL RELIEF (7K)

16440-24F00

$50.04

15

.O-RING (D:1.9,ID:13)

09280-13004

$2.17

16

SHIM (10X18X0.5)

09181-10158

$1.97

17

PIN (4X15.8)

09261-04009

$1.56

18

BOLT

01547-0635A

$2.30

19

.BOLT

01547-0655A

$2.42

20

PIN

04221-04069

$2.12

21

CIRCLIP

08331-31109

$1.78

22

STRAINER,ENGINE OIL FR

16530-48G01

$43.20

23

STRAINER,ENG OIL RR

16520-48G01

$32.87

24

.O-RING (D:3.7,ID:21.7)

09280-22016

$5.58
