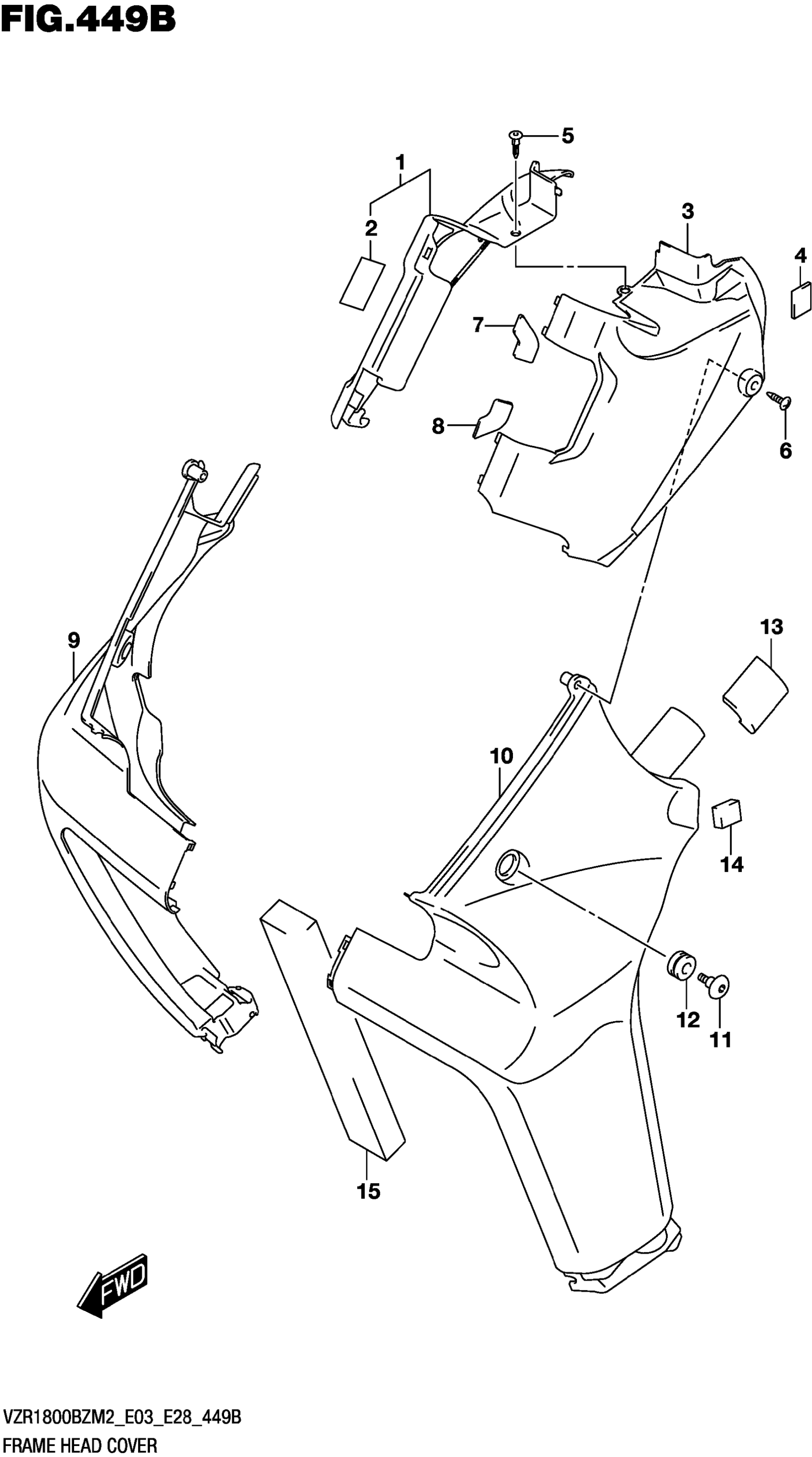

Suzuki VZR1800BZM2 (2022) FRAME HEAD COVER Diagram

#

Description
Price

1-1

COVER,FRAME HEAD RH (RED) | BODY COLOR:AV4

47350-48G50-YYG

$237.57

1-2

COVER,FRAME HEAD RH (BLACK) | BODY COLOR:KEL

47350-48G50-YVB

$324.78

2

.PROTECTOR (35X60)

89445-61J00

$11.18

3-1

COVER,FRAME HEAD LH (RED) | BODY COLOR:AV4

47361-48G50-YYG

$257.85

3-2

COVER,FRAME HEAD LH (BLACK) | BODY COLOR:KEL

47361-48G50-YVB

Unavailable

4

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.12

5

CLIP

09409-06328

$2.92

6

SCREW

03541-0516A

$1.37

7

TAPE,HEAD COVER UPPER

47352-48G00

Unavailable

8

TAPE,HEAD COVER LOWER

47353-48G01

Unavailable

9-1

COVER,FRAME BODY UP RH (RED) | BODY COLOR:AV4

47551-48G50-YYG

$321.02

9-2

COVER,FRAME BODY UP RH (BLACK | BODY COLOR:KEL

47551-48G50-YVB

$360.42

10-1

COVER,FRAME BODY UP LH (RED) | BODY COLOR:AV4

47561-48G50-YYG

$349.88

10-2

COVER,FRAME BODY UP LH (BLACK | BODY COLOR:KEL

47561-48G50-YVB

$360.42

11

SCREW (6X20)

09139-06126

$3.65

12

CUSHION (9X18X9.5)

09320-09016

$1.97

13

CUSHION This part replaces 44281-29C00.

63191-25C00

$2.88

14

CUSHION This part replaces 17129-16F00.

17798-39G00

$6.12

15

CUSHION,FRAME BODY COVER RH

47552-48G00

$23.15
