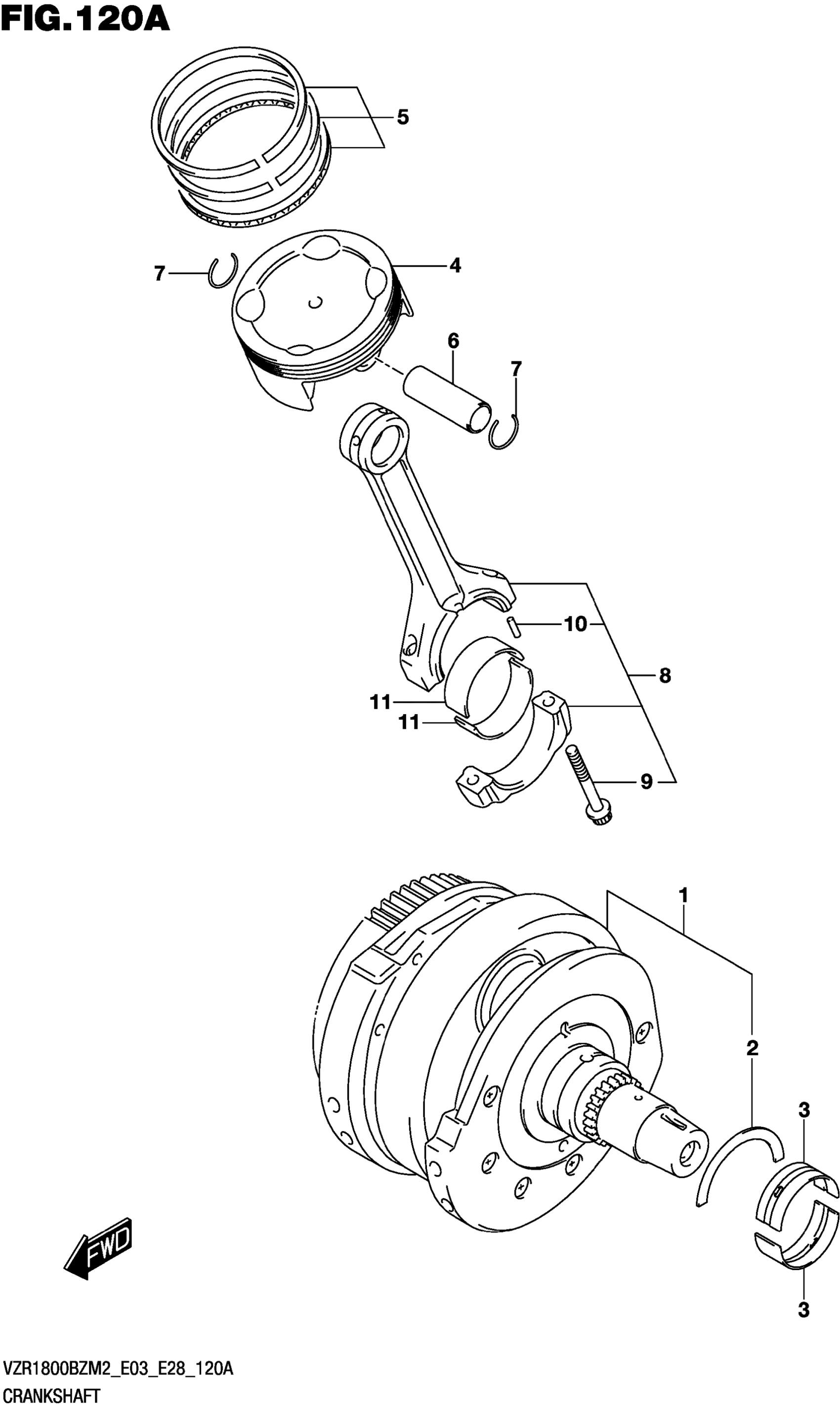

Suzuki VZR1800BZM2 (2022) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET (NT:55)

12000-48841

$2,264.60

2-1

.WASHER,CRANK THRUST

12228-48G00-0A0

$14.98

2-2

.WASHER,CRANK THRUST

12228-48G00-0B0

Unavailable

2-3

.WASHER,CRANK THRUST

12228-48G00-0C0

$14.98

2-4

.WASHER,CRANK THRUST

12228-48G00-0D0

Unavailable

2-5

.WASHER,CRANK THRUST

12228-48G00-0E0

$14.98

2-6

.WASHER,CRANK THRUST

12228-48G00-0F0

Unavailable

3-1

BEARING,CRANKSHAFT

12229-48G10-0A0

$32.55

3-2

BEARING,CRANKSHAFT

12229-48G10-0B0

$32.55

3-3

BEARING,CRANKSHAFT

12229-48G10-0C0

$31.38

3-4

BEARING,CRANKSHAFT

12229-48G10-0D0

$32.55

3-5

BEARING,CRANKSHAFT

12229-48G10-0E0

$32.55

4

PISTON

12111-48G00-0F0

$369.45

5

RING SET,PISTON

12140-48G00

$149.10

6

PIN,PISTON

12151-48G00

Unavailable

7

CIRCLIP

09381-23003

$1.52

8

CONNROD ASSY

12160-48G00

Unavailable

9

.BOLT,CONNROD

12163-06G00

$23.55

10

PIN (4X13.8)

04221-04089

$1.10

11-1

BEARING,CRANK PIN

12164-48G00-0A0

$24.93

11-2

BEARING,CRANK PIN

12164-48G00-0B0

$24.46

11-3

BEARING,CRANK PIN

12164-48G00-0C0

$24.46

11-4

BEARING,CRANK PIN

12164-48G00-0D0

$24.93
