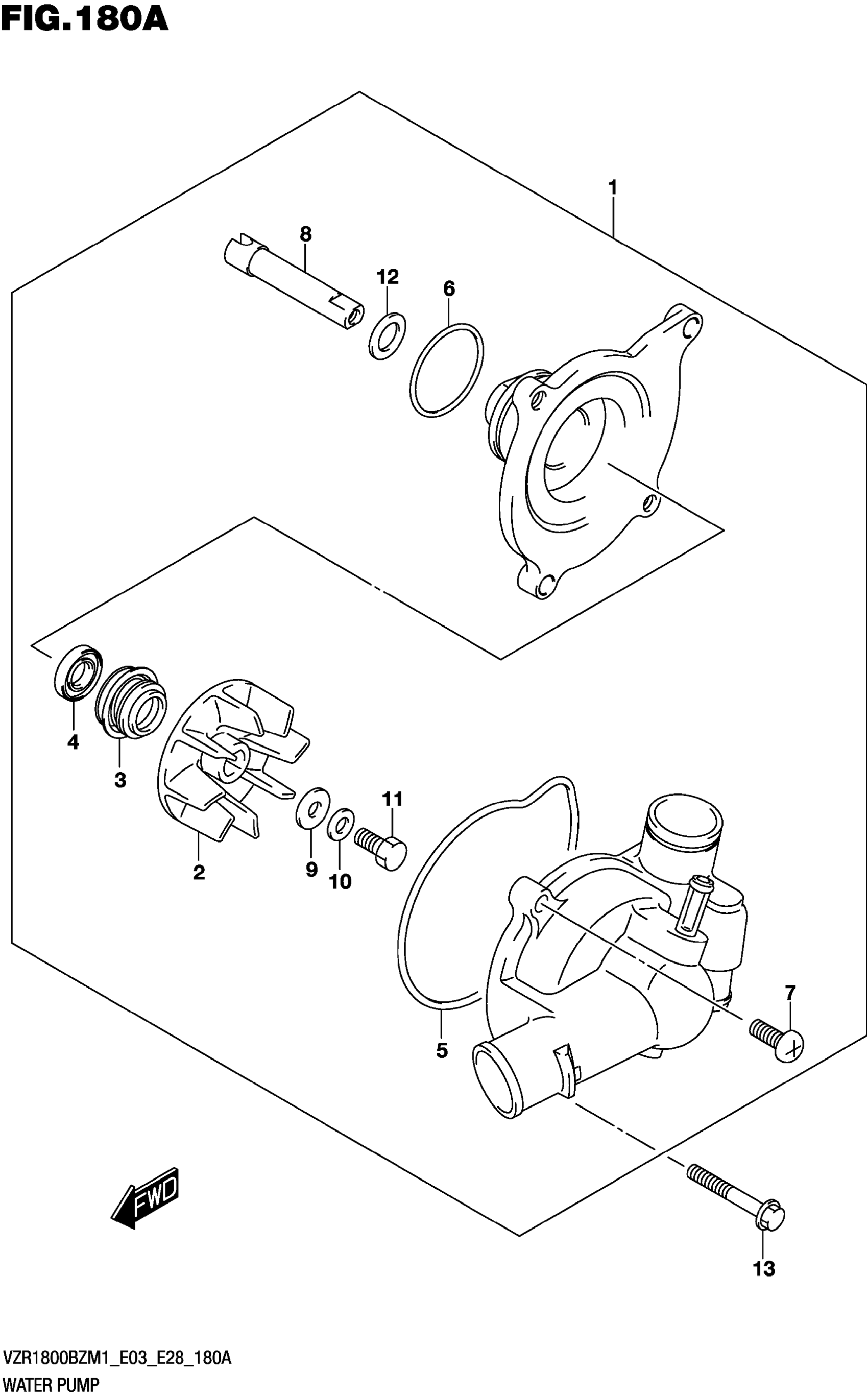

Suzuki VZR1800BZM1 (2021) WATER PUMP Diagram

#

Description

Price

1

PUMP ASSY,WATER

17400-48G01-000

Unavailable

2

.IMPELLER

17491-17E01-000

Unavailable

3

.SEAL,WATER PUMP SHAFT MECH

17470-02F11-000

Unavailable

4

.SEAL,OIL (10X21X5)

17461-48G00-000

Unavailable

5

.O RING

17418-33401-000

Unavailable

6

.O RING

17435-33400-000

Unavailable

7

.SCREW

02112-0616A-000

Unavailable

8

.SHAFT,WATER PUMP

17511-48G00-000

Unavailable

9

.GASKET (6X15X2.2)

09168-06025-000

Unavailable

10

.WASHER

09164-06006-000

Unavailable

11

.BOLT (6X13)

09100-06099-000

Unavailable

12

.WASHER

17432-07G00-000

Unavailable

13

BOLT

01547-0635A-000

Unavailable
