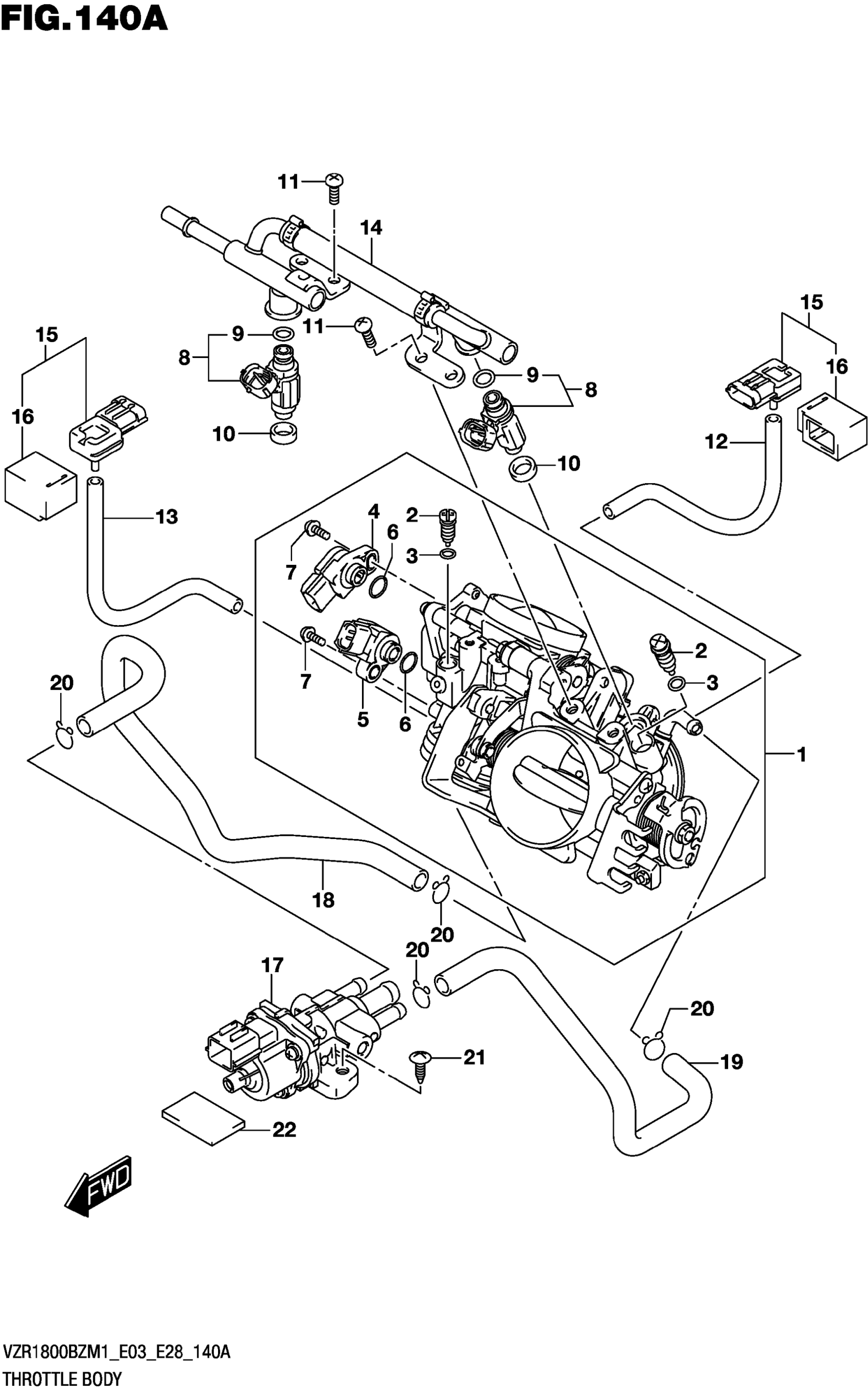

Suzuki VZR1800BZM1 (2021) THROTTLE BODY (E03,E28) Diagram

#

Description

Price

1

BODY ASSY,THROTTLE

13405-48G21-000

Unavailable

2

.ADJUSTER

13269-48G00-000

Unavailable

3

.O RING

13521-29FA0-000

Unavailable

4

.SENSOR ASSY

13580-29G00-000

Unavailable

5

.SENSOR ASSY

13580-48G00-000

Unavailable

6

.O RING

13575-29G01-000

Unavailable

7

.SCREW

13605-02F00-000

Unavailable

8

INJECTOR ASSY

15710-48G00-000

Unavailable

9

.O-RING

15717-58B00-000

Unavailable

10

SEAL

15722-29G00-000

Unavailable

11

SCREW

13602-06148-000

Unavailable

12

HOSE

13683-48G01-000

Unavailable

13

HOSE

13683-48G11-000

Unavailable

14

PIPE ASSY,DELIVERY

15730-48G01-000

Unavailable

15

SENSOR,AIR PRESSURE

15630-29G10-000

Unavailable

16

.COVER

15625-29G00-000

Unavailable

17

VALVE,ISC

18117-48G00-000

Unavailable

18

HOSE,ISC VALVE,R

13697-48G01-000

Unavailable

19

HOSE,ISC VALVE,L

13698-48G01-000

Unavailable

20

CLIP

09401-13102-000

Unavailable

21

SCREW

03111-0625A-000

Unavailable

22

CUSHION (25X35X4)

44612-13600-000

Unavailable
