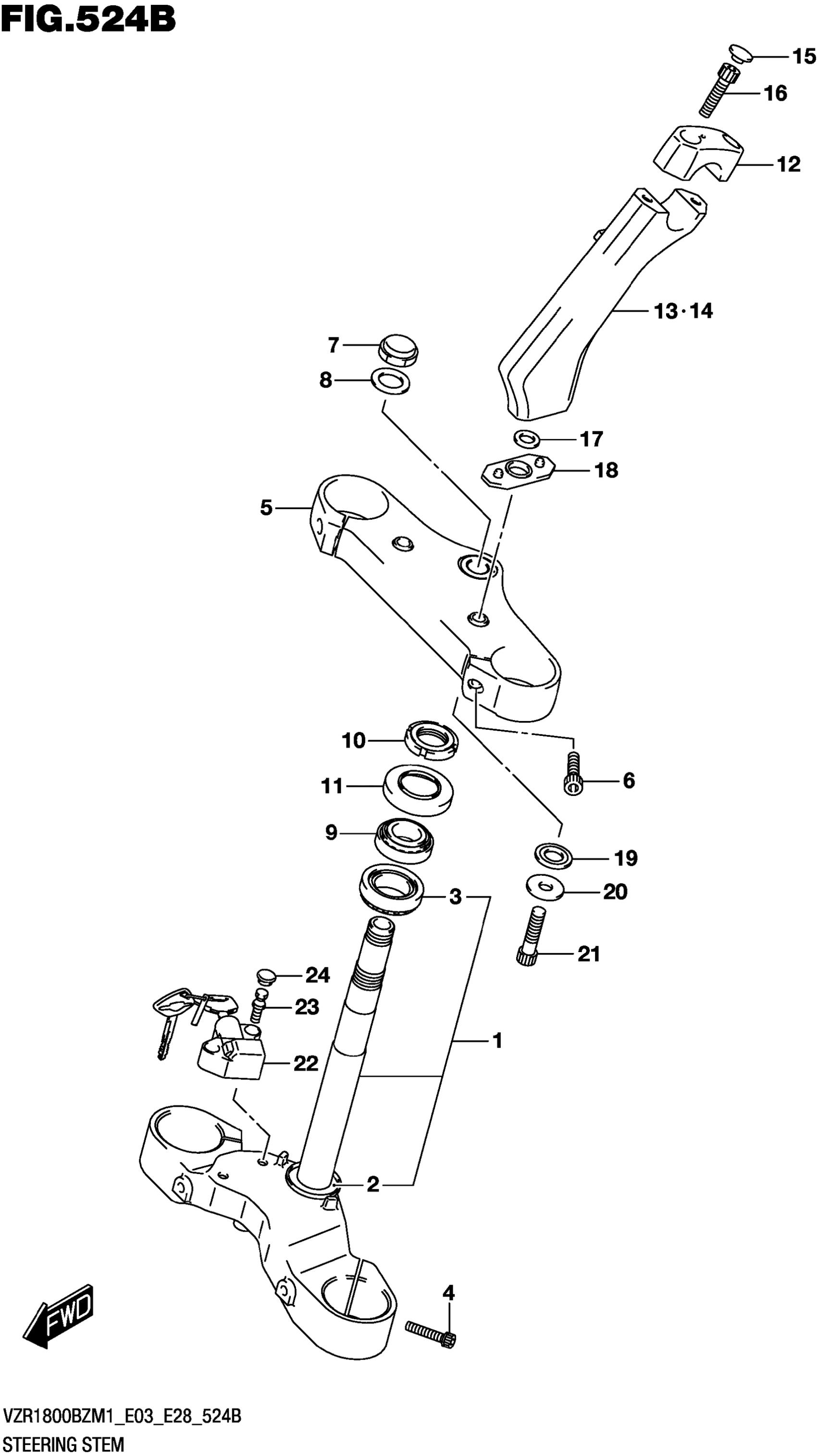

Suzuki VZR1800BZM1 (2021) STEERING STEM Diagram

#

Description

Price

1

BRACKET,UNDER

51410-48G30-000

Unavailable

2

.SEAL,STEERING LOWER (30.1X56 | 4)

51644-12C00-000

Unavailable

3

.BEARING (30X55X17)

09265-30020-000

Unavailable

4

BOLT (8X40)

51328-44G10-000

Unavailable

5

BRACKET,UPPER

51311-48G30-000

Unavailable

6

BOLT

51321-44G00-000

Unavailable

7

NUT,CAP

51353-24B00-000

Unavailable

8

WASHER

51356-48G30-000

Unavailable

9

BEARING (25X47X15)

09265-25038-000

Unavailable

10

NUT,STEERING STEM

51631-31F00-000

Unavailable

11

SEAL,DUST

51643-40503-000

Unavailable

12

HOLDER,HANDLE

56211-48G30-000

Unavailable

13

HOLDER,HANDLE RH

56224-48G30-000

Unavailable

14

HOLDER,HANDLE LH

56225-48G30-000

Unavailable

15

CAP (OD:14.5)

09250-06004-000

Unavailable

16

BOLT (8X40)

51328-44G10-000

Unavailable

17

WASHER

51354-48G00-000

Unavailable

18

RUBBER,HANDLE HOLDER

56245-48G00-000

Unavailable

19

RUBBER,HANDLE LOWER

56245-39G20-000

Unavailable

20

WASHER

51355-48G00-000

Unavailable

21

BOLT

51226-48G00-000

Unavailable

22

LOCK SET,STEERING

51900-48810-000

Unavailable

23

SCREW,STEERING LOCK

51925-48G00-000

Unavailable

24

PLUG,STEERING LOCK

51926-48G00-000

Unavailable
