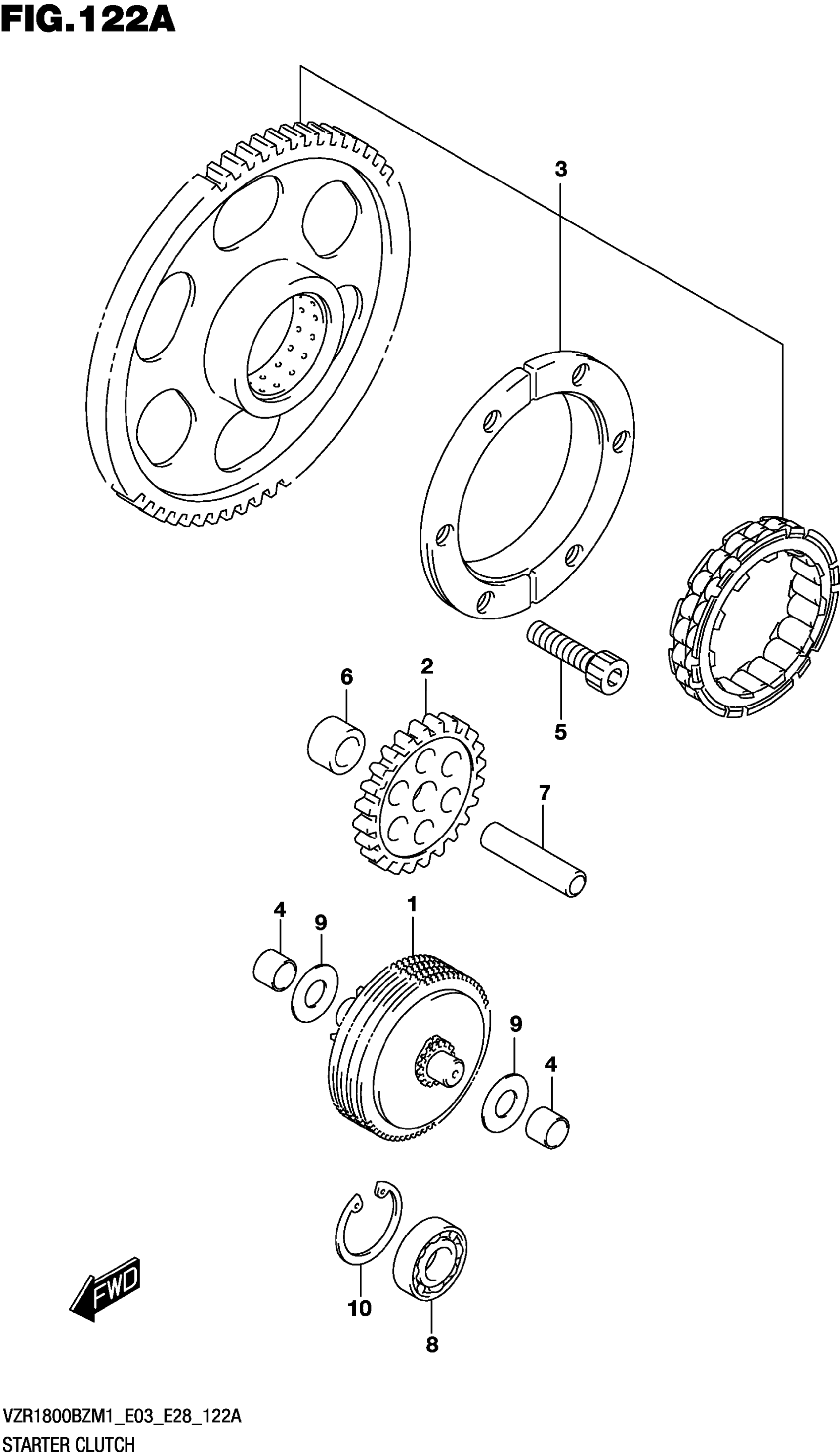

Suzuki VZR1800BZM1 (2021) STARTER CLUTCH Diagram

#

Description

Price

1

LIMITER ASSY,START ID GR NO.1

12600-48G01-000

Unavailable

2

GEAR,STARTER IDLE NO.2 (NT:27

12612-06G00-000

Unavailable

3

CLUTCH SET,STARTER (NT:80)

12600-48820-000

Unavailable

4

BUSH,LIMITER GEAR SHAFT

12618-31G00-000

Unavailable

5

BOLT (8X16)

09106-08190-000

Unavailable

6

SPACER (12.5X19X12.5)

09180-12138-000

Unavailable

7

PIN (8X12X45.5)

09206-12006-000

Unavailable

8

BEARING (12X28X8)

09262-12001-000

Unavailable

9

WASHER

08211-10221-000

Unavailable

10

CIRCLIP

08331-41289-000

Unavailable
