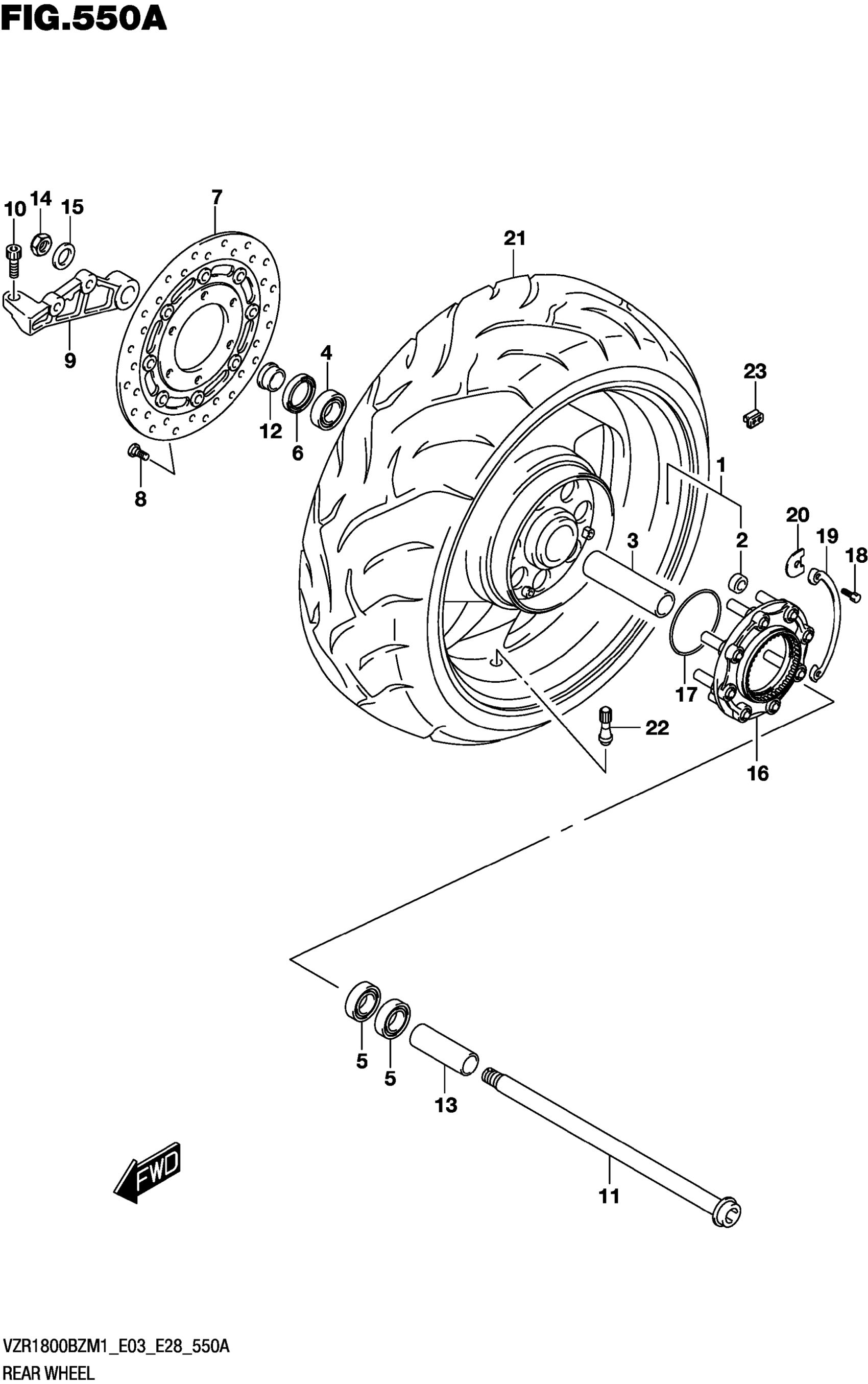

Suzuki VZR1800BZM1 (2021) REAR WHEEL Diagram

#

Description
Price

1

WHEEL,RR (BLACK)

64111-48G10-019

$1,764.03

2

.BUSH (12X41X34)

09319-12019-000

Unavailable

3

SPACER,REAR WHEEL BEARING

64731-48G00-000

Unavailable

4

BEARING (25X52X15)

09262-25186-000

Unavailable

5

BEARING,REAR WHEEL,L

08143-6205B-000

Unavailable

6

OIL SEAL (32X52X7)

09285-32004-000

Unavailable

7

DISC,RR BRAKE

69210-10F60-000

Unavailable

8

BOLT (8X21)

09106-08160-000

Unavailable

9

BRACKET,REAR CALIPER

69721-48G10-000

Unavailable

10

BOLT (12X40)

09103-12109-000

Unavailable

11

AXLE,REAR

64711-48G00-000

Unavailable

12

SPACER,REAR AXLE RH

64741-48G00-000

Unavailable

13

SPACER,REAR AXLE LH

64772-48G00-000

Unavailable

14

NUT

64721-13K00-000

Unavailable

15

WASHER (22X35X2)

09160-22081-000

Unavailable

16

JOINT ASSY,REAR HUB DRIVEN

64680-48G00-000

Unavailable

17

O RING (D:2.4,ID:79.8)

09280-80001-000

Unavailable

18

BOLT (6X16)

09119-06049-000

Unavailable

19

WASHER,REAR HUB DRIVEN JOINT

64679-48G00-000

Unavailable

20

WASHER,THRUST

64677-48G10-000

Unavailable

21

TIRE,REAR (240/40R18M/C 79V)

65110-48G01-000

Unavailable

22

VALVE ASSY,WHEEL RIM (TR412)

43130-24A00-000

Unavailable

23-1

BALANCER,WHEEL NO.1 (10G)

55411-22H00-000

Unavailable

23-2

BALANCER,WHEEL NO.2 (20G)

55412-22H00-000

Unavailable

23-3

BALANCER,WHEEL NO.3 (30G)

55413-22H00-000

Unavailable
