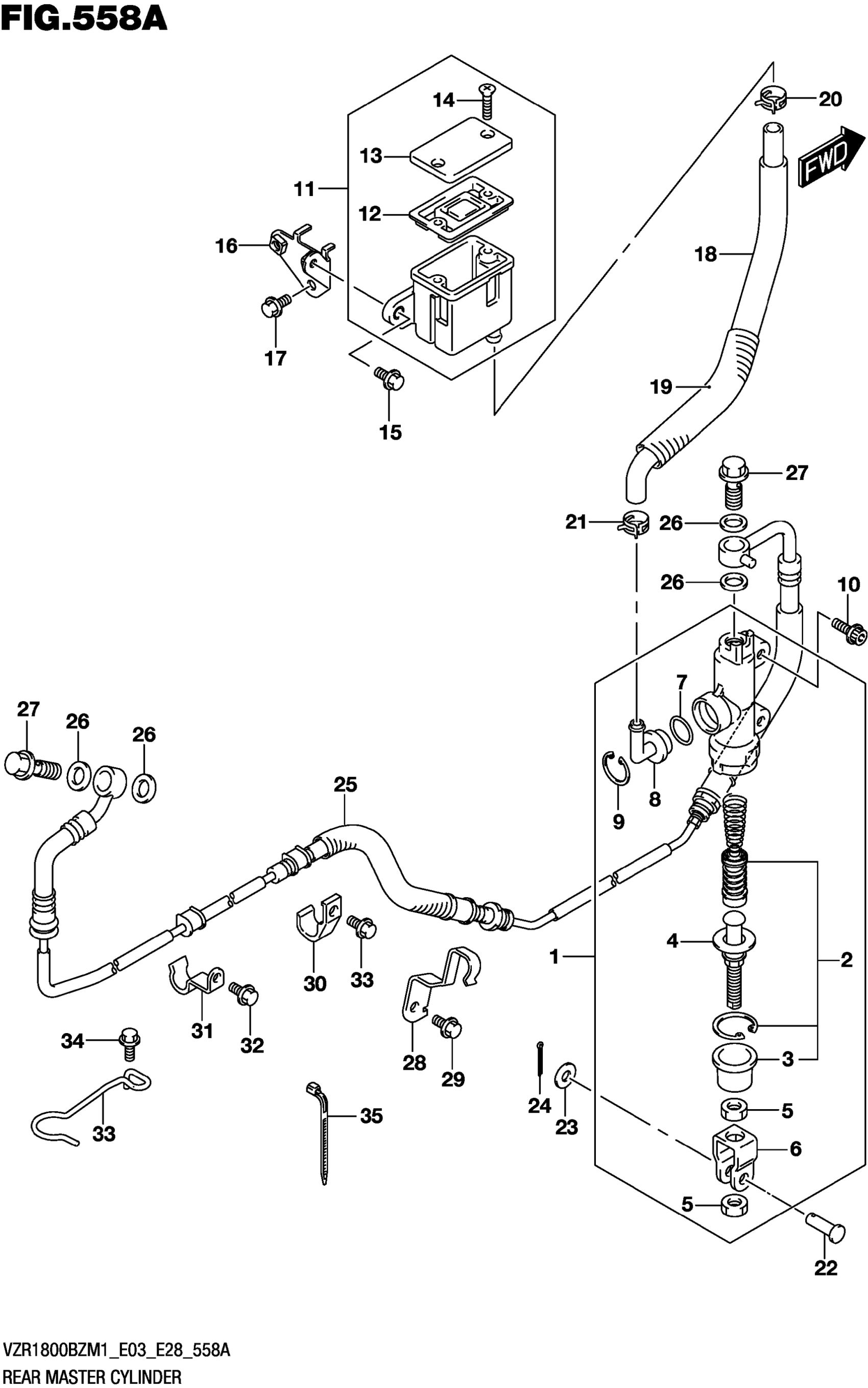

Suzuki VZR1800BZM1 (2021) REAR MASTER CYLINDER Diagram

#

Description

Price

1

CYLINDER ASSY,REAR MASTER

69600-48G00-000

Unavailable

2

.PISTON/CUP SET

69600-34820-000

Unavailable

3

..BOOT

69691-00A00-000

Unavailable

4

.ROD,PUSH

69670-44B00-000

Unavailable

5

.NUT

69693-05A00-000

Unavailable

6

.YOKE

69692-19A00-000

Unavailable

7

.O RING

69686-34200-000

Unavailable

8

.CONNECTOR

69672-00B20-000

Unavailable

9

.CIRCLIP

69674-00B20-000

Unavailable

10

BOLT

07120-0625A-000

Unavailable

11

TANK ASSY,REAR RESERVOIR

69740-48G00-000

Unavailable

12

.DIAPHRAGM

59667-04700-000

Unavailable

13

.CAP

59669-05D00-000

Unavailable

14

.SCREW

69689-04A00-000

Unavailable

15

BOLT

01547-0612A-000

Unavailable

16

BRACKET,RR RESERVOIR TANK

69750-48G00-000

Unavailable

17

BOLT

01550-0612A-000

Unavailable

18

HOSE,RR RESERVOIR TANK

69730-48G00-000

Unavailable

19

HEATSHIELD,RR RSVR TANK HOSE

69732-48G01-000

Unavailable

20

CLIP (ID:13.2)

09401-13417-000

Unavailable

21

CLIP (ID:12)

09401-12404-000

Unavailable

22

PIN (6X18.2)

09200-06068-000

Unavailable

23

WASHER

08322-0106A-000

Unavailable

24

PIN

04111-2015A-000

Unavailable

25

HOSE ASSY,REAR BRAKE

69400-48G21-000

Unavailable

26

WASHER (10X15X1.5)

09161-10009-000

Unavailable

27

UNION (10X1.25X22)

09360-10062-000

Unavailable

28

CLAMP,RR BRAKE HOSE NO.3

69268-48G00-000

Unavailable

29

BOLT

01550-0612A-000

Unavailable

30

CLAMP,RR BRAKE HOSE

69268-29G01-000

Unavailable

31

CLAMP,RR BRAKE PIPE

69269-48G00-000

Unavailable

32

BOLT

01547-0612A-000

Unavailable

33

GUIDE,RR BRAKE HOSE

69243-48G00-000

Unavailable

34

BOLT

01550-0612A-000

Unavailable

35

CLAMP (L:165)

09407-18402-000

Unavailable
