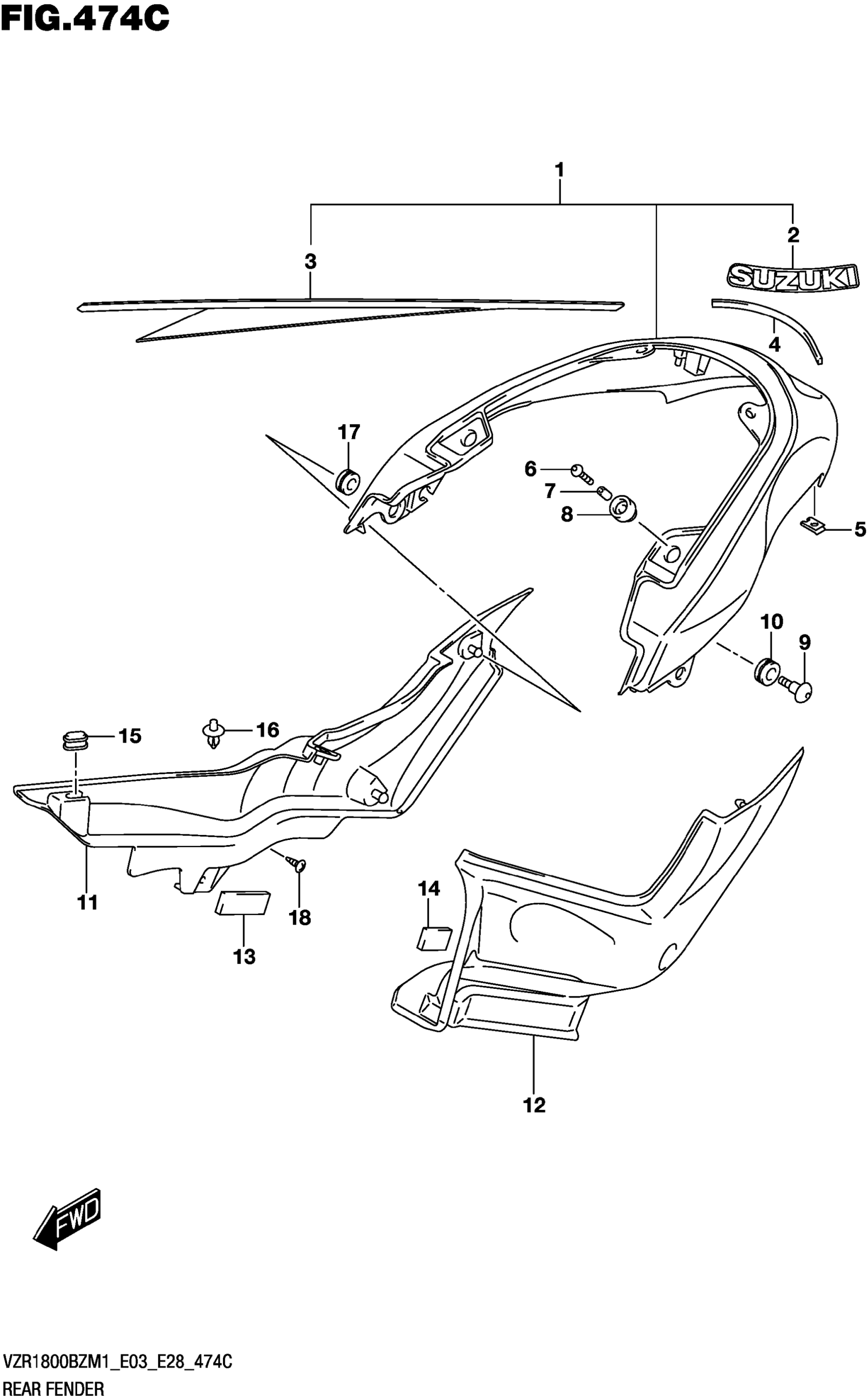

Suzuki VZR1800BZM1 (2021) REAR FENDER (SEE NOTE 1) 474C Diagram

#

Description
Price

1

FENDER,REAR (BLUE,BLACK) This part replaces 63110-48G80-KEL.

63110-48G81-KEL

$1,158.97

2

.EMBLEM,"SUZUKI" (BLUE,BLACK)

68161-44GA0-KEL

$9.33

3

.TAPE SET,REAR FENDER (BLACK, This part replaces 68170-48G00-CBH.

68170-48G01-CBH

$57.07

4

CUSHION,RR FENDER RR COVER

63117-39G00-000

Unavailable

5

NUT,COWL

94484-24F00-000

Unavailable

6

SCREW (6X16)

09139-06139-000

Unavailable

7

SPACER (6.5X10X9.4)

09180-06286-000

Unavailable

8

CUSHION

09320-10045-000

Unavailable

9

BOLT (6X20)

09139-06190-000

Unavailable

10

CUSHION (9X18X9.5)

09320-09016-000

Unavailable

11

COVER,RR FENDER RH (BLACK)

63171-48G51-YVB

$213.09

12

COVER,RR FENDER LH (BLACK)

63181-48G51-YVB

$250.68

13

CUSHION,FUEL PIPE

15439-76G00-000

Unavailable

14

CUSHION,FUEL LID

47376-20E00-000

Unavailable

15

CUSHION,FUEL TANK COVER

44276-29G01-000

Unavailable

16

CLIP (5.9X20.5)

09409-06314-000

Unavailable

17

.CUSHION (8X26X7)

09320-08514-000

Unavailable

18

SCREW

03541-0516A-000

Unavailable

19

COLOR:KEL=YVB(BLACK)/YSF(BLUE) | NOTE 1: FOR KEL

SPECIAL NOTE

Unavailable
