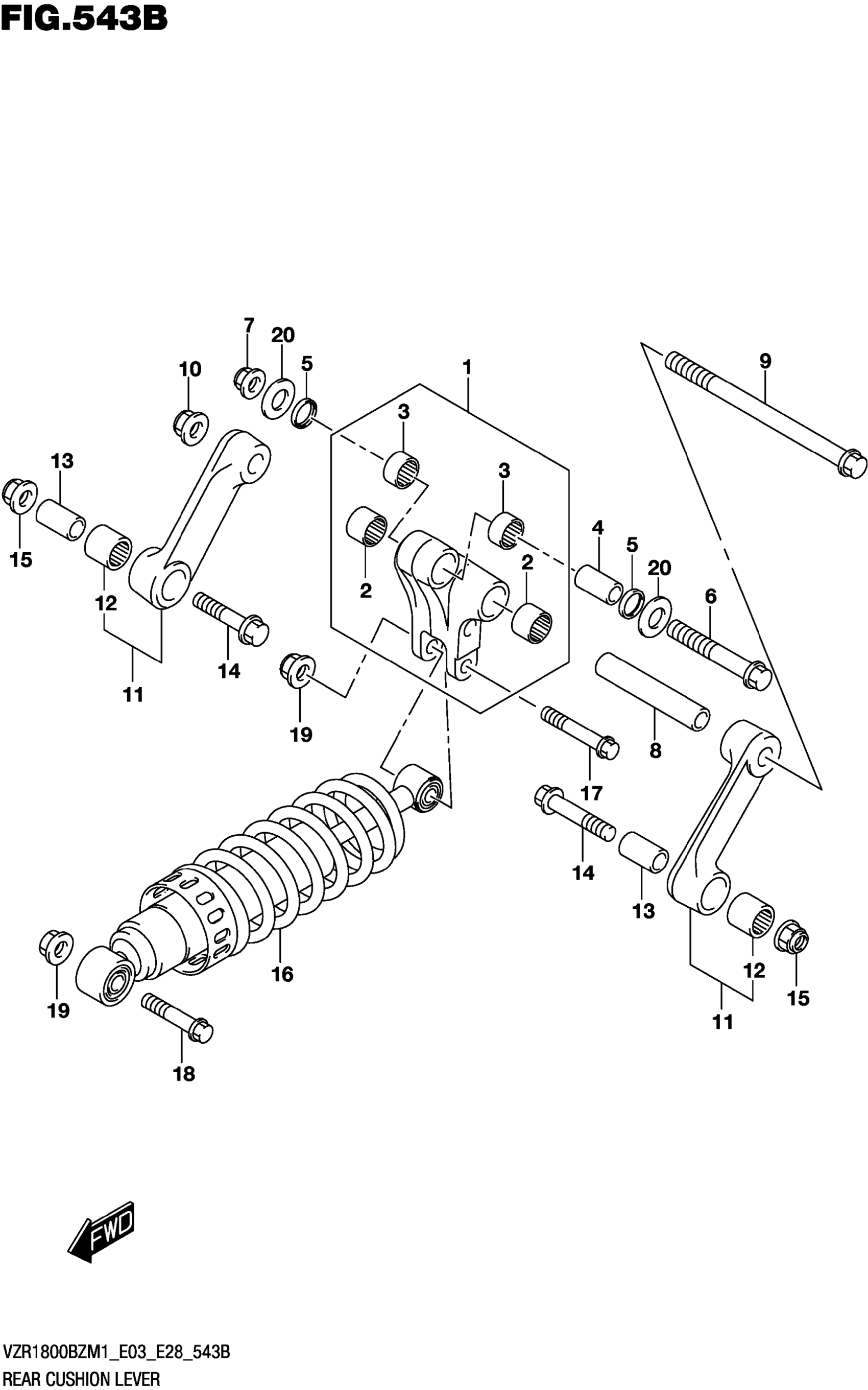

Suzuki VZR1800BZM1 (2021) REAR CUSHION LEVER Diagram

#

Description

Price

1

LEVER SET,RR CUSHION

62600-48871-000

Unavailable

2

.BEARING

09263-20116-000

Unavailable

3

.BEARING (20X26X14)

09263-20090-000

Unavailable

4

SPACER,RR CUSHION LEVER UPPER

62684-48G00-000

Unavailable

5

OIL SEAL (20X26X4)

09284-20003-000

Unavailable

6

BOLT,REAR CUSHION LEVER,FRONT

62658-33D00-000

Unavailable

7

NUT

08319-3114A-000

Unavailable

8

SPACER (14X20X102)

09180-14018-000

Unavailable

9

BOLT,RR CUSHION LEVER LOWER

62621-48G00-000

Unavailable

10

NUT

08319-3114A-000

Unavailable

11

ROD SET,RR CUSHION

62600-48881-000

Unavailable

12

.BEARING

09263-20116-000

Unavailable

13

SPACER (14X20X34)

09180-14014-000

Unavailable

14

BOLT (14X66)

09103-14016-000

Unavailable

15

NUT

08319-3114A-000

Unavailable

16

ABSORBER ASSY,RR SHOCK

62100-48GB1-000

Unavailable

17

BOLT,RR CUSHION LEVE,FRONT (1 | X65)

62658-01C60-000

Unavailable

18

BOLT (12X57)

09103-12042-000

Unavailable

19

NUT

09159-12056-000

Unavailable

20

WASHER

08211-14341-000

Unavailable
