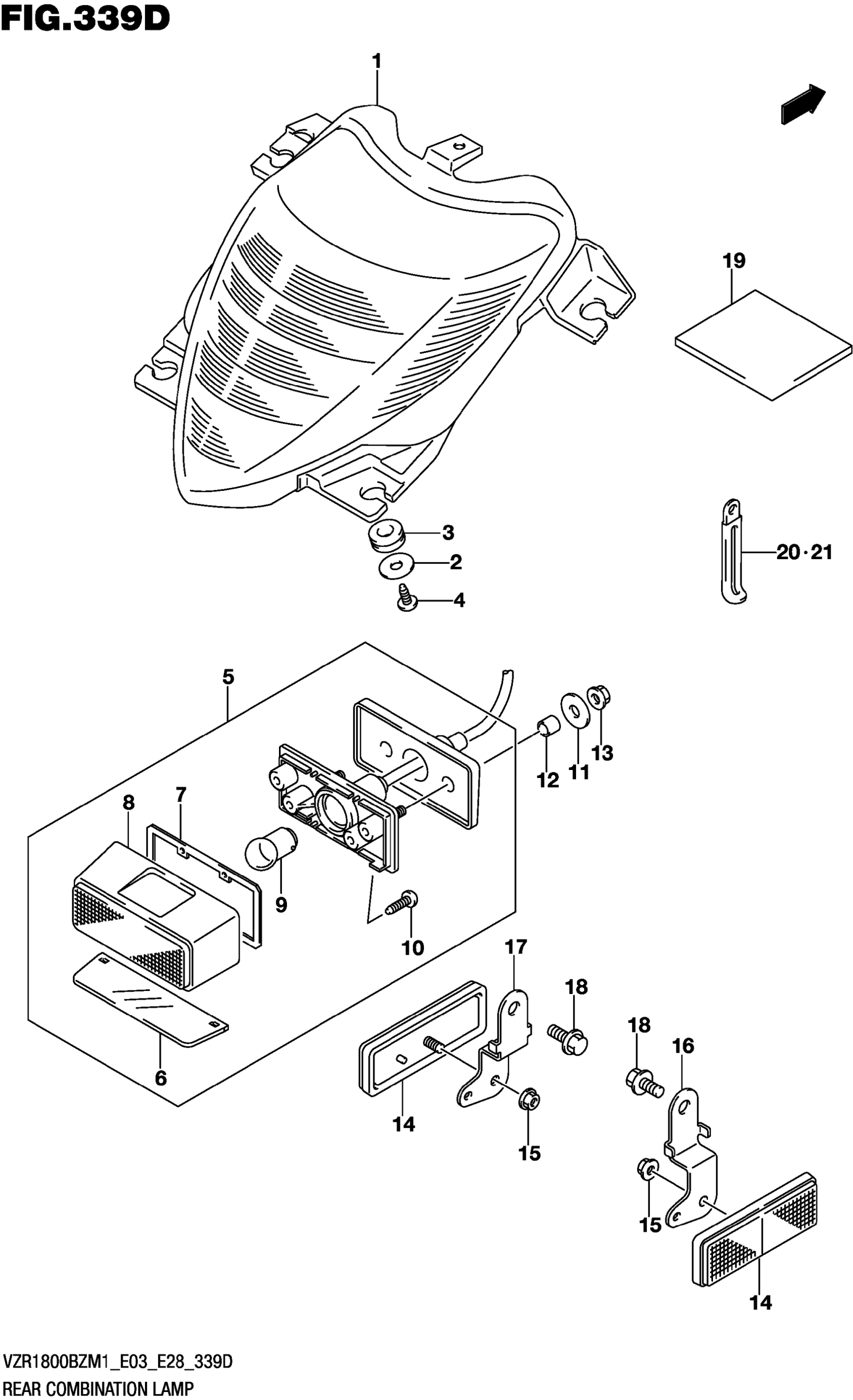

Suzuki VZR1800BZM1 (2021) REAR COMBINATION LAMP Diagram

#

Description

Price

1

LAMP ASSY,REAR COMB

35710-48G70-000

Unavailable

2

WASHER (5.5X20X1.2)

09160-05501-000

Unavailable

3

CUSHION,REAR COMB LAMP

09320-10073-000

Unavailable

4

SCREW

03541-0512A-000

Unavailable

5

LAMP ASSY,LICENSE

35910-41G02-000

Unavailable

6

.LENS,LICENSE

35912-41G01-000

Unavailable

7

.GASKET

35913-41G00-000

Unavailable

8

.COVER,LICENSE LAMP

35917-41G00-000

Unavailable

9

.BULB (12V5W)

09471-12140-000

Unavailable

10

.SCREW

03211-0416A-000

Unavailable

11

WASHER (6.5X20X1.2)

09160-06077-000

Unavailable

12

SPACER (6.5X9X8)

09180-06261-000

Unavailable

13

NUT (6X12)

08316-1006A-000

Unavailable

14

REFLECTOR ASSY,RR

35970-07F01-000

Unavailable

15

NUT

08316-1005A-000

Unavailable

16

BRACKET,REAR SIDE RR RH

35975-48G00-000

Unavailable

17

BRACKET,REAR SIDE RR LH

35976-48G00-000

Unavailable

18

SCREW

02162-0612A-000

Unavailable

19

CUSHION,HELMET BOX (60X60X3.0

92213-33G00-000

Unavailable

20

CLAMP

09404-10420-000

Unavailable

21

CLAMP (L:45)

09404-06429-000

Unavailable
