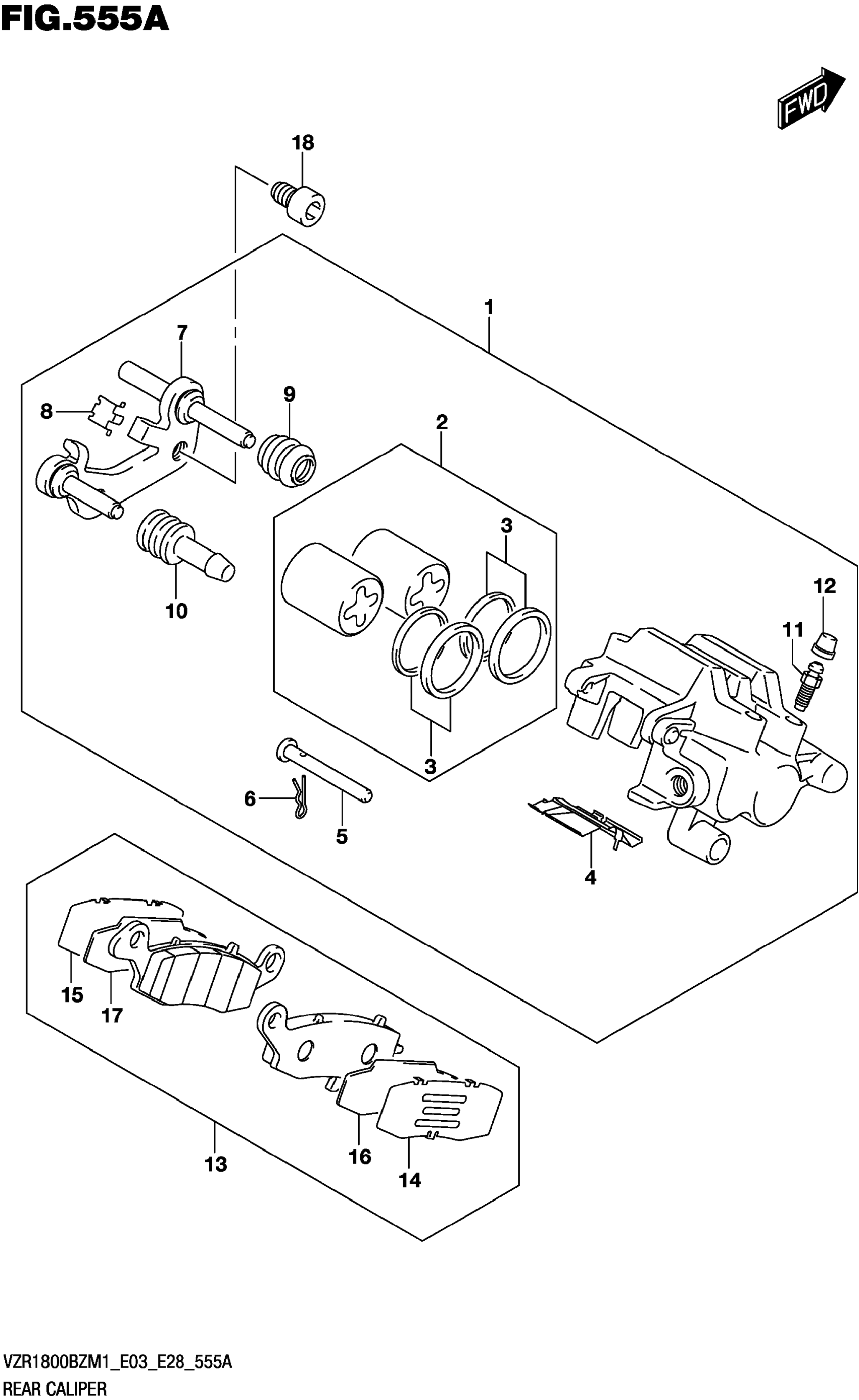

Suzuki VZR1800BZM1 (2021) REAR CALIPER Diagram

#

Description

Price

1

CALIPER ASSY,REAR

69100-01D40-999

$395.90

2

.PISTON SET

69100-01840-000

Unavailable

3

..SEAL SET,PISTON

59300-33841-000

Unavailable

4

.SPRING,PAD

69115-01D40-000

Unavailable

5

.PIN,PAD

69141-01D40-000

Unavailable

6

.CLIP,PAD PIN

69142-45000-000

Unavailable

7

.CARRIER,CALIPER

69150-01D40-000

Unavailable

8

.GUIDE,PAD

59116-33D00-000

Unavailable

9

.BOOT,AXLE

59112-44B00-000

Unavailable

10

.INSULATOR,AXLE

59113-01D00-000

Unavailable

11

.BLEEDER

59121-18410-000

Unavailable

12

.CAP,BLEEDER PLUG (M10X1)

55156-66310-000

Unavailable

13

PAD & SHIM SET

69100-01870-000

Unavailable

14

.SHIM,PAD

59171-33D00-000

Unavailable

15

.SHIM,PAD NO.2

59172-33D00-000

Unavailable

16

.INSULATOR NO.1

69171-01D40-000

Unavailable

17

.INSULATOR NO.2

69172-01D40-000

Unavailable

18

BOLT,10X20 (10X20)

09106-10093-000

Unavailable
